mobile concrete mixer machine/electric cement mixer/cement mixer machine

Click on the image to view the original image

Product：	views：11mobile concrete mixer machine/electric cement mixer/cement mixer machine
Branch：	HW
Type：	Electric Drum Concrete Mixer
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:42

Product Details

Overview

Quick Details

Charging Capacity:: 560L

Reclaiming capacity:: 350L

Mixing Power:: 15HP/18HP

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: JZC350

Motor Power:: 15Hp

Speed of Mixing Drum:: 14r/min

Water Supply Mode:: Water Tank

Working Cycle Period:: 2-3 Minutes

Discharge Way:: Automatic

Outline Dimension:: 2600*1700*2580

Product name:: Cocnrete Mixer

Name:: Mobile Portable Concrete Mixer

Color:: Alternative

Power type:: Diesel Engine Concrete Mixture Machine

Keywords:: Small Diesel Concrete Mixer

Model:: JZC350/JZC500

Weight:: 1950kg

Application:: Building Site

Type:: Electric Drum Concrete Mixer

Engine:: Water Cooling Diesel

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 200 Set/Sets per Month

Packaging & Delivery

Packaging Details: standard package for concrete mixer

Port: Qingdao,Shanghai,Nningbo,Dalian

mobile concrete mixer machine/electric cement mixer/cement mixer machine

Product Introduction

JZC series concrete mixers are diesel engine drive, different with the electric motors concrete mixer, they are unlimited by the work site and current support. Meanwhile, they are easily moved by human or semi-trailer.
JZC series concrete mixers are driven power by diesel engine, adopt Chinese CHANGFA engine;
Aggregate feeding by hydraulic or wire rope hoisting;
Install 2 or 4 tyres for the mixer, easily to be moved.

Technology Parameters

Model	JZC350W	JZC350H	JZC500H
Capacity of loading	560L		750L
Capacity of discharging	350L		500L
Capacity of water tank	110L		140L
Productivity	10~14m3/h		18~22m3/h
Power source	Diesel engine, single cylinder, water-cooled with battery starter
Power	11kw		16kw
Drum rotating speed	13r/min
Max. towing speed	20km/h		20km/h
Towing	Two-towing wheels	Two/Four-towing wheels
Dimensions	3100x2320x3070mm	3250x2240x3200mm	3750x2240x3800mm
Weight	1850kg	1790/1840kg	2050kg
Hopper lifting model	Wire rope Hoisting tipping hopper	Hydraulic tipping hopper

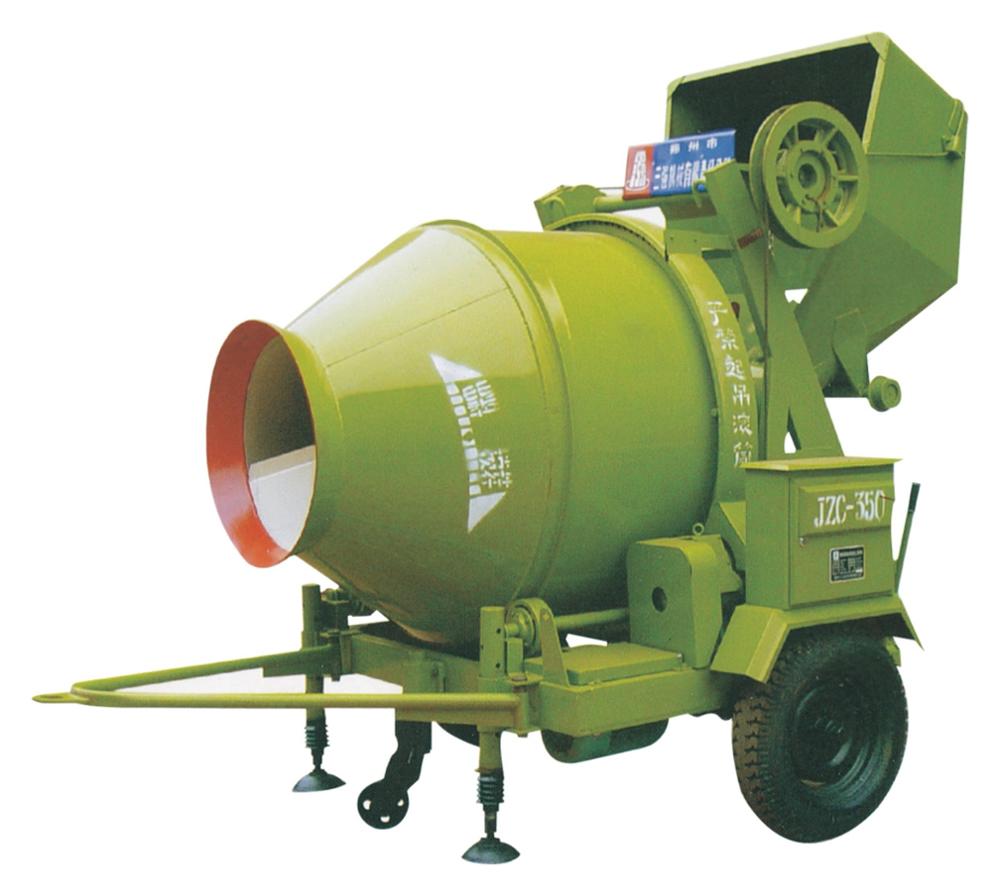

The real details photo
