Alibaba china new products vehicle mounted water well drill rigs/whatsapp:
+8613678678206

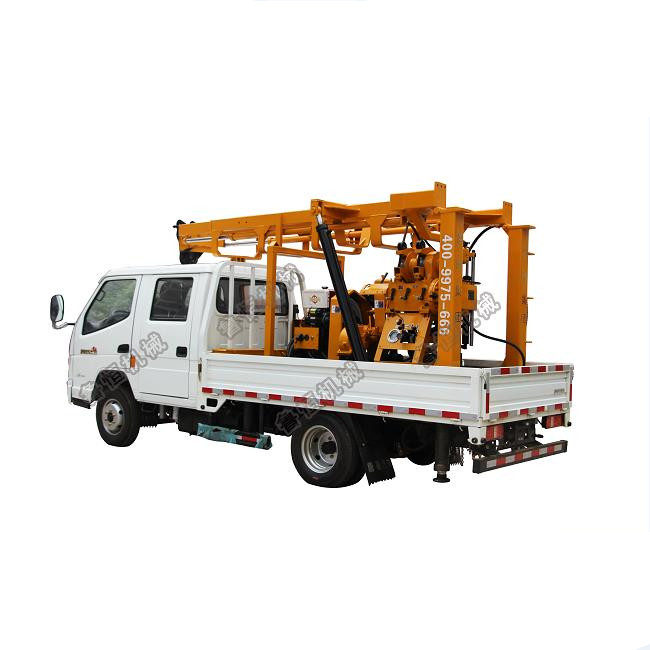

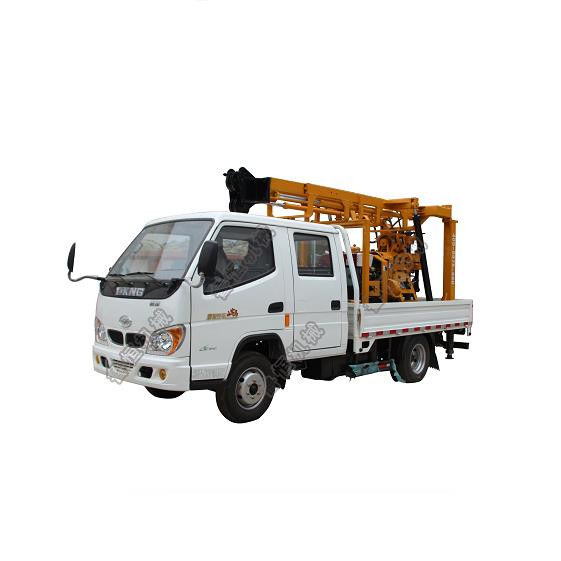

1.The xy-230 truck is a multi-purpose hydraulic shaft drill.
2. The chassis of the car is used as the chassis of the tang army, the drilling machine is a hydraulic transmission system hoist, the mud pump and other important accessories are installed on this chassis, the layout is reasonable and compact, the operation is simple.
3. Configure BW160 mud pump, high pressure, high flow, and ensure drilling depth and caliber.
4. The rig self-matching shift device can realize the back and forth movement of the rig"s main engine for easy operation of wellhead.
5. The rig tower is a hydraulic tower, and the rise and fall are all hydraulic operation, quick and convenient.
| Drilling depth | 230m | |
| Max open hole caliber | 300mm | |
| End hole caliber | 75mm | |
| Drill rod caliber | 60mm | |
| Drilling angle | 90°~75 | |
| Drill weight (without power) | 975kg | |
| Triangle conveyer belt | B950 x 4 B1700 x 3 | |
| Power | Diesel engine 22HP | |
| Spindle | ||
| spindle speed | 64, 128, 287, 557r/min | |
| Spindle stroke | 450mm | |
| Hoist | ||
| Max.lifting capacity | 2400kg | |
| Single line lifting speed | 0.41, 0.82, 1.64m/s | |
| Wirerope caliber | 13mm | |
| Wirerope length | 35m | |
| Reel diameter | 140mm | |
| Hug floodgate caliber | 260mm | |
| Hug folldgate belt width | 70mm | |
| Mud pump | ||
| Type | Horizontal single-urn twin-action | |
| Displacement | Diesel engine 170L/min | |
| Maximum pressure | 3Mpa | |
| Work pressure | 1.5Mpa | |
| Inlet pipe caliber | 40mm | |
| Outlet pipe caliber | 30mm | |
| Triangle conveyer belt | B1728mm | |
| Hydralic oil pump | ||
| Type | CBT-F-314 | |
| Triangle conveyer belt | B1100 X 1 | |
