Home > Products > C41-40KG Single with Base Plate Air Power Forging Hammer

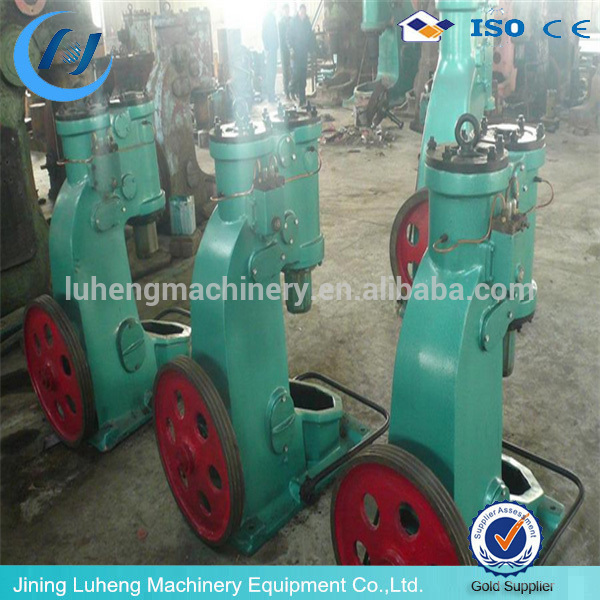

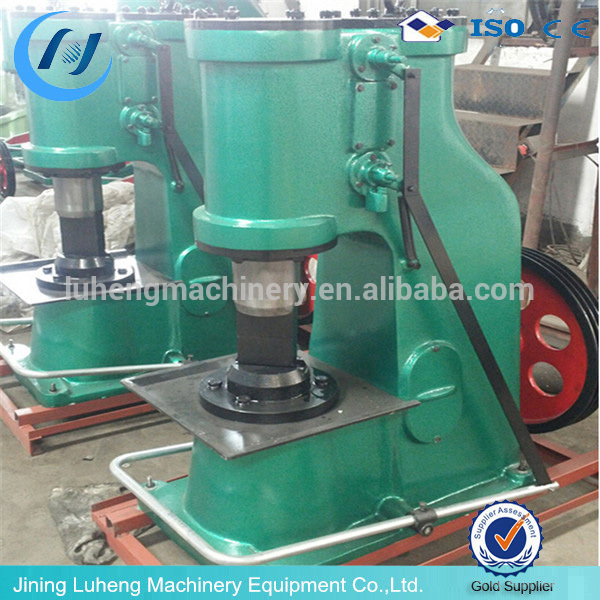

C41-40KG Single with Base Plate Air Power Forging Hammer

Click on the image to view the original image

Product：	views：19C41-40KG Single with Base Plate Air Power Forging Hammer
Branch：	Luheng
Type：	air hammer
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:42

Product Details

Overview

Quick Details

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: Luheng

Voltage:: 220V/380V

Power(W):: 7.5KW

Dimension(L*W*H):: 1600*950*1950mm

Weight:: 40kg

Certification:: ISO9001:2008

Warranty:: 1 Year

After-sales Service Provided:: Video technical support

Type:: air hammer

Attack energy(J)::: 1000

Work sector altitude(mm)::: 300

Attack number of times(min)::: 210

Electrical rotational speed (r.p.m)::: 1440

Malleable side steel length of side::: 65*65mm

Maximum striking capacity kj:: 0.26

Frequency n/m:: 250

COLOR:: Green

Warranty::: 1 year

Supply Ability

Supply Ability:: 10000 Set/Sets per Month

Packaging & Delivery

Packaging Details: Standard export packing

Port: Qingdao/Shanghai

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	5	To be negotiated

C41-40KG Single with Base Plate Air Power Forging Hammer

Product Instruction

This series of pneumatic hammer is small volume, low noise, simple structure, convenient operation, flexible motion, and handling convenient installation and maintenance.This machine is suitable for all kinds of free forging: such as upsetting, punching, bending, torsion, heat cutting, termination, etc.
Use open pad mold can undertake all kinds of die forging is widely used in hardware tools, medical equipment, gold and silver processing, manufacturing, agricultural machinery and copper tube factory, etc.

Product Features:

1.powered by compressed air, to meet the needs of production safety efforts percussion and vibration frequency can be controlled by adjusting the air pressure,

2. use of high-strength aluminum alloy, light weight, small size,

3.mechanism is simple, easy to damage.

Technology Parameters
