Home > Products > B87 Pneumatic Rock Breaker/Hand Concrete Crushing machine

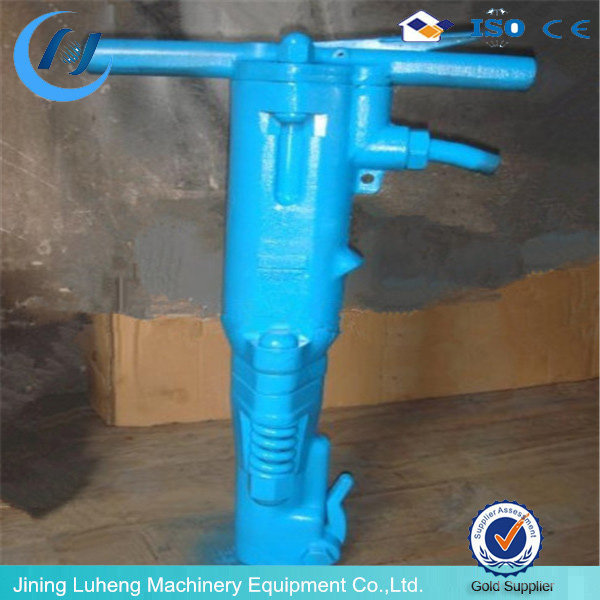

B87 Pneumatic Rock Breaker/Hand Concrete Crushing machine
Click on the image to view the original image
Product: views:10B87 Pneumatic Rock Breaker/Hand Concrete Crushing machine
Branch: Luheng
Type: Air Hammer
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 19:42
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Luheng
Model Number:
B87
Type:
Air Hammer
Average Air Consumption:
8cfm
Maximum Torque:
None(air Drill)
No-Load Speed:
Impact Hammer)
Model:
B87
length:
686 mm
weight:
39 kg
Air pressure:
0.63 Mpa
impacting frequency:
18hz
gas consumption:
55 l/s
Bit Head Size:
32*152mm
Color:
blue
Air pipe inner dia.:
19mm (3/4inch)
Impact power:
1.8+/- 10% KW
Supply Ability
Supply Ability:
10000 Set/Sets per Year
Packaging & Delivery

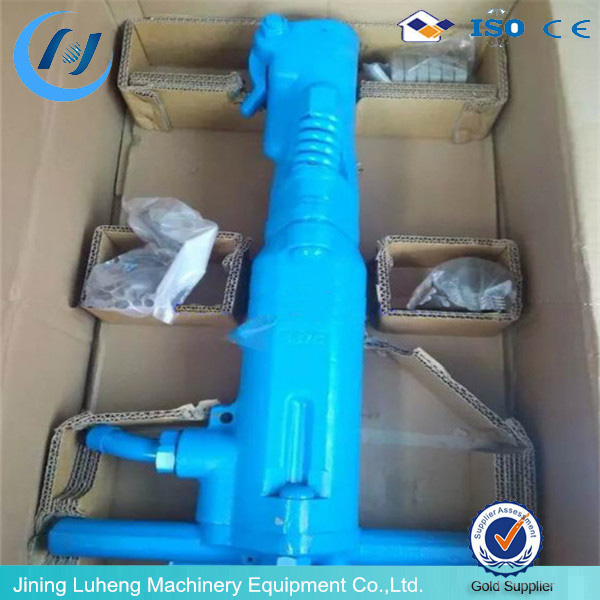

Packaging Details
wooden case
Port
Qingdao
Product Description

B87 Pneumatic Rock Breaker/Hand Concrete Crushing machine

Product Application

B47,B50,B67,B87,B90 Multipurpose Pneumatic Rock Breaker/Hand Concrete Crushing machine
The Pneumatic Hammer B87 is tools with compressed air as its power, and mainly for road construction , concrete and other hard objects demolition .
B87 pneumatic breaker is a pneumatic instrument manufactured with the mature technology of America Gardener Denver Corporation. It is more powerful in breaking ferroconcrete , rocks and durability ,The rock breaker suits the requirements of breaking outsized . super-thick and hard objects .The breaker is ideal machinery for the substructural construction of mines , bridges ,roads and civil infastructure.
The B87 air leg rock drill is a kind of high efficiency air leg rock drill machinery. it is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility

Applications:
1.dig column foot pit operations;
2.excavation pipeline construction;
3.rock, mining of coal, open ditches;
4.concrete crushing operations until the objects;
5.building demolition, break the road on the road ;
6.breaking solid ground and wall in the urban infrastructure construction project .

SPECIFICATIONS
Model
B47
B50
B67
B87
B90
length
550mm
660mm
615 mm
686 mm
745mm
weight
21.5kg
18kg
30 kg
39 kg
34Kg
Air pressure
0.63mpa
0.63mpa
0.63mpa
0.63mpa
0.63mpa
impacting frequency
21.6hz
22 hz
24 hz
18 hz
16 hz
gas consumption
23l/s
33 l/s
42 l/s
55 l/s
27L/s
Bit Head Size





25×108 mm
25×108 mm
25×108 mm
32×152mm
32×152mm
