LH company Manual/electric hydraulic press with good quality
Functions Features:
1. Gateway steel frame structure
2. Adopts the hydraulic ram with manual and foot-operated functions
3. Applied in dismounting, molding, aligning in the vehicle repairing
4. The manual hydraulc press are used for assembling, dismantling, alignment, stamping, drawing, straightening and punching.
5. It features with small volume, high pressure, simple structure and light weight.
6. mandrel presses have the advantages of small volume ,simple structure ,and little cost.The machine is suitable for operating in the open alror the other special situation.
Manual press application:
1. The manual press has the advantages of small volume,simple structure and little cost. The machine is suitable for operating in the open air and other special situation.
2. The Work table can freely adjust working distance(up-down) as per the side of work piece.
3. It is suitable to be applied for such functions as bending, deforming,rectifying and modeling
or for bearing and gear shaft arbor getting pressed in or enforcing out.
Manual press parameter:
MODEL | LH-10S | LH-20S | LH-30S | LH-40S | LH-50S |
CAPACITY(KN) | 100 | 200 | 300 | 400 | 500 |
PRESSURE(MPa) | 50 | 50 | 50 | 60 | 60 |
TRAVEL (mm) | 180+450 | 200+450 | 200+450 | 250+450 | 250+450 |
TALE SIZE (mm) | 200*300 | 200*300 | 300*400 | 360*500 | 360*680 |
DIMENSION(mm) | 500*350*1300 | 500*350*1300 | 550*400*1500 | 1000*550*1500 | 1000*600*1750 |
WEITHT (KG) | 220 | 260 | 320 | 380 | 460 |

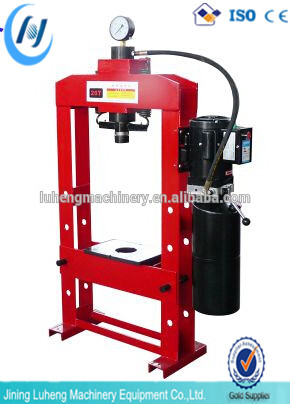

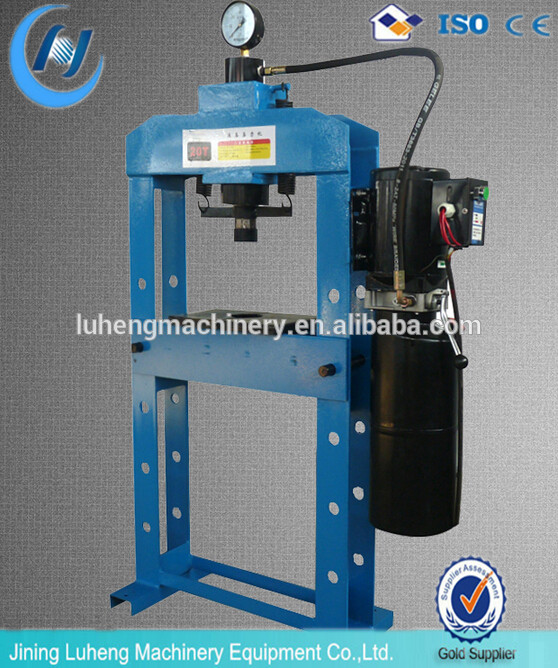

press pictures:
