Durable quality Smart railway track gauge for rail use

Click on the image to view the original image

Product：	views：11Durable quality Smart railway track gauge for rail use
Branch：	Luheng
Type：	Sleepers
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:42

Product Details

Overview

Quick Details

Type:: Sleepers

Material:: Steel

Dimensions (L x W x H) (mm):: 1610*196*524

Place of Origin:: Shandong, China

Brand Name:: Luheng

Model Number:: JTGC-1A

Name:: track guage

Working temperature:: -40℃~60℃

Power supply:: Lithium battery (can last for 6 days)

Weight:: <2.2kg

Memory capacity:: 10000 sets of data

Maximum error of gauge measuring:: ±0.2mm

Maximum error of horizontal measuring:: ±1.0mm

Maximum error of high rail abrasion:: ±0.2mm

Surface::: smooth

Supply Ability

Supply Ability:: 10000 Set/Sets per Year

Packaging & Delivery

Packaging Details: wooden case

Port: QIngdao

Product Description

Product Application

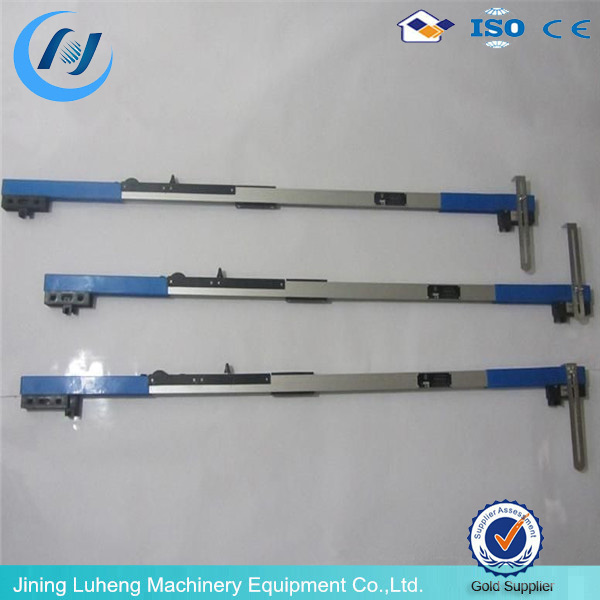

Railway track gauge (feet), which is used for measuring the rail line between the two strands of rail gauge, levelness and super special measuring instruments
Coal mine roadway measuring special JTGC track gauge. I company cash supply gauge is 600 mm, 762 mm, 600 mm, 1000 mm, 1435 mm standard gauge track gauge, and can be tailor-made for customers special non standard gauge track gauge, model is complete. Otherwise folding and light railway track gauge, narrow gauge railway track gauge, rail offset "(1300), railway offset" (1400), etc
JTGC-I-A parallel gauging rule Feature:gauging ruler
Aluminum track gauge adopts load area of 42 * 25 * 2 mm (thickness) of aluminum alloy rectangular pipe, aluminum pipe bottom is 3.5 mm two stiffener
Build rail for aluminum alloy, probe into steel, wear-resisting performance is good
Narrow gauge track gauge adopts load area of 35 h * 25 * 3 mm aluminum alloy profiles
narrow gauge track gauge rail for wear-resistant nylon 66, probe into steel wear-resisting performance is good gauging ruler


JTGC-1A aluminium alloy fold gauging rule	1610×196×524 ≤2.5kg
JTGC-3A Aluminum alloy work gauging rule ( Has a high board )	1660×106×55 ≤2.3kg
MTGC-3woodiness gauging rule	1600×80×55 ≤2.2kg
MTGC-4woodiness gauging rule( Has a high board )	1600×80×55 ≤2.2kg
ZJTGC-6 Aluminum alloy narrow gauge 600 feet	765×93×30 ≤1.1kg
ZJTGC-7 Aluminum alloy narrow gauge 762 feet ( Has a high board )	915×96×55 ≤1.2kg
ZJTGC- Aluminum alloy narrow gauge 900 feet ( Has a high board )	1070×93×55 ≤1.4kg
JTGC-1000 1000mm aluminium alloy gauging rule	1610×196×524 ≤2.5kg
JTGC-1000W 1000mm magna gauging rule	1660×106×55 ≤2.3kg
JTGC-GCUltra high board gauging rule	1660×106×55≤2.3kg
