Cheap Price Second-hand Used Dynapac Mini Road Roller

Click on the image to view the original image

Product：	views：10Cheap Price Second-hand Used Dynapac Mini Road Roller
Branch：	LH
Type：	Single Drum Roller
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:42

Product Details

Overview

Quick Details

Power(W):: 4kw

Travel Speed:: 4000m/h

Static Linear Pressure:: 3.97KG/cm

Condition:: New

Type:: Single Drum Roller

Grade Ability:: 30°

Place of Origin:: Shandong, China

Brand Name:: LH

Model Number:: LH-S600

Dimension(L*W*H):: 1410*750*915mm

Weight:: 175

Certification:: CE

name:: single wheel diesel road roller

Max output (kw):: 5.5HP/3600rpm

Fuel tank volume (L):: 3.6L

Fuel consumption (g/Kwh):: 313g/Kwh

Water tank volume (L):: 15L

Vibration frequency(Hz):: 70HZ

Amplitude:: 0.6mm

Exciterd force (KN):: 13.5

Speed (Km/h):: 0~2.8Km/h

Width of steel wheel (mm):: 600

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 2000 Set/Sets per Year

Packaging & Delivery

Packaging Details: wooden case

Port: qingdao

Cheap Price Second-hand Used Dynapac Mini Road Roller

Cheap Price Second-hand Used Dynapac Mini Road Roller WhatsApp:+8615853785289

Product Introduction

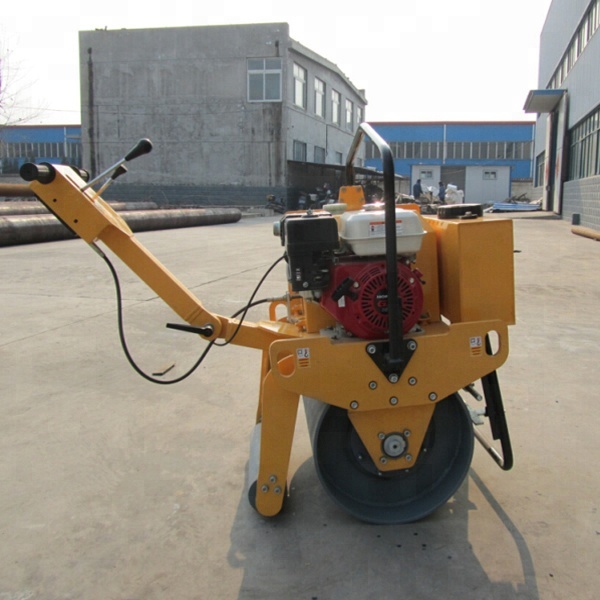

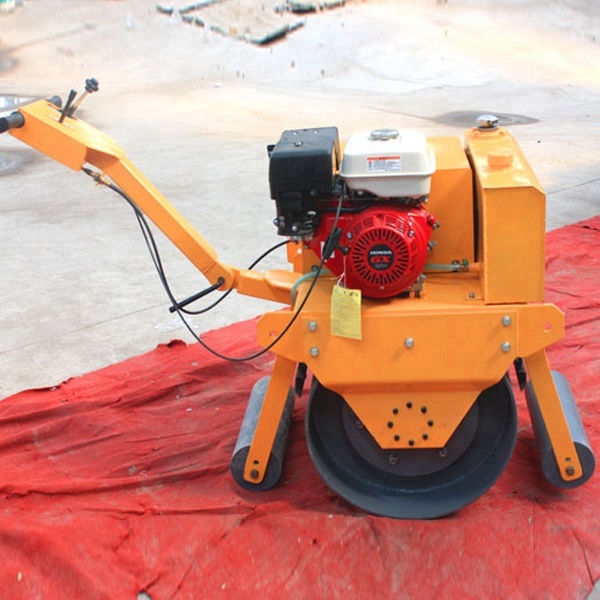

Single Drum Diesel Vibration Hand Roller

1).Operating radius is small, can work in a small area;

2).HONDA diesel international brands, brandname quality assurance,superior performance, easy start;

3).The use of international brandname SAUER hydraulic drive unit,variable speed
4).Handrails using plane gear adjusting mechanism, flexible, can adapt to different height workers to operate;

5). NSK Bearings by internationally renowned, MITSUBOSHI (Samsung) belt, to ensure that the work

performance of the machine;

6).Surface spray, beautiful appearance, rust corrosion;
7). This product has passed CE certification.

Technology Parameters

Model	LHB	LHBC
Engine model	HONDA GX160	Changchai
Engine type	Air-cooled,4-cycle,Gasoline engine	Diesel engine,air cooled,
Engine type	Air-cooled,4-cycle,Gasoline engine	4stroke,OHV,vertical type,single cylinder
Max output (kw)	5.5HP/3600rpm	4.0HP/3600rpm
Fuel tank volume (L)	3.6L	2.5L
Fuel consumption (g/Kwh)	313g/Kwh	280.2g/Kwh
Water tank volume (L)	15L	15L
Vibration frequency(Hz)	70Hz	70Hz
Amplitude	0.6mm	0.6mm
Exciterd force (KN)	13.5KN	13.5KN
Speed (Km/h)	0~2.8Km/h	0~2.8Km/h
Climbing capacity	30°	30°
Width of steel wheel (mm)	600mm	600mm
Diameter of steel wheel (mm)	450mm	450mm
Total length (keep handrail level)/mm	1420mm	1420mm
Total width(mm)	750mm	750mm
Total height (keep handrail upright)/mm	1100mm	1100mm
Packing size (mm)	1050x900x1200mm	1050x900x1200mm
Drive system	Hydraulic pump and motor/Hydrostatic drive	Hydrostatic drive
Vibration system	Mechanical drive automatic centrifugal clutch	Mechanical drive automatic centrifugal clutch
Working weight (Kg)	280Kg	280Kg
Maximum working weight (Kg)	295Kg	295Kg
