2Ton Semi Electric Stacker Walkie Stacker for sell

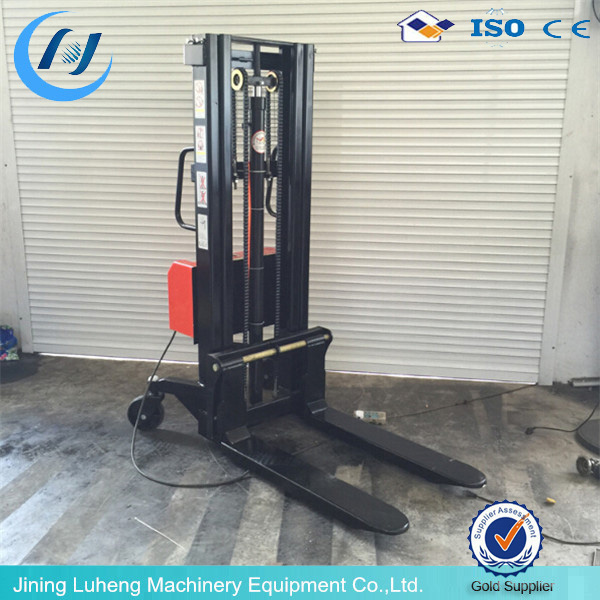

Click on the image to view the original image

Product：	views：112Ton Semi Electric Stacker Walkie Stacker for sell
Branch：	Luheng
Type：	Powered Pallet Truck
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:42

Product Details

Overview

Quick Details

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: Luheng

Model Number:: LH01

Type:: Powered Pallet Truck

Power Souce:: AC Motor

Rated Loading Capacity:: 1600kg

Max. Lifting Height:: 3m

Min. Lifting Height:: 1600

Fork Length:: 1000

Fork Width:: 500

Overall Dimensions:: 188*85*233

Certification:: ISO9001

Product Name:: Electric lift forklift

Color:: Red

Capacity(Kg):: 1000

lifting height(H2)(mm):: 1600

Frame type:: Single

Fork length(L1)(mm):: 1000

Load center(mm):: 450

Motor Power:: DC12V1.2KW

Outer width of front leg(mm):: 620

Inner width of front leg(mm):: 380

After-sales Service Provided:: No overseas service provided

Supply Ability

Supply Ability:: 10000 Set/Sets per Year

Packaging & Delivery

Packaging Details: wooden case

Port: Qingdao

Product Description

Product Application

Electric Stacker Semi Electric Stacker Semi-electric constructed mainly by mast steel batteries, motors, hydraulic station, rod, chains, wheels, handles and other component parts!
Works semi-electric stacker lift when the lift rod through the manipulation, control pump station, drive straight through the inner cylinder, an outer door frame and the carriage relative motion, so that the forks rise and fall. Semi-electric Stacker push through human walking, use special technology nylon or polyurethane wheels, wear, pressure, mute manual control, flexible operation, light. Steering steering handle manipulated by the steering mechanism acting on both sides of the steering wheel is rotated more lightweight, flexible, therefore, turned directly to the steering handle to the required angle. Parking brake by foot brake operation, the brake acts directly on the caster, brake brakes immediately play the role.

SPECIFICATIONS
Capacity(Kg)	1000	1000	1000	1000	1500	1500	1500	1500	2000
lifting height(H2)(mm)	1600	2000	2500	3000/3300	1600	2000	2500	3000/3300	1600
Frame type	Single	Double	Double	Double	Single	Double	Double	Double	Single
Fork length(L1)(mm)	1000	1000	1000	1000	1000	1000	1000	1000	1000
Min height of forks lowered(H1)mm)	90
Load center(mm)	450
Charging Voltage(v)	AC220V
Motor Power	DC12V1.2KW
Outer width of front leg(mm)	620
Inner width of front leg(mm)	380
Adjustable width of the fork(mm)	320-680
