Home > Products > YD-22 Railway Hydraulic Ballast Rail Tamping Machine

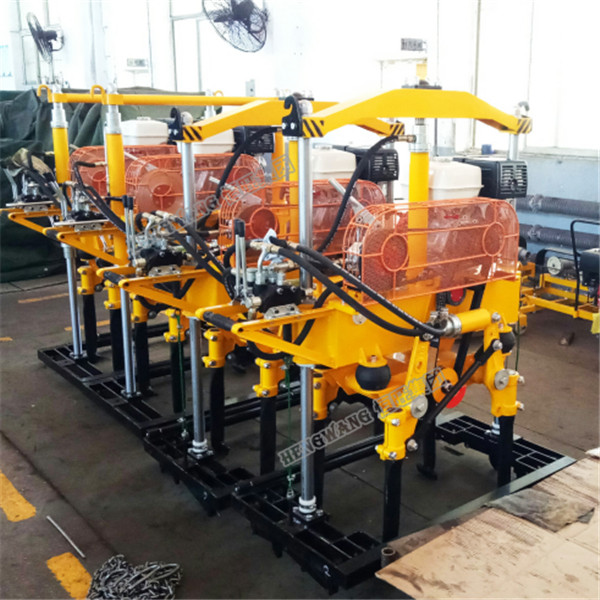

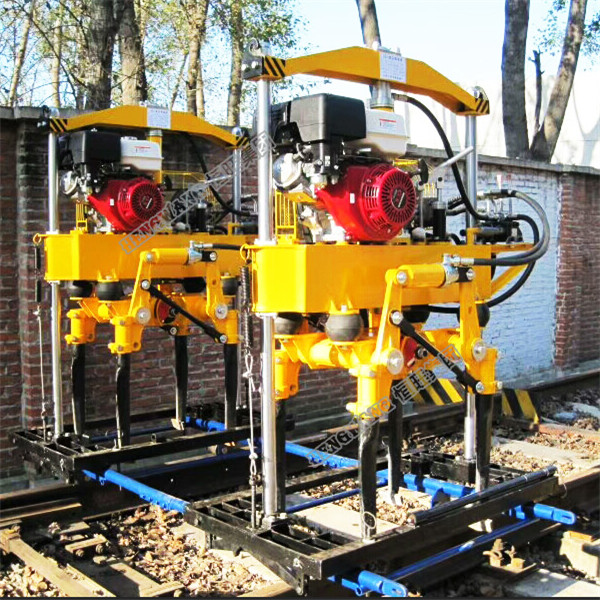

YD-22 Railway Hydraulic Ballast Rail Tamping Machine

Click on the image to view the original image

Product：	views：13YD-22 Railway Hydraulic Ballast Rail Tamping Machine
Branch：	Luheng
Type：	Tie Plates
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:42

Product Details

Overview

Quick Details

Type:: Tie Plates

Material:: Steel

Dimensions (L x W x H) (mm):: 1480*762*1485mm

Place of Origin:: Shandong, China

Brand Name:: Luheng

Model No:: YD-22

Power::: 5.5KW

Vaberation Frequency::: 66.1hz

Max.Inserting Force::: 16kN

Inserting Depth::: Underneath the tie 110mm

Hydraulic System Pressure:: 5-6MPa

Vibrating Force:: 22KN

Inserting Depth:: 110mm±10mm

Electric Motor::: 360kg

Diesel Engine::: 445kg

Supply Ability

Supply Ability:: 10000 Set/Sets per Year

Packaging & Delivery

Packaging Details: polywood case or as per the requirement of customers

Port: Qingdao

YD-22 Railway Hydraulic Ballast Rail Tamping Machine

Product Introduction

YD-22 hydraulic ballast tamping machine is a special purpose machinery used in the

maintenance of the railway works.

It is mainly used for the ballast tamping of the rail sleeper. It can be used to work in the interval time of the trains and no need for interval close. It has three kinds of engine:

gasoline, diesel and motor.

Technology Parameters

Model	YD-22 Hydraulic Ballast Tamping Machine
Y132S-2 Electric Motor	5.5KW
	2880r/min
	380V/50HZ
Hydraulic System Pressure	5-6MPa
Vibrating Frequency	60-67HZ
Vibrating Force	22KN
Max.Insert Force	16KN
Clamping Force	6.5KNx2
Inserting Depth	110mm±10mm
Efficiency	≥260pcs/(set·hour)
Weight	350KG
Dimension	1300x750x1600mm
