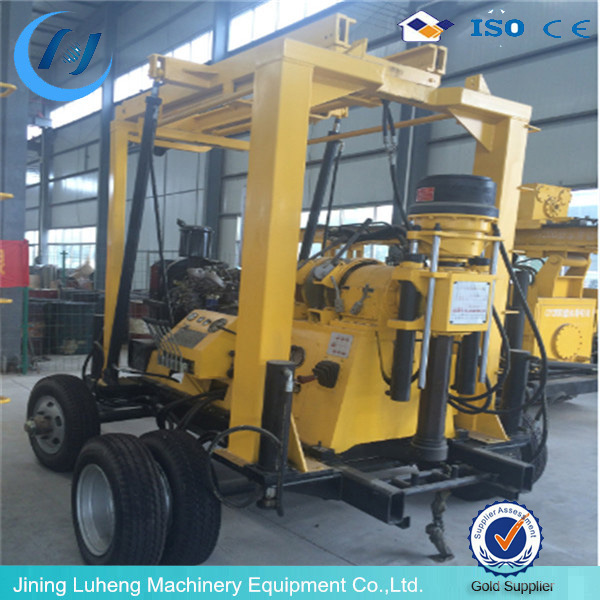

Trailer Mounted Water Well Drilling Rig Mobile Drilling Machine

Click on the image to view the original image

Product：	views：10Trailer Mounted Water Well Drilling Rig Mobile Drilling Machine
Branch：	Hengwang
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:42

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: Hengwang

Model Number:: HW230

Usage:: Water Well

Voltage:: 380V

Power(W):: 33kw

Dimension(L*W*H):: 2.1*0.9*1.3m

Weight:: 4000kg

Certification:: ISO9001

Model:: HW230

Drilling depth:: 200M

Drilling hole diameter:: 75-300mm

Power:: 15kw

Single lifting speed:: 1.64m/s

Single lifting force:: 24kn

Wireline capacity:: 35mm

Displacement:: 160l/min

Working pressure:: 1.3Mpa

Reciprocate times:: 165times/min

Warranty:: 1year

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 10000 Set/Sets per Year

Packaging & Delivery

Packaging Details: standard package

Port: Qingdao

Product Description

Product Application

Water Well Drilling Rig is mainly used for geological general investigation and exploration,road and tall building foundation exploration,kinds of hole in concret strcture,river levees,subgrade grouting hole ,drilling and driect grouting,civil wellsand earth temperature central air-conditioner ,etc.

1 The rig is equipped with wheel running gear and hydraulic oil cylinder pillar, transferring, convenient and easy to drill horizontal adjustment
2 With hydraulic feed mechanism, improve drilling efficiency
3 On the rig is equipped with a cassette clamping device to replace chuck, can be a non-stop down rod, high efficiency, convenient and safe and reliable operation
4 Is equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master the hole
5 Falling tower for hydraulic operation, convenient and reliable

6 Diesel engine with electric start, reduce labor intensity.

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Engine	Drilling depth	m	200
	Drilling hole diameter	mm	75-300
	Power	kw	15
Main performance parameters	Single lifting speed	m/s	1.64
	Single lifting force	kN	24
	Wireline capacity	m	35
Mud pump	Displacement	L/min	160
	Working pressure	Mpa	1.3
	Reciprocate times160	times/min	165
