Home > Products > tricycle drilling rig drilling machine/tricycle drill rig/100-200 meters tricycles carry water well drilling rig

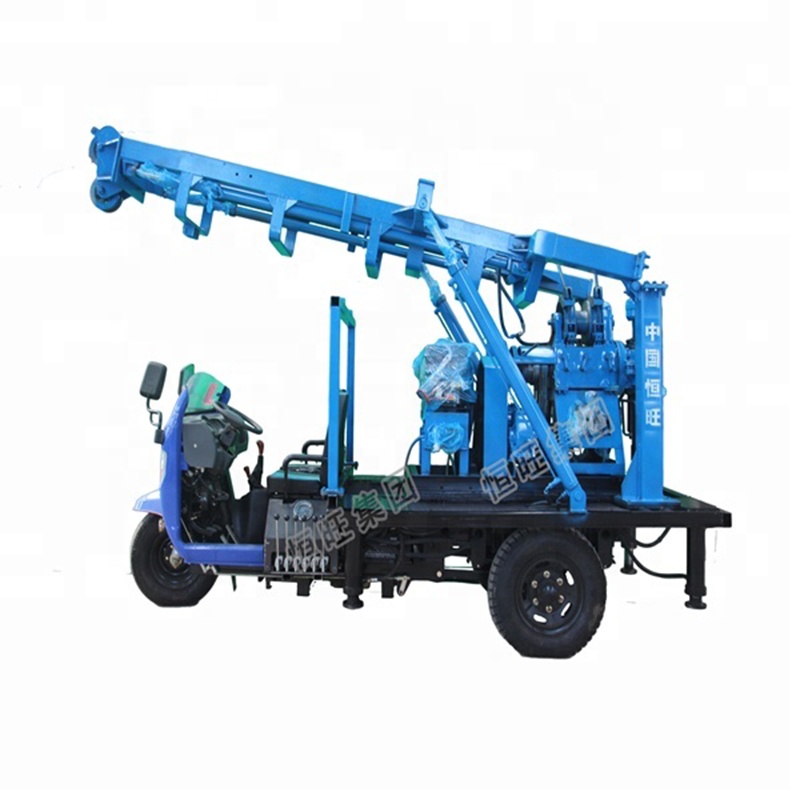

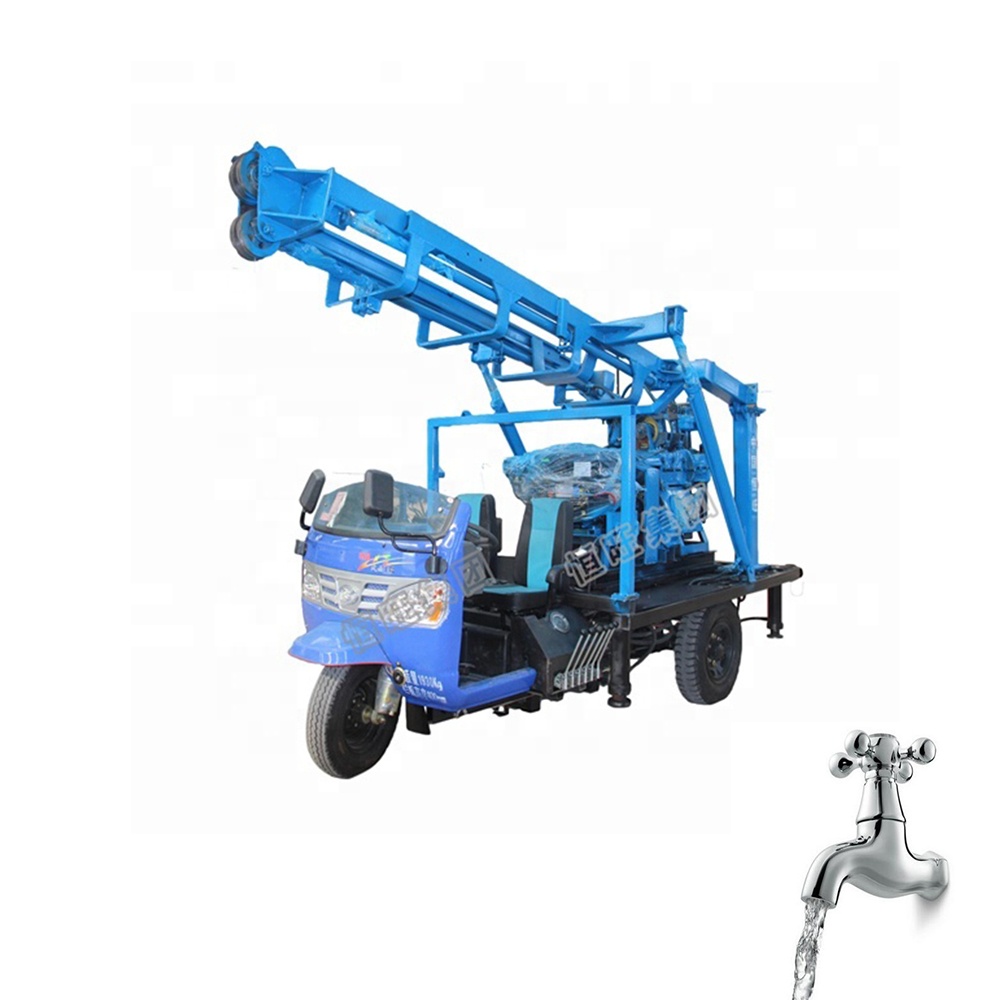

tricycle drilling rig drilling machine/tricycle drill rig/100-200 meters tricycles carry water well drilling rig
Click on the image to view the original image
Product： views：10tricycle drilling rig drilling machine/tricycle drill rig/100-200 meters tricycles carry water well drilling rig
Branch： LH
Type： Rotary Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:42
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Construction works
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
LH
Usage:
Water Well
Voltage:
220V/380V
Dimension(L*W*H):
40001700X2300mm
Weight:
3000KGS
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Product name:
tricycle drilling rig drilling machine
Application:
water well drilling rig
Drilling depth:
30-230m
Drilling diameter:
75-300mm
Max winch lift capacity:
1800kg
spindle speed:
64-557r/min
spindle stroke:
450mm
drilling yower height:
6500mm
Drill rod length:
3.0m
Color:
Customised
Supply Ability
Supply Ability:
500 Set/Sets per Month tricycle water well drilling rig
Packaging & Delivery
Packaging Details
1 set can load into one 20 feet container for tricycle drilling rig drilling machine/tricycle drill rig/100-200 meters tricycles carry water well drilling rig
Port
Qingdao
Lead Time:
Quantity(Sets)1 - 5 >5
Est. Time(days)15To be negotiated
Product Description

tricycle drilling rig drilling machine/tricycle drill rig/100-200 meters tricycles carry water well drilling rig

    Tricycle water well drilling rig is designed to meet the needs of high speed, righ efficiency and high mobilty in field drilling. The machine is reasonable in strucuse, simple in operation, convenient in maintenance and transportation and can be hoisted without crane after being transported to the working site. It is suitable for geological survey exploration, basic exploration of roads and high-rise buildings, various structural inspection holes on concrete, river embankments, subgrade grouting hole and direct grouting, civil water wells and ground temperature central air conditioning.
   SPECIFICATION FOR TRICYCLE DRILLING RIG






Machine specification
Model:
LH-230S
Drilling depth
30-230m
diameter
75-300mm
End hole diameter
75mm
drill angle
75-90°
engine power
15kw
weight without engine
3000kg
spindle
speed
64-554r/min
stroke
450mm
tricycle chassis
rated  power
18.3kw
rated speed
2200kw
drill mast
rated load
18ton
effective height
6500mm
mud pump
flow
160l/min
Max. pressure
1.3Mpa

Main features

1.Ticycle drilling rigs are mulit-function hydraulic spindle Rotary drilling rig, can equipped with LH160S/190S/230S models.2 Vehicle chassis Wuzheng tricyle YP-1475D1, the drive system , winch and mud pump and other important accessories installed on the chassis, the layout is reasonable and compact, easy to operate.
3.Equipped with BW-160 or BW-250 mud pump, high pressure ,big flow, it ensures to reach drillinc depth and diameter.
4. Drilling rig is self-equiped with moble devices, drilling rig can monves before and after the host itselly to facilliate the operation of the wellhead.
5.Driling tower is hydraulic landing manual folding tower, easy to operate, safe and convenient.
Detailed Images
Packing&Shipping
1 set can load into one 20 feet container for tricycle drilling rig
