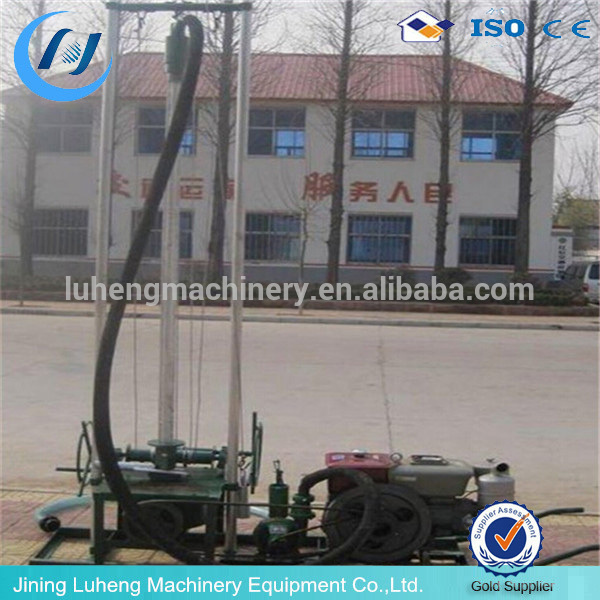

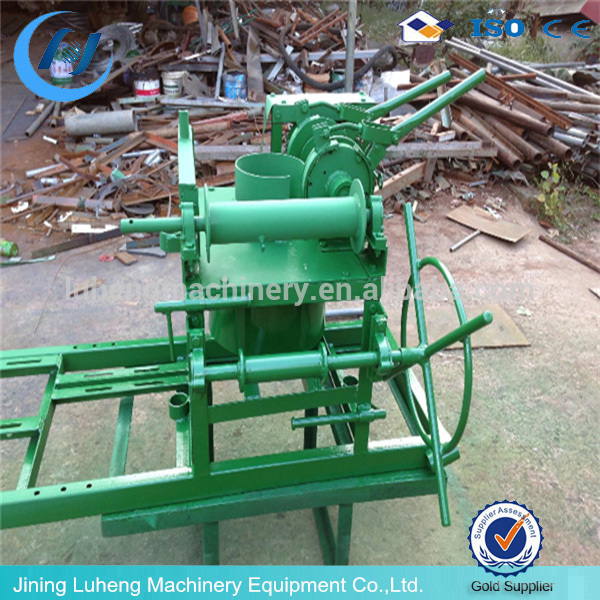

Whatsapp:+8615965109869 portable borehole drilling machine for water well drilling

Click on the image to view the original image

Product：	views：1Whatsapp:+8615965109869 portable borehole drilling machine for water well drilling
Branch：	Luheng
Type：	Rotary Drilling Rig, HW-80
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:42

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig, HW-80

Power Type:: Gasoline

Place of Origin:: Shandong, China

Brand Name:: Luheng

Model Number:: HW80

Usage:: Water Well

Voltage:: 220V/380V

Power(W):: 2.1kw

Dimension(L*W*H):: 1100*600*500(mm)

Weight:: 80kg

Certification:: ISO9001

Max. Drilling Diameter:: 100-300mm

Max. Drilling Depth:: 60-80m

tightrope caliber::: 27m

end hole caliber::: 75mm

spindle speed::: 142,285,570 r/min

drill rod caliber::: 50mm

spindle stroke::: 450mm

Drilling Rod Length::: 2m/piece

engine:: gasoline

Warranty:: 1 Year

After-sales Service Provided:: No overseas service provided

Supply Ability

Supply Ability:: 10000 Set/Sets per Year

Packaging & Delivery

Packaging Details: standard wooden export packing

Port: Qingdao/Shanghai

Whatsapp:+8615965109869 portable borehole drilling machine for water well drilling

Product Instruction

This machine mainly used for geothermal drilling, farm irrigation and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m.
It also can be used in small building piling, like farmhouse or factory and so on, the drilling diameter can reach 500mm and depth can be more than 10m.

1. Light weight. The main engine is only weighted 0.135tons
2. Easy to operate. Can be handled without experience.
3. Durable. The first generation of products used for 13 years, drilled more than 4000 water wells, nearly no repair record except the drilling bits.
4. Can drill through hard stratum, unless thick rock layer.
5. Can drill deep. Equipped with raser, reduce the labor intensity.
6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area.
7. Economical. It can be called the most economical water well drilling machine.
The packing of the machine is wood box, the CBM is about 2.0M3, the total weight (complete set) is about 850KG

Technology Parameters

Technical Parameters of Water Well Drilling Rig
Type	HW-80
Max. Drilling Diameter	70-300mm
Max. Drilling Depth	60-80m
Total Power	10.2 kw
Engine Power	2.1kw
Lifting Power	1.5kw
Pump	2.2kw,220V(flow head 46m)
Capacity of hoist	1.0t
Height of tower	3m
Total Weight	700kgs(150m pipes)
Drilling Rod Length	2m/piece
Diameter of Drilling Rod	42mm
