Home > Products > solar water well submersible pump/solar water pump kit for home application

solar water well submersible pump/solar water pump kit for home application

Click on the image to view the original image

Product：	views：12solar water well submersible pump/solar water pump kit for home application
Branch：	LH
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:42

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: LH

Model Number:: Pump

Structure:: Screw Pump

Usage:: Water, Water

Application:: Submersible

Power:: solar, solar

Fuel:: solar, solar

Pressure:: High Pressure

Specification:: Normal

Solar Power (W):: 10W

Work Time (h):: 12h

source:: solar

function:: Operate Direct Sunlight

name:: solar powered water pumps

Flow Rate:: 12 Tun/Hour

Standard or Nonstandard:: Standard

Theory:: Centrifugal Pump

Supply Ability

Supply Ability:: 1000 Set/Sets per Year

Packaging & Delivery

Packaging Details: carton case

Port: Qingdao

solar water well submersible pump/solar water pump kit for home application/whatsapp:

+8613678678206

Product Introduction

1) The whole system consists of solar panel array, con lowest price solar water pump from manufacture troller and submersible well pump

2) The pump is directly connected to solar panels without inverter, and the controller

protects the pump, achieve high efficiency and make fullest use of solar energy.

3) The solar panel absorbs the sunlight and transfer it into DC electrical energy for the

driving of submersible water pump.

4) It adopts lightning protection, water filling, permanent magnet, brushless DC, and

nonsensor shielding motor, and MPPT (maximum power point tracking) driving device.

5) According to the changes of the intensity of sunlight in real time, MPPT controller adjusts output frequency to track the maximum power point.

Technology Parameters

Model	Impeller	voltage (V)	Power (kW)	Max Flow (M3/H)	Solar panel power	Max Head (M)	Outlet (IN)	Outer Diameter (MM)	Weight (KG)
3LH0.9/32-D12/100	Screw	11--18	80--220	0.9	200w	32	0.75"	76*460	6.7
3LH1.0/30-D24/80		22-36	45-150	1	150w	30	0.75"		7
3LH1.3/50-D24/140		22-36	80-200	1.3	200w	50	0.75"		7.2
3LH1.5/80-D24/210		22-36	100-270	1.5	270w	80	0.75"		7.5
3LH1.5/100-D24/270		22-36	140-350	1.5	360w	100	0.75"		8
3LH1.5/120-D36/500		32-54	320-800	1.5	800w	120	0.75"		9
3LH2.3/80-D48/500		42-72	480-950	2.3	1000w	140	0.75"		9
3LH2.3/110-D48/750		42-88	600-1200	2.3	1200w	160	0.75"		9.5
3LH2.3/125-D72/1000		42-88	800-1500	2.3	1500w	180	0.75"		9.5
3LHI0.9/32-D12/100	Screw	11--18	80--220	0.9	220w	32	0.75"		6.7
3LHI1.5/50-D24/140		22-36	80-200	1.3	200w	50	0.75"		7.2
3LHI1.5/80-D24/210		22-36	100-270	1.5	280w	80	0.75"		7.5
3LHI1.5/100-D24/270		22-36	140-350	1.5	360w	100	0.75"		8
4LH2.5/50-D24/270	Screw	22-36	140-350	2.5	360w	50	1"	100*480	9.5
4LH3/60-D36/500		32-54	300-700	3	700w	60	1"		10
4LH3.6/80-D48/750		42-72	450-1000	3.6	1000w	80	1"		10.5
4LH4/100-D72/1000		42-88	600-1300	4	1200w	100	1"	100*550	13.5
4LH3/120-D72/1000		42-88	800-1550	3	1600w	120	1"

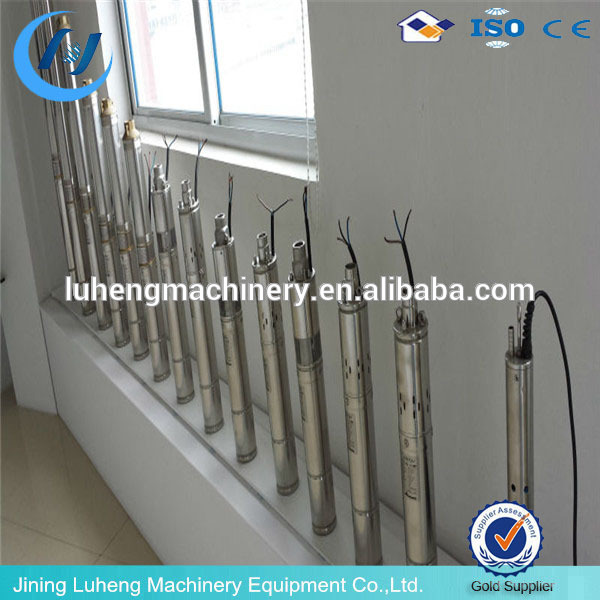

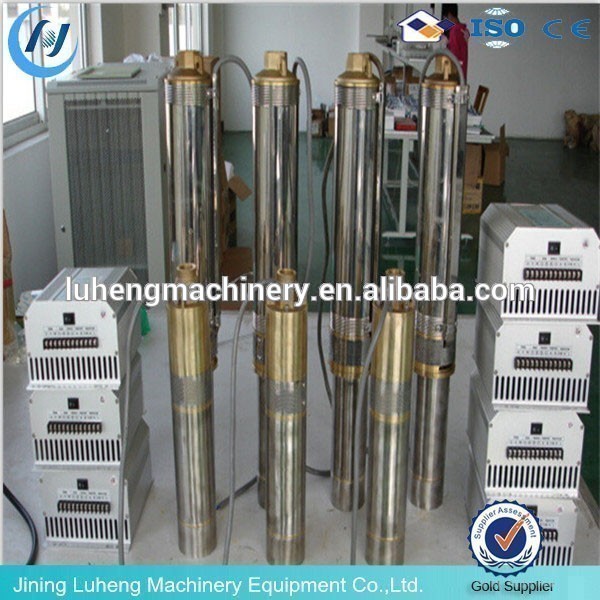

The real details photo

Good Service
