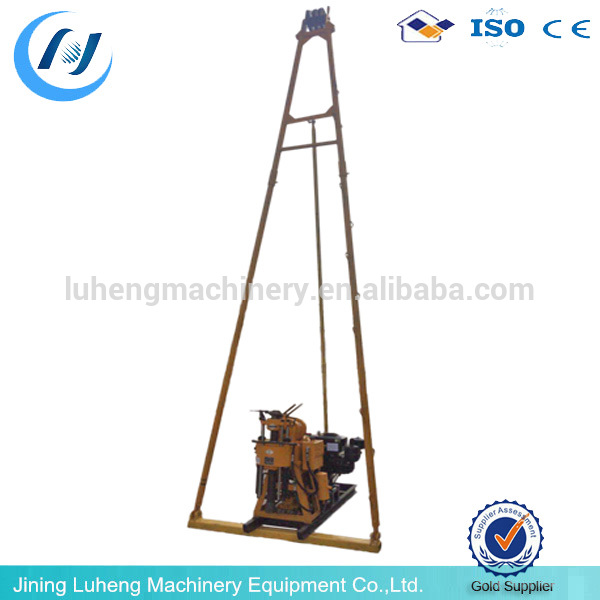

Small portable borehole drilling machines/Small geotechnical portable water well drilling equipment WhatsApp:+8615853785289
Small portable borehole drilling machines/Small geotechnical portable water well drilling equipment WhatsApp:+8615853785289
Technology Parameters
| Unity machine parameter | |
| Drilling depth | 10-130m |
| Maximum open hole caliber | 260mm |
| End hole caliber | 75mm |
| Drill rod caliber | 50mm |
| Drilling angle | 90~75 |
| Drill weight (No include power) | 510 560kg |
| Unity machine dimensions | 2.5×1×1.3 2.5×0.9×1.3m |
| Spindle | |
| spindle speed | 142,285,570r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.single line hoisting capacity | 960kg |
| Single line lifting speed | 0.41,0.82,1.64m/s |
| Tightrope caliber | 27m |
| Mud pump of HZ-130YY model drilling rig | |
| Type | Horizontal single urn twin-action |
| Displacement | 95/77L/min |
| Diesle engine | Model s1110 18HP |
| Electric motor | Y160M—4 11kw 1440r/min |
| Maximum pressure | 1.2Mpa |
| Work pressure | 0.7Mpa |
| Water inlet caliber | 30mm |
| Water to exit caliber | 25mm |
| Triangle conveyor belt | B1575mm |

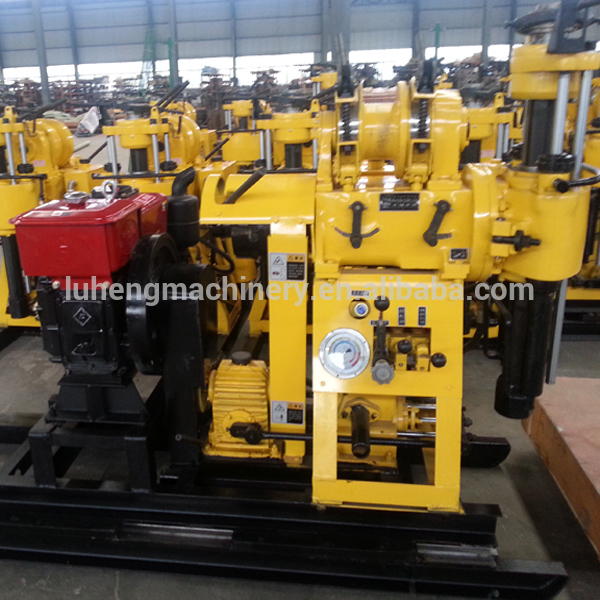

The real details photo
