200meters water wells drill rig Electric motor or diesel engine water well drilling rig for sale

Click on the image to view the original image

Product：	views：7200meters water wells drill rig Electric motor or diesel engine water well drilling rig for sale
Branch：	luheng
Type：	Rotary Drilling Rig
Size：	230X180X160 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:43

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: luheng

Usage:: Water Well

Voltage:: 220V/380V

Dimension(L*W*H):: 3500*1550*2200mm

Weight:: 1200 kg

Certification:: CE ISO SGS

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Online support

tightrope caliber:: 200m

end hole caliber:: 75mm

Product name:: diesel engine water well drilling rig

spindle speed:: 142,285,570 r/min

maximum open hole caliber:: 260mm

max.single line hoisting capacity:: 960kg

drill rod caliber:: 50mm

spindle stroke:: 450mm

Hydraulic motor:: 16pa

drilling depth:: 100~250m

Packaging & Delivery

Selling Units:: Single item

Single package size:: 230X180X160 cm

Single gross weight:: 2000.0 kg

Lead Time:

Quantity(Set)	1 - 5	>5
Est. Time(days)	3	To be negotiated

Product Description

1. Hydraulic-control drill mast, can be raised and put down by hydraulic cylinders,which saves time and worker labor.

2. Rubber track,the weight is lighter and does not hurt urban road, suitable for projects in city.

3. Four hydraulic jacks, can lift the machine to max.height 1.3m,so that the machine can be loaded onto and unloaded from truck compartment.Also they can be used for rig leveling and support at work.

4. 24V electric-strat diesel engine reduces the operator`s labor intensity.

5. Independent BW-160 mud pump ,has bigger flow displacement and pressure, easy maintenance.

6. Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs.

Technology Parameter

200meters water wells drill rig Electric motor or diesel engine water well drilling rig for sale

Drilling depth	100-2500m
Maximum open hole caliber	100-360mm
End hole caliber	75mm
Drill rod caliber	50mm
Drilling angle	90~75
Drill weight (No include power)	510 560kg
Unity machine dimensions	2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed	142,285,570r/min
Spindle stroke	450mm
Hoist
Max.single line hoisting capacity	960kg
Single line lifting speed	0.41,0.82,1.64m/s
Tightrope caliber	27m
Mud pump of HZ-130YY model drilling rig
Type	Horizontal single urn twin-action
Displacement	95/77L/min
Diesle engine	Model s1110 18HP
Electric motor	11kw 1440r/min
Water inlet caliber	30mm
Water to exit caliber	25mm
Triangle conveyor belt	B1575mm

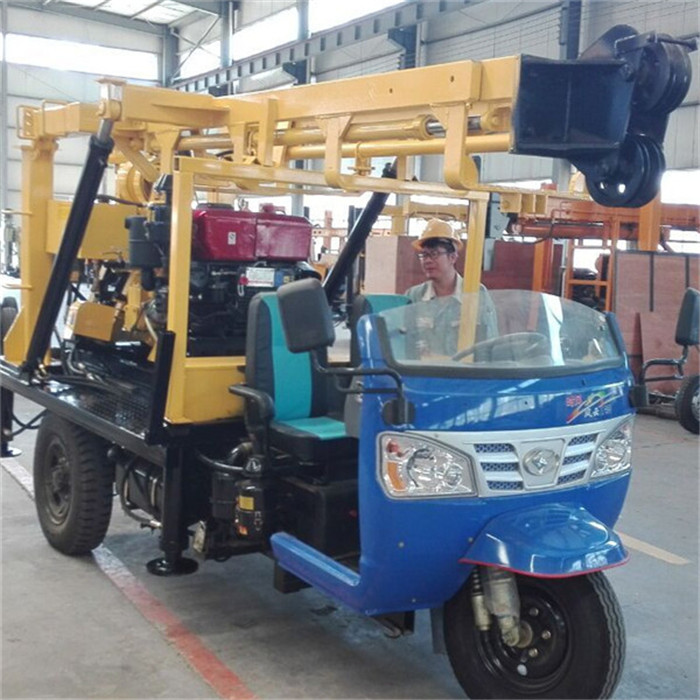

The photos
