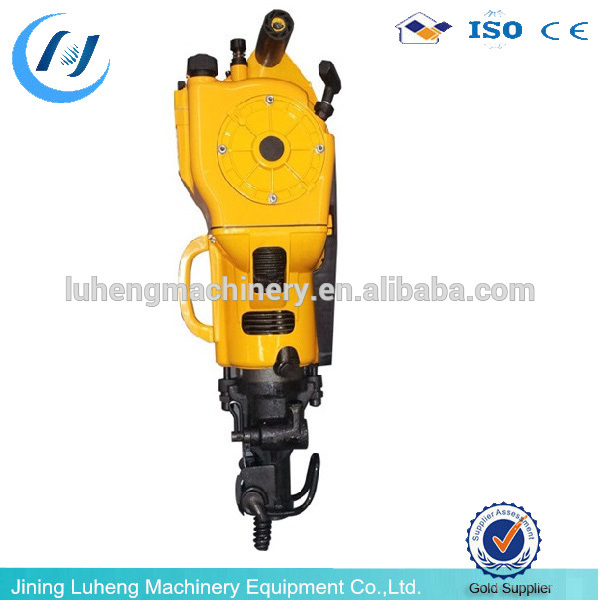

hand held Gasoline rock drill hammer breaker

Click on the image to view the original image

Product：	views：10hand held Gasoline rock drill hammer breaker
Branch：	LH brand
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:43

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Gasoline

Place of Origin:: Shandong, China

Brand Name:: LH brand

Model Number:: YN27C

Usage:: Coal

Voltage:: gasoline rock drill

Power(W):: gasoline rock drill

Dimension(L*W*H):: 746*315*229mm

Weight:: 27 KG

Certification:: ISO CE

engine:: single cylinder, air cooled two strokes

Cylinder diameter*stroke piston:: 58*70mm

Rotating speed of engine:: more than 2450r/min

displacement of engine:: 185cm^3

Max drilling depth:: 6M

Drilling speed:: more than 2450r/min

Fuel consumption:: 1.2L/min

Tank capacity:: more than 1:14L

Packing:: wooden case

Name:: rock drill

After-sales Service Provided:: Overseas service center available

Warranty:: 2 year

Supply Ability

Supply Ability:: 1000 Set/Sets per Week gasoline rock drill

Packaging & Delivery

Packaging Details: wooden case

Port: QINGDAO

Product Description

Introduction

The internal combustion rock drill type YN27 is a very efficient hand held drill machine bulit up with gasoline engine, air pump, rock drill and the rotation plumbum equipment for running or stop. It can be used for breaking, percussive drilling, tamping besides rock.

Advantages
•Needless to replace the internals of the engine head, just handle the handle to operate it.
•Easy to operate. More time-saving and effortless. Drilling faster and more efficient.
•Have reached the Tip-top level of the same field now, and allow to be replaced with the same kind of the domestic products.
•Available for drilling, splitting breaking, ramming, shovelling. And widely used in mining,road-construction, quarrying and national defense construction, etc.

Model	YN27
Weight	27kg
overall dimension	810380280mm
engine	single cylinder, air cooled two strokes
Cylinder diameter*stroke piston	58*70mm
Rotating speed of engine	more than 2450r/min
displacement of engine	185cm^3
carburetor	hand needle valve, no floating type
Ignition system	controllable silicon contactless system
Drilling speed	more than 2450r/min
Max drilling depth	6M
Fuel consumption	1.2L/min
Tank capacity	more than 1:14L
Gasoline and lubricating oil blending ratio	9:1
end of drill rod dimensions	hexagonal 22*108mm
Rotating speed of drill rod	more than 200r/min
Clearance of spark plug	0.5-0.7mm

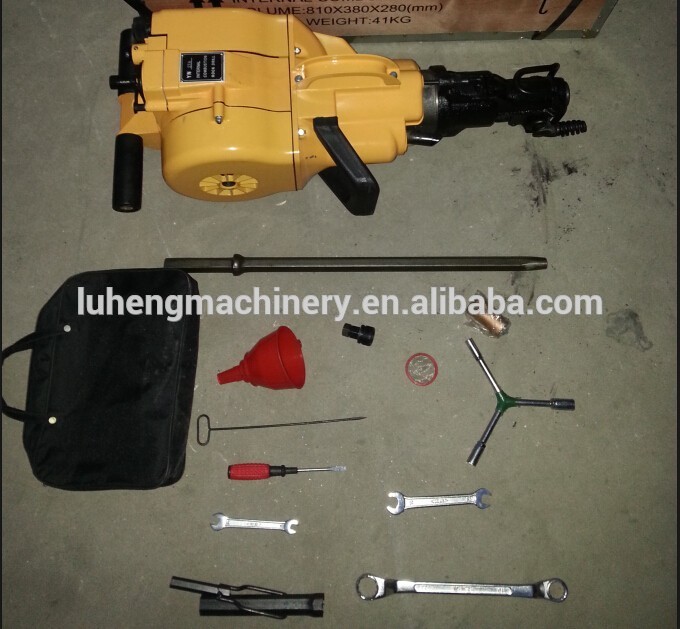

Detailed Images

Machine Parts

Name: drill bit

Brand: HWLH

Original: Made in China

Size:28mm,32mm, 34mm,36mm, 38mm,40mm, 42mm or customized according to your need
Ralted name :Tapered chisel bits/ Tapered cross bits/Tapered button bits,
