Overview
Quick Details
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Gasoline
- Place of Origin:
- Shandong, China
- Brand Name:
- LH brand
- Usage:
- Coal
- Voltage:
- gasoline rock drill
- Dimension(L*W*H):
- 746*315*229mm
- Weight:
- 27 KG
- Certification:
- ISO CE
- Warranty:
- 2 year
- After-sales Service Provided:
- Video technical support
- engine:
- single cylinder, air cooled two strokes
- Cylinder diameter*stroke piston:
- 58*70mm
- Rotating speed of engine:
- more than 2450r/min
- displacement of engine:
- 185cm^3
- Max drilling depth:
- 6M
- Drilling speed:
- more than 2450r/min
- Fuel consumption:
- 1.2L/min
- Tank capacity:
- more than 1:14L
- Packing:
- wooden case
- Name:
- gasoline rock drill
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 73X28X38 cm
- Single gross weight:
- 40.0 kg

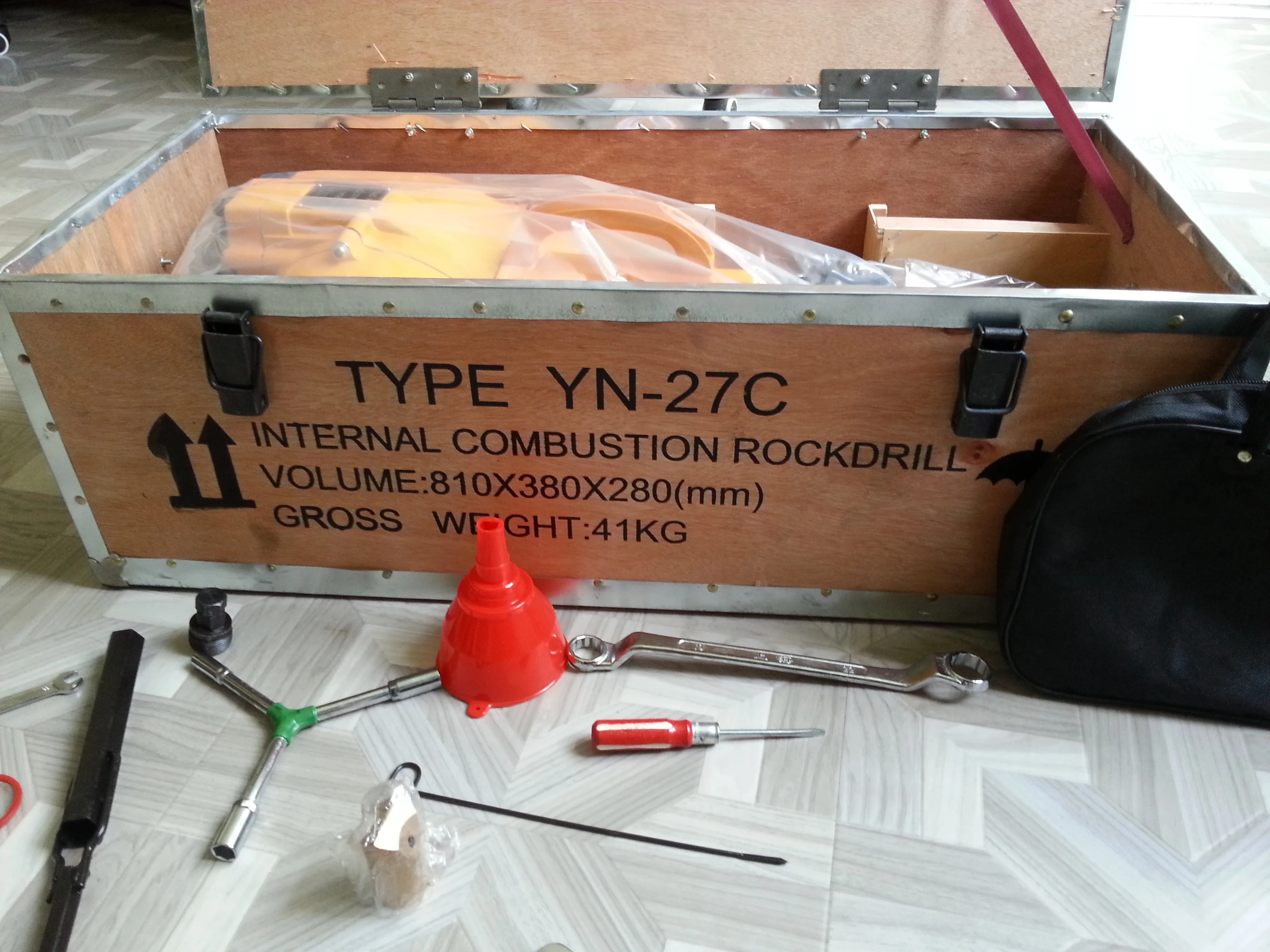

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 100 >100 Est. Time(days) 10 To be negotiated
Product Description
Introduction

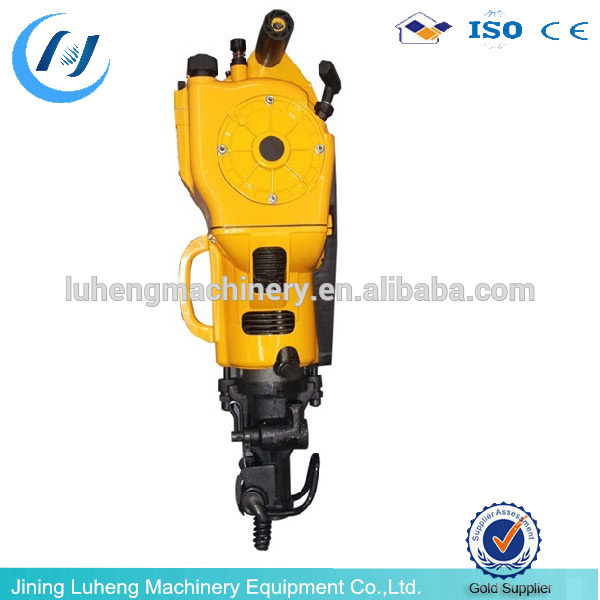

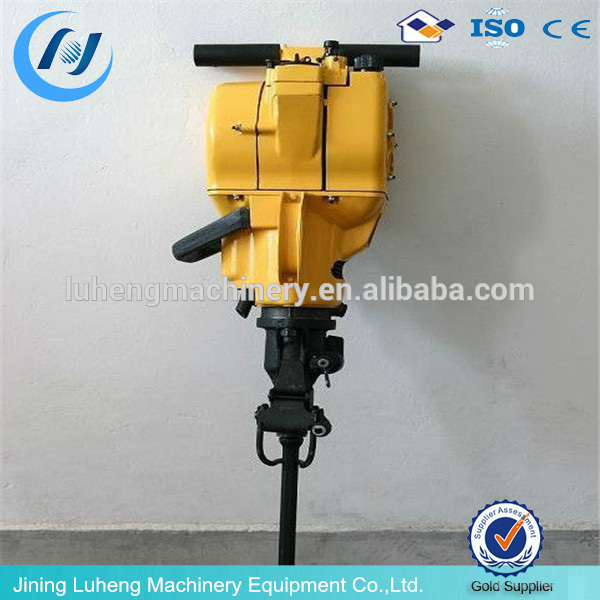

The internal combustion rock drill type YN27 is a very efficient hand held drill machine bulit up with gasoline engine, air pump, rock drill and the rotation plumbum equipment for running or stop. It can be used for breaking, percussive drilling, tamping besides rock.
Advantages
•Needless to replace the internals of the engine head, just handle the handle to operate it.
•Easy to operate. More time-saving and effortless. Drilling faster and more efficient.
•Have reached the Tip-top level of the same field now, and allow to be replaced with the same kind of the domestic products.
•Available for drilling, splitting breaking, ramming, shovelling. And widely used in mining,road-construction, quarrying and national defense construction, etc.
Detailed Images
Machine Parts
Name: drill bit
Brand: HWLH
Original: Made in China
Size:28mm,32mm, 34mm,36mm, 38mm,40mm, 42mm or customized according to your need
Ralted name :Tapered chisel bits/ Tapered cross bits/Tapered button bits,
Main Features
Name: B22 Drill rod
Brand: HWLH
Original: Made in China
B22 drill rod,the length can be customized
