Product Instruction

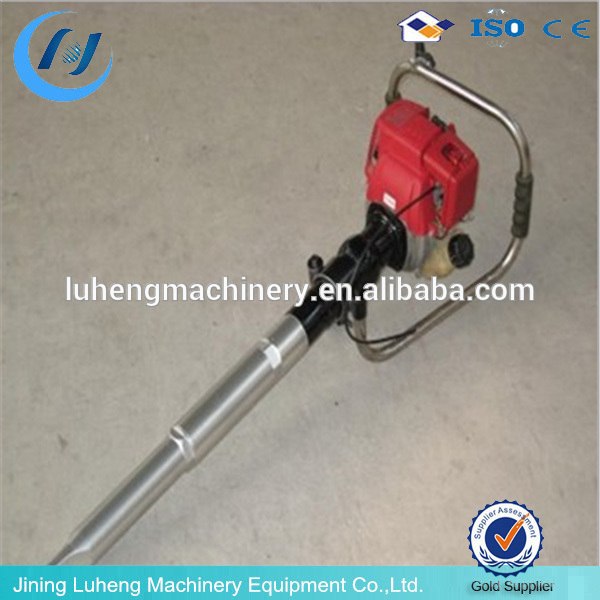

ND-4 internal combustion railway tamping pick
ND-4 Internal combustion tamping picks a small road suitable for railway track maintenance machinery, mainly used for ballast track tamping homework. Its novel design, compact structure, is a kind of way rapidly up and down, stamping equipment, convenient operation is particularly suited to switch tamping homework.
This machine is mainly composed of gasoline engine, the vibration damping device, a transmission axis, a vibration body and hand, constitute a complete independence of handheld tamping machine, neither the long cables, no heavy soft shaft, compact and reasonable structure, easy to use.
Technology Parameters
| Model | ND-4 Internal Combustion Tamping Machine |
petrol engine power | 1.47kw |
vibrating force | ≥ 4.2KN |
idling amplitude | ≥ 5mm |
frequency | 120~140HZ |
diameter of vibrating & tamping bar | 52mm |
rev. speed of eccentric block | 7000-8000r/min |
total weight | 16kg |

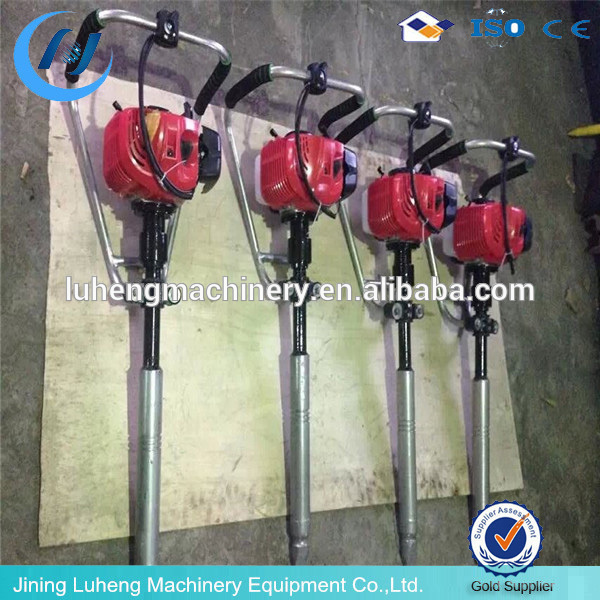

The real details photo
