solar pump water pumping system for agricultural irrigation include solar panel WhatsApp:+8615853785289
solar pump water pumping system for agricultural irrigation include solar panel WhatsApp:+8615853785289
Product Introduction
1) The whole system consists of solar panel array, con lowest price solar water pump from manufacture troller and submersible well pump
2) The pump is directly connected to solar panels without inverter, and the controller
protects the pump, achieve high efficiency and make fullest use of solar energy.
3) The solar panel absorbs the sunlight and transfer it into DC electrical energy for the
driving of submersible water pump.
4) It adopts lightning protection, water filling, permanent magnet, brushless DC, and
nonsensor shielding motor, and MPPT (maximum power point tracking) driving device.
5) According to the changes of the intensity of sunlight in real time, MPPT controller adjusts output frequency to track the maximum power point.
Technology Parameters
| Model | Impeller | voltage (V) | Power (kW) | Max Flow (M3/H) | Solar panel power | Max Head (M) | Outlet (IN) | Outer Diameter (MM) | Weight (KG) |
| 3LH0.9/32-D12/100 | Screw | 11--18 | 80--220 | 0.9 | 200w | 32 | 0.75" | 76*460 | 6.7 |
| 3LH1.0/30-D24/80 | 22-36 | 45-150 | 1 | 150w | 30 | 0.75" | 7 | ||
| 3LH1.3/50-D24/140 | 22-36 | 80-200 | 1.3 | 200w | 50 | 0.75" | 7.2 | ||
| 3LH1.5/80-D24/210 | 22-36 | 100-270 | 1.5 | 270w | 80 | 0.75" | 7.5 | ||
| 3LH1.5/100-D24/270 | 22-36 | 140-350 | 1.5 | 360w | 100 | 0.75" | 8 | ||
| 3LH1.5/120-D36/500 | 32-54 | 320-800 | 1.5 | 800w | 120 | 0.75" | 9 | ||
| 3LH2.3/80-D48/500 | 42-72 | 480-950 | 2.3 | 1000w | 140 | 0.75" | 9 | ||
| 3LH2.3/110-D48/750 | 42-88 | 600-1200 | 2.3 | 1200w | 160 | 0.75" | 9.5 | ||
| 3LH2.3/125-D72/1000 | 42-88 | 800-1500 | 2.3 | 1500w | 180 | 0.75" | 9.5 | ||
| 3LHI0.9/32-D12/100 | Screw | 11--18 | 80--220 | 0.9 | 220w | 32 | 0.75" | 6.7 | |
| 3LHI1.5/50-D24/140 | 22-36 | 80-200 | 1.3 | 200w | 50 | 0.75" | 7.2 | ||
| 3LHI1.5/80-D24/210 | 22-36 | 100-270 | 1.5 | 280w | 80 | 0.75" | 7.5 | ||
| 3LHI1.5/100-D24/270 | 22-36 | 140-350 | 1.5 | 360w | 100 | 0.75" | 8 | ||
| 4LH2.5/50-D24/270 | Screw | 22-36 | 140-350 | 2.5 | 360w | 50 | 1" | 100*480 | 9.5 |
| 4LH3/60-D36/500 | 32-54 | 300-700 | 3 | 700w | 60 | 1" | 10 | ||
| 4LH3.6/80-D48/750 | 42-72 | 450-1000 | 3.6 | 1000w | 80 | 1" | 10.5 | ||
| 4LH4/100-D72/1000 | 42-88 | 600-1300 | 4 | 1200w | 100 | 1" | 100*550 | 13.5 | |
| 4LH3/120-D72/1000 | 42-88 | 800-1550 | 3 | 1600w | 120 | 1" |

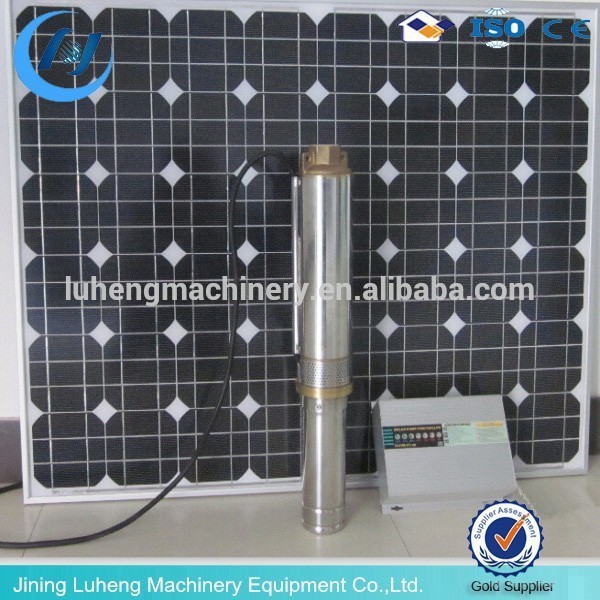

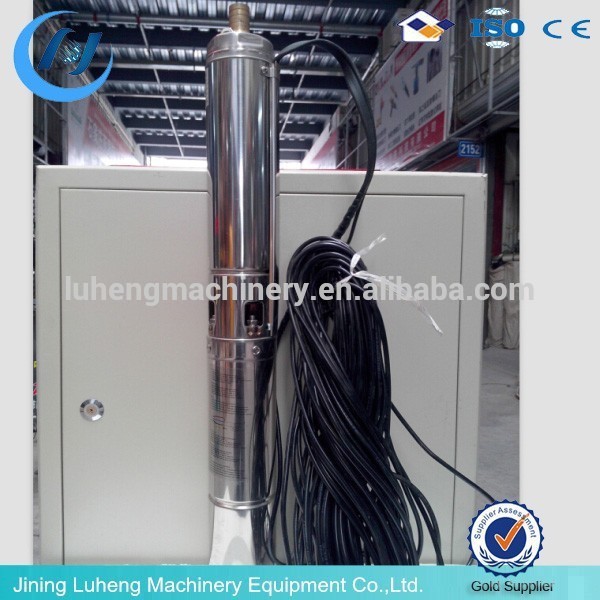

The real details photo
