- Place of Origin:
- Shandong, China
- Brand Name:
- LH
- Model Number:
- LUBJ1.8
- Structure:
- Screw Pump
- Usage:
- Water
- Application:
- Sewage
- Power:
- Electric
- Fuel:
- Diesel
- Pressure:
- High Pressure
- Certification:
- CE
- Warranty:
- 2 Years
- Product name:

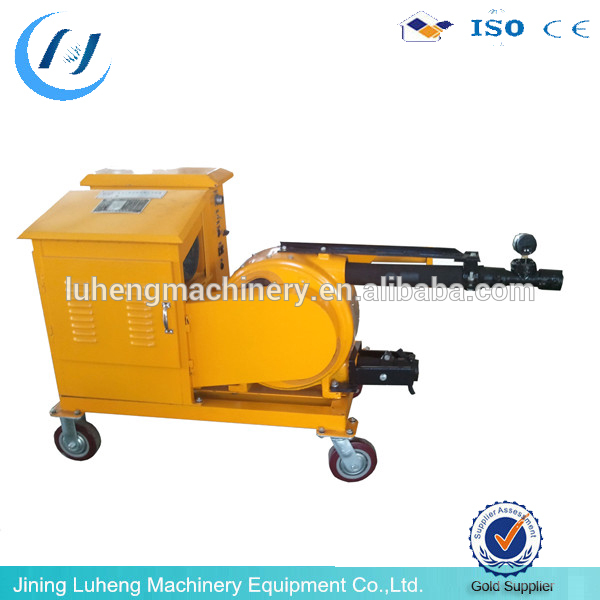

- cement injection grouting pump
- Delivery height (m):
- 5-50meters
- Dimensions (mm):
- 1410*834*863
- Pump height:
- 0-50meters
- Weight:
- 330KGS
- Standard or Nonstandard:
- Standard
- Theory:
- Jet Pump
- Supply Ability:
- 100 Set/Sets per Week cement injection grouting pump
- Packaging Details
- standard export packing
- Port
- qingdao
Product Application
1. The LUBJ series squeeze mortar pump is applicable for pressure grouting to engineering cavities and gaps.
2. With the anchor bolt supporting pressure grouting, tunnel wall filled with construction material, slope protection jet grouting, foundation engineering mixing &grouting.
3.The pump is applicable to highway, bridge, tunnel, mine, construction, reservoir and other projects.
4.Spray the bottom layer and various kind of surface layers for large area wall, conduct pressure grouting with stretching process after pressurization, mortar conveying, foundation construction pressure grouting, and be used for manufacturing the glass-fiber reinforced cement products in GRC industry.
Item | LUBJ1.8 | LUBJ3.0 | LUBJ1.8R | LUBJ3.0R |
Engine | electric engine 400V/50HZ | electric engine 400V/50HZ | Gasoline engine | Diesel engine |
Motor Power | 2.5/3.2kw | 3.2/4.0kw | 6.0kw | 6.0kw |
Output | 1.8m3/h | 3.0m3/h | 1.8m3/h | 3.0m3/h |
Delivery pressure | 1.5MPa | 2.0Mpa | 1.5MPa | 2.0Mpa |
Horizontal delivery distance | 0-100meters | 0-120meters | 0-100meters | 0-120meters |
Vertical delivery distance | 0-30meters | 0-50meters | 0-30meters | 0-50meters |
Hopper Volume | 200L | 200L | 200L | 200L |




Main Features
1.The mortar grout pump is Peristaltic pump.
2. It can be worked with feeding hopper or mortar mixer.
3.The mortar pump can be used for grouting, pumping and spraying.

Machine Parts
Name: Spraying pump
Brand: LH
Original: China
.
Main Features
Name: Spraying pump
Brand: LH
Original: China
