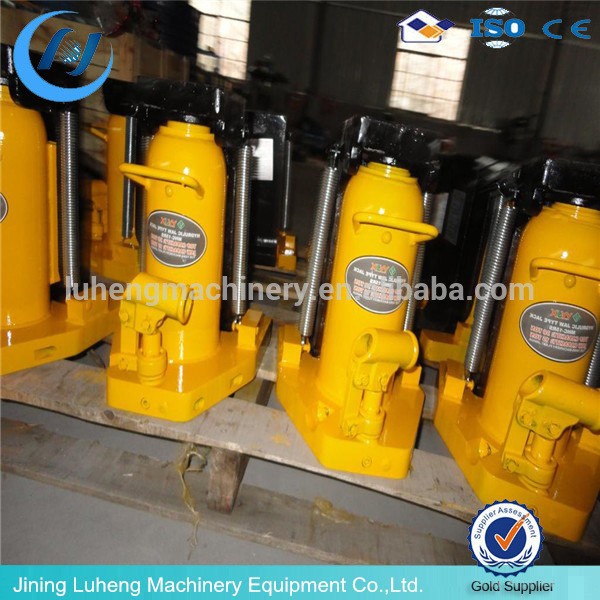

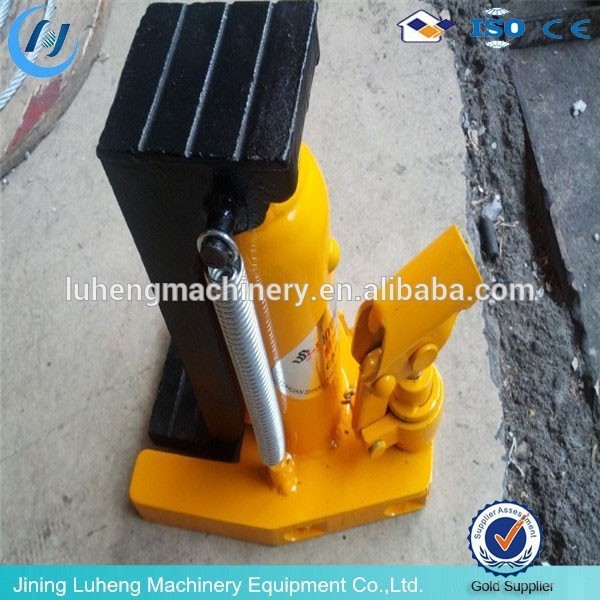

10Ton railroad jack mechanical rail track jack for sale

Click on the image to view the original image

Product：	views：1310Ton railroad jack mechanical rail track jack for sale
Branch：	LH
Type：	Mechanical Jack
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:43

Product Details

10Ton railroad jack mechanical rail track jack for sale WhatsApp:+8615853785289

Product Introduction

1,This series products have 5 specification ,MHC-2.5RS ,MHC-5RS ,MHC-15RS ,MHC -25RS .Widely used in machinery equipment, bridge construction, railway track of installation and maintenance, and transportation of heavy loading and unloading , automobile tractor repair,ect.

2, This series product is made of high quality steel, after heat treatment and welding, structure simple, easy operate , durable, high quality is stable, safe and reliable; Top and hook lifting combination, easy to low position operation, is a kind of widely used lifting tool.

3, This series product operating handle design for 180 degrees of rotation, according to different places, thus changing the Angle is more convenient to use.

4, Use the machine please pay attention to the follows .

a, The machine should put on a flat place when using , and avoid deflection .

b, It is strictly prohibit the lifting height more than the product requirement limit , or else leading to the Guide fall off from the machine.

c, Forbid the overload operation .

d, Don’t put your finger and feet below the object when using .

5,Before using keep the Guide lubrication ,keep the machine clean ,after use pay attention to put lightly ,not collision and arbitrary throws, if the bad thing occurs it will leading to damage and oil circuit malfunction.

Technology Parameters

Hydraulic jack	LH5	LH10	LH20	LH30	LH50
max. lifting of the top	5 tons	10tons	20 tons	30tons	50tons
max. lifting of the hook	2.5tons	5tons	10tons	15tons	25tons
max. lifting stroke	115mm	148mm	158mm	158mm	158mm
Mini.Hook Height	16mm	20mm	25mm	30mm	50mm
Size (mm)	210X140X232	260X200X283	295X220X322	305X255X350	340X285X350
Weight	11kgs	24kgs	36kgs	55kgs	75kgs
