sugar cane wheel loader loading machine mechanical loader
sugar cane wheel loader loading machine mechanical loader skype:sunnylh3
Product Introduction
1.Bolt -on edge savers and segments protect the cutting edge from unnecessary wear.
2.Articulated type, Mechnical steering, powerful shift transmission, easier operation.
3.Z-bar loader linkage is designed for maximun rigidity and offers powerful breakout
4.Bucket can be leveled automatically, optimaized working device, higher productivity.
5.Comfortable operation environment, new design cabin, Grammer seat, air-conditioner at option.
6.Gearbox and torque device has separable structure, reliable performance, convenient maintenance.
Technology Parameters
| Rated load: | 10ton |
| Bucket capacity | 4.5 m3 |
| Max log length | 13000mm |
| Max log diameter | 1500mm |
| Clamp front/rear inclination | 55°/40° |
| Dump height | 3200mm |
| Reach at full lift discharge | 1240mm |
| Overall length | :8980mm |
| Overall height | 3870mm |
| Overall width | 3120mm |
| Tread width: | 2390mm |
| Minimum ground clearance | 450mm |
| Turning angle | 35° |
| Grade ability | ≥24° |
| Max. traction force | 230KN |
| Hydraulic cycle time | 12sec |
| Machine weight | 31000kg |

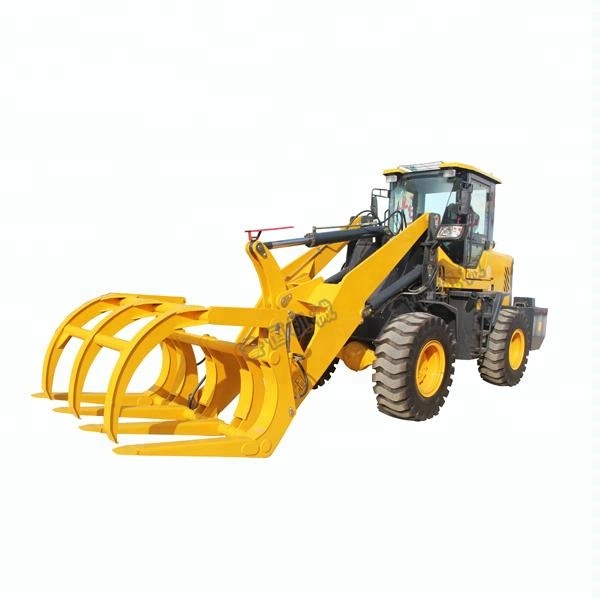

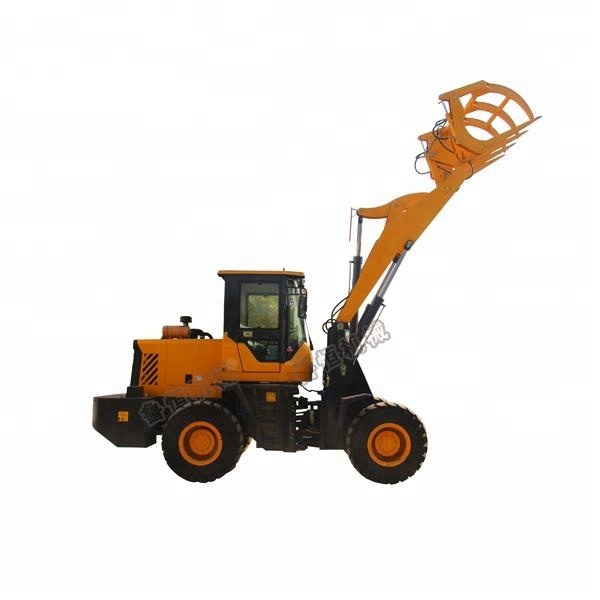

The real details photo
