- Type:
- Tie Plates
- Material:
- Steel
- Dimensions (L x W x H) (mm):
- 1480*762*1485mm
- Place of Origin:
- Shandong, China
- Brand Name:
- Luheng
- Model No:
- YD-22
- Power::
- 5.5KW
- Vaberation Frequency::
- 66.1hz
- Max.Inserting Force::
- 16kN
- Inserting Depth::
- Underneath the tie 110mm
- Hydraulic System Pressure:
- 5-6MPa
- Vibrating Force:
- 22KN
- Inserting Depth:
- 110mm±10mm
- Electric Motor::
- 360kg
- Diesel Engine::
- 445kg
Packaging & Delivery
- Selling Units:
- Single item
- Single volume:
- 2 cm3
- Single gross weight:
- 500.0 kg
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 10 >10 Est. Time(days) 10 To be negotiated
Promotion!!!Railway Track Tamping Machines with lowest price
Promotion!!!Railway Track Tamping Machines with lowest price
Product Introduction

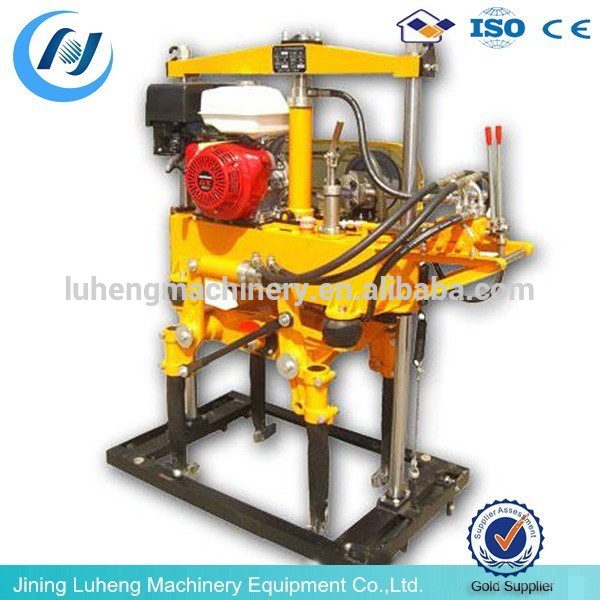

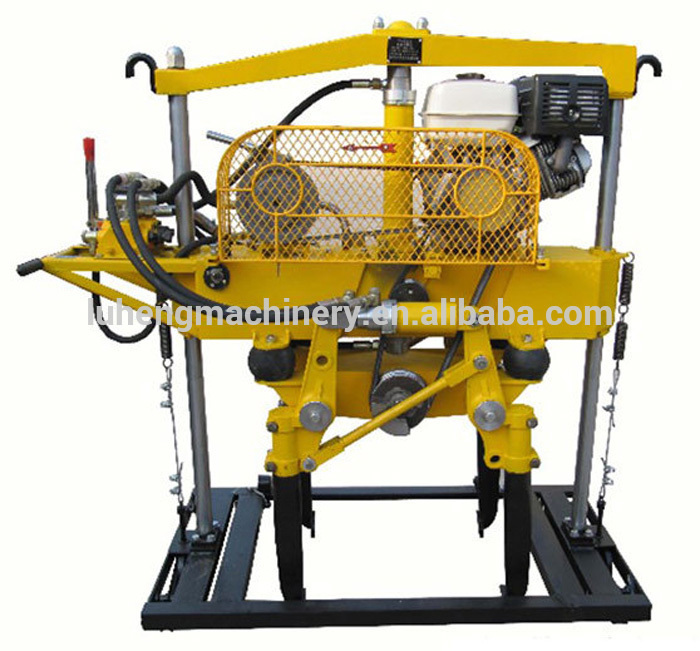

YD-22 hydraulic ballast tamping machine is a special purpose machinery used in the
maintenance of the railway works.
It is mainly used for the ballast tamping of the rail sleeper. It can be used to work in the interval time of the trains and no need for interval close. It has three kinds of engine:
gasoline, diesel and motor.
Technology Parameters
| Model | YD-22 Hydraulic Ballast Tamping Machine |
| Y132S-2 Electric Motor | 5.5KW |
| 2880r/min | |
| 380V/50HZ | |
| Hydraulic System Pressure | 5-6MPa |
| Vibrating Frequency | 60-67HZ |
| Vibrating Force | 22KN |
| Max.Insert Force | 16KN |
| Clamping Force | 6.5KNx2 |
| Inserting Depth | 110mm±10mm |
| Efficiency | ≥260pcs/(set·hour) |
| Weight | 350KG |
| Dimension | 1300x750x1600mm |
