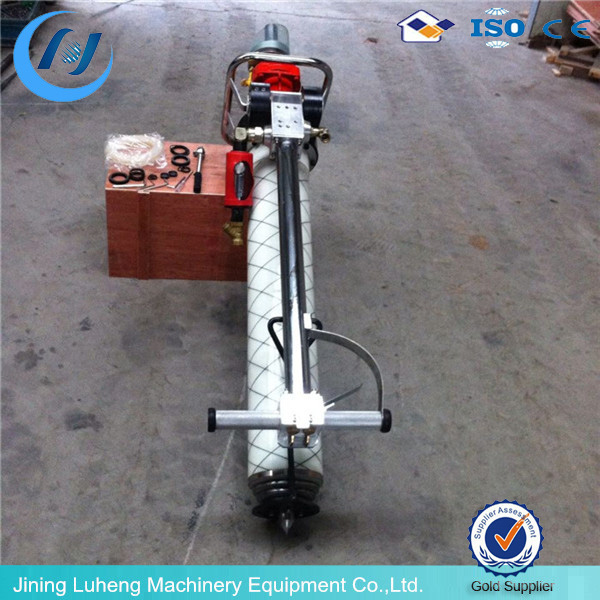

MQT-130 Pneumatic Jumbolter Drilling Rig Machine Roof Bolter for mining

Click on the image to view the original image

Product：	views：14MQT-130 Pneumatic Jumbolter Drilling Rig Machine Roof Bolter for mining
Branch：	Luheng
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:43

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: air

Place of Origin:: Shandong, China

Brand Name:: Luheng

Model Number:: MQT

Usage:: Coal

Voltage:: 380V

Power(W):: 2.4

Dimension(L*W*H):: 746*315*229mm

Weight:: 45KG

Certification:: ISO

Model:: MQT120

Stress range Mpa:: 0.4-0.63

Rated pressure Mpa:: 0.5

Rated torque n.m:: 120

Rated speed r/min:: ≥180

Maximum output power KW:: ≥3.0

Maximum load torque n.m:: ≥220

starting torque n.m:: ≥180

Load gas consumption:: ≤4.2

Weight Kg:: 52

Warranty:: 1 Year

After-sales Service Provided:: No overseas service provided

Supply Ability

Supply Ability:: 10000 Set/Sets per Year

Packaging & Delivery

Packaging Details: wooden case

Port: Qingdao

Product Description

Product Application

MQT series of Pneumatic Roofbolter Made in China Introduction
MQT series of Pneumatic Roofbolter Made in China
MQT series of Pneumatic Roofbolter Made in China are applicable to support with cable or bolt in coal laneway,half-coal laneway and rock laneway with rock hardness no more than 100MPa. They are combined with drilling,mixing and assembling. Dual exhaust model and new seals structure ensure the fast and smooth leg expansion and retraction. The unique silencer reduces noise,drilling shaft and leg center are perfect alignment,drilling stably.

SPECIFICATIONS
Parameter	MQT110	MQT120	MQT130
Stress range Mpa	0.4-0.63	0.4-0.63	0.4-0.63
Rated pressure Mpa	0.5	0.5	0.5
Rated torque n.m	110	120	130
Rated speed r/min	≥230	≥200	≥180
Maximum output power KW	≥2.4	≥2.6	≥3.0
Maximum load torque n.m	≥180	≥220	≥260
starting torque n.m	≥170	≥180	≥230
Load gas consumption m³/min	≤3.8	≤4.2	≤4.4
Maximum speed of revolution r/min)	620	500	460
Weight Kg	48	52	54

Main Features

1. Small volume, light weight, simple operation, convenient maintenance of gear type pneumatic motor, running stability, high reliability of new glass fiber reinforced plastic pneumatic design, safety explosion-proof longer service life.

2. Rock hardness f10 is mainly used in coal mine coal lane, rock bolt and anchor cable supporting drilling, and stirring and install the resin anchor rod, anchor rope, for with damping nut bolt, anchor drilling machine can be directly to tighten the nut when mixing, realize the bolt mixing, a complete installation, and meet the requirements of initial prestressing force anchor.
