Thermoplastic paint making machines/road marking paint machine

Click on the image to view the original image

Product：	views：12Thermoplastic paint making machines/road marking paint machine
Branch：	Hengwang
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:43

Product Details

Overview

Quick Details

Power(W):: Engines

Dimension(L*W*H):: 1100*980*1000mm

Weight:: 135kg, 180kg

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: Hengwang

Model Number:: HW

Features:: Thermoplastic

Certification:: ISO9001:2008

Name:: Road Line Paint Machine

Content of Paint container:: 100kg

Line marking wideth:: 100/150/200/300mm or adjust to requires

Line thickness:: 1.0-3.0mm

Speed:: 1.5km/h

Heating Temperature:: 180-230°C

Heating Method:: LPG

Suggest gas tank:: 25kg

Dimension:: 1400*900*1150mm

After-sales Service Provided:: No overseas service provided

Warranty:: 1 Year

Supply Ability

Supply Ability:: 1000 Set/Sets per Year

Packaging & Delivery

Packaging Details: wooden case

Port: Qingdao

Product Description

Product Application

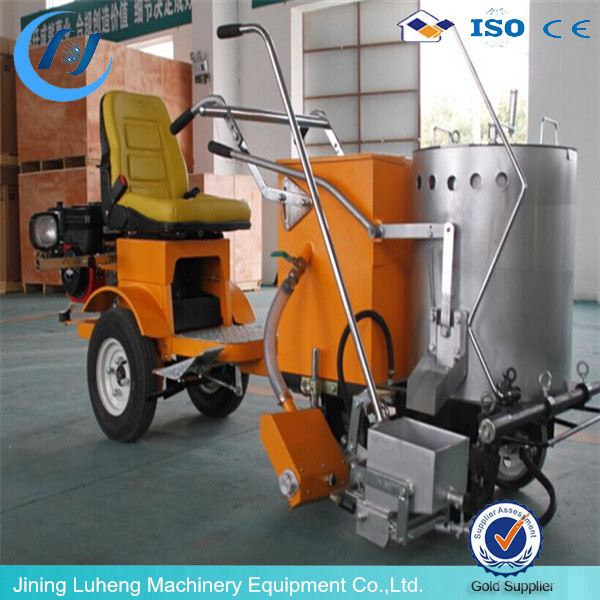

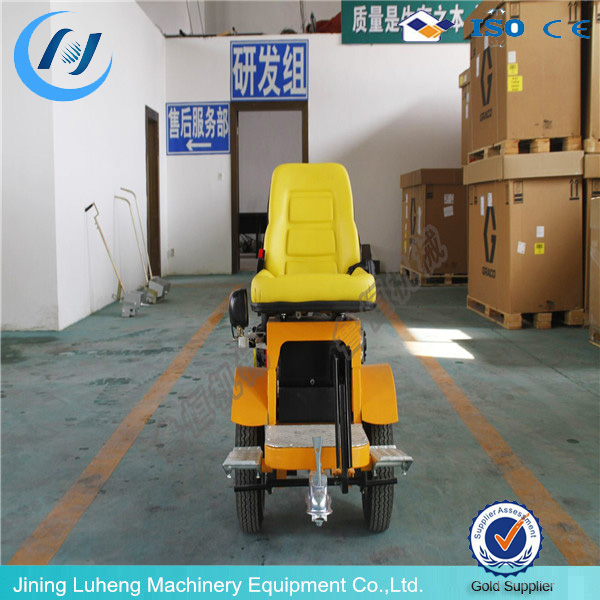

Hand-push thermoplastic road markng machine adopt single-handle marking shoe. It has advantage of easy using and hard to slip paint out. The glass beads spreader complete with speed control buffer devices and can change the width of glass beads according with needing. The positioner upon back wheel make sure the machine go straight. This machine has the advantage of high-quality construction, fast , flexible operation, convenient maintenance and so on. It can be suitable for highway, municipal roads, village or town road, guiding arrows, words, parking lines, factories etc.

Thermoplastic paint making machines/road marking paint machine

SPECIFICATIONS
Content of Paint container	100kg
Line marking wideth	100/150/200/300mm or adjust to requires
Line thickness	1.0-3.0mm
Speed	1.5km/h
Heating Temperature	180-230°C
Heating Method	LPG
Suggest gas tank	25kg
Dimension	14009001150mm
Weight	180kg

Main Features

1.Paint barrels: Stainless steel cylinder, high carbon steel pan (6 mm thick) capacity of 120 kg plug-in manually stirring device.
2. Glass Bead storage box: 10 kg / box
3. Glass beads sow browser: synchronous clutch spread with speed gearshift device
4. Crossed Doo: High-precision ultra-thin material manufacturing, scraper-type structure, the standard configuration of 150 mm
5. Landing knife: Carbide, with eccentric sleeve device can adjust the thickness of the scope marking: 1-2.5 mm
6. Tire: Alloy Wheel Unit, a special heat-resistant rubber, after the last round with positioning devices for the body along a straight line direction
7. Heating method: liquefied petroleum gas
8 Subscript Line Width: 150 mm engineering requirements in accordance with the replacement of different specifications crossed Doo.Thermoplastic paint making machines/road marking paint machine
