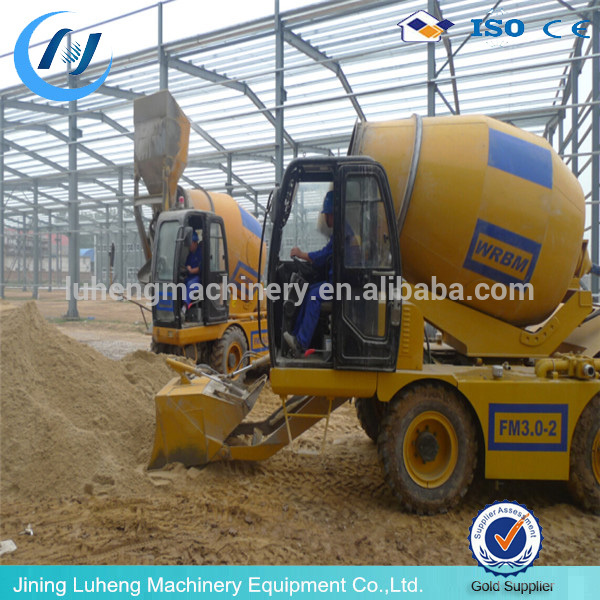

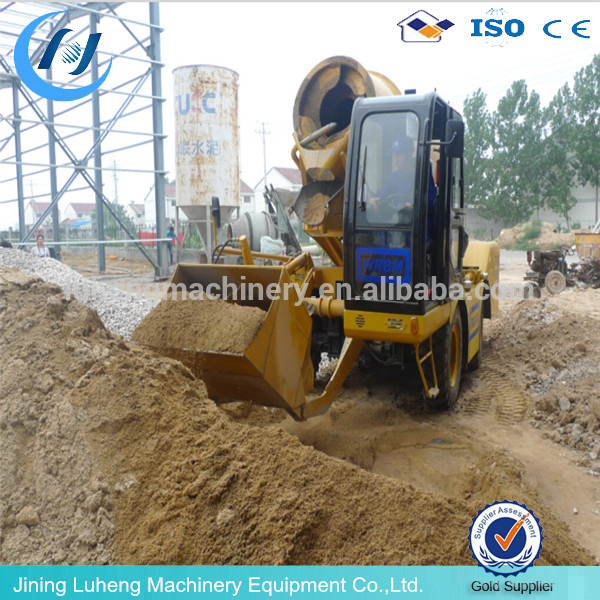

self loading concrete mixer truck used for concrete deposition and transportation

Click on the image to view the original image

Product：	views：9self loading concrete mixer truck used for concrete deposition and transportation
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:43

Product Details

Overview

Quick Details

Power(W):: 60kw

Weight:: 7500KG

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HW3.0

Dimension(L*W*H):: 6.715M * 2.28M *3.23M

Certification:: ISO9001

Name:: Self-Loading Concrete Mixer

PRODUCTIVITY:: up to 4 batches per hour

ENGINE:: YUCHAI YC4D85

TRANSMISSION:: 4 wheels drive,4 wheels steering.

LOADING SHOVEL:: Capacity 400 liters

TANKS:: Water: 2x300 liters

WEIGHT:: About Kg.7500

WATER SYSTEM::: Self-contained

HYDRAULIC SYSTEM:: Three circuits

SPEED:: 0 to 9 km/h

After-sales Service Provided:: Overseas third-party support available

Warranty:: 18 Months

Supply Ability

Supply Ability:: 1000 Set/Sets per Year

Packaging & Delivery

Packaging Details: standard export package

Port: Qingdao

Product Description

Product Application

1.The vehicle size is small, suitable for limited site and widely used in new rural construction, urban
construction ,tunne l ,airport ,seaport ,high-speed rail site and so on.
2. High strength steel plate, enhance vehicle load capacity. the vehicle with high stability3.Small capacity mixing drum design, the angle is lower than same profession, effectively reduce the gravity of vehicles ,improve thedriving safety.
3. Rolling ring and mixing drum use 16mn overall forging normalizing manufacturer and processing.
4.Mixing blade with varying pitch design, and simplify the feeding device, ensure the speed faster and mixing performance better.

SPECIFICATIONS
MIXING UNIT	Drum capacity 4.3 m3. Concrete output: 3.0 m3 per batch. The mixing unit is slewing hydraulically through 300°
PRODUCTIVITY	up to 4 batches per hour
ENGINE	YUCHAI YC4D85 water-cooled, 4cylinders. Rated power 60KW/2200rpm .
TRANSMISSION	4 wheels drive,4 wheels steering.
SPEED	Working speed from 0 to 9 km/h, road transfer from 0 to 20 km/h.
DRIVING SEAT	Front cab on side of loading shovel. ROPS-FOPS type complete with double closing door.
HYDRAULIC SYSTEM	Three circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 1 gear pumps for services. Inlet and outlet filter. Heat exchanger water/oil-air type.
JOYMIX	All hydraulic functions of shovel controlled by a single - fully servo controlled Joystick.
LOADING SHOVEL	Capacity 400 liters, complete with hydraulic opening gate.
CHUTE	Slewing and hydraulically tilting. Fitted with two pins easily detachable to increase the discharge height.
WATER SYSTEM:	Self-contained. Hydraulic driven water pump, water meter. High pressure water pump & washing gun(on request).
BRAKES:	Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake.
TYRES	10.00-20-16
ELECTRIC SYSTEM	24 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.
TANKS	Water: 2x300 liters. Diesel: 100 liters. Hydraulic oil: 125 liters.
CHASSIS	Steel profile specially engineered for off-road operations.
WEIGHT	About Kg.7500, equally distributed on both axles
OVERALL DIMENSIONS	Long: 6.715M Width 2.28M High: 3.23M
SAFETY	Machine equipped with checking and block valves for maximum safety of the operator.
