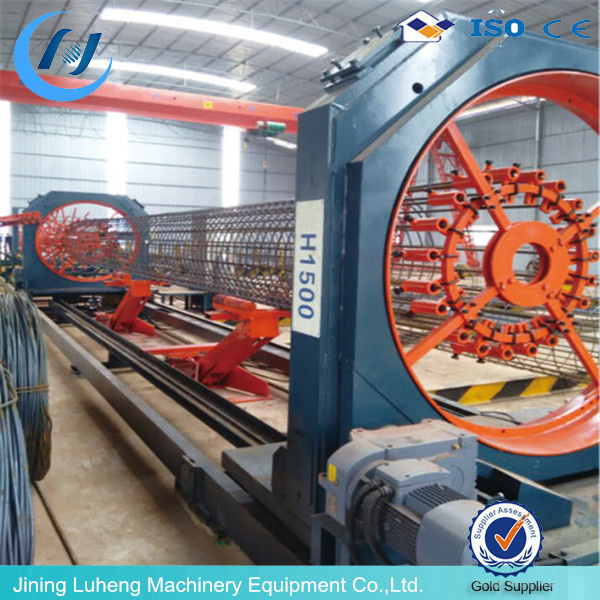

Pile Cage Making Machine Introduction

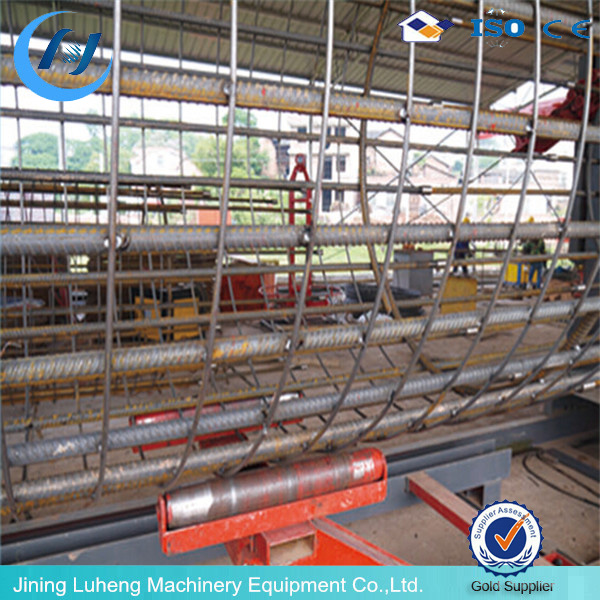

Pile cage making machine can process the pile cage by 12m-27m automatically. Based on requirement of construction, the latitudinal rebar will be inserted into the sleeves which fixed on the rotating disk, take longitudinal circle wire and welding it on one latitudinal rebar, when the machine driven and the rotating disk rolling, the longitudinal circle wire will be twines around the rebar, when the disk is moving, it is also rotating, then it will be pile cage. It is controlled by programmable logic controller, the power will be offered by servo motor. There are also hydraulic lifting device under the cage for supporting, welding guns can work automatically according to order.
Automatic Cage Welding Machines are designed as unit construction systems which enables our customers to be flexible in considering the individual interests and requirements. A special version of the Automatic Cage Welding Machine producing polygonal reinforcement cages also sells very well. With this machine, reinforcement cages for pillars and supporting beams can be manufactured as well as reinforced concrete elements, foundation piles etc.
Main Features
1.High Automation
It is controlled by computer and operate on touch screen, meanwhile, welding automatically by welding guns.
2. Quick Welding
Welding automatically by welding guns, one welding point just take one second, it can be three or four times fasterthan traditional artificial mode.
3.Stable Quality
High quality welding point, accurate rebar spacing, good synchronicity. The accurate longitudinal circle wire spacing provides basis for quick butt welding.
4. Intensity of labor is decreased
Two or three workers can operate well on this machine
5.Easy operation
The worker can operate it well after short training.
6.High adaptive capacity
It apply to the pile cage welding with the rebar by 12-50mm, the longitudinal circle wire spacing can be adjustedautomatically. The length of pile cage is 12m-27m.
7.Customizable
According the requirement , the pile cage with double main reinforcement or butt welding can be customized.
8.Convenient transportation and installation
It adopts modular design, the raw material device, main engine and conveying device can be dismantled, every part of it can be hoisted.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
