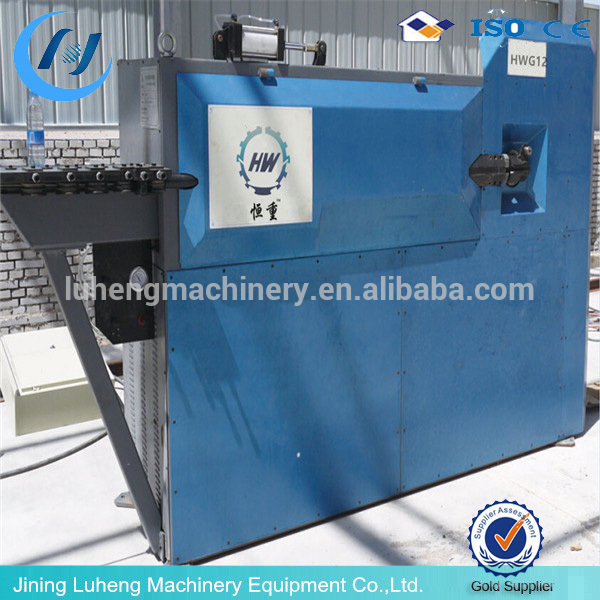

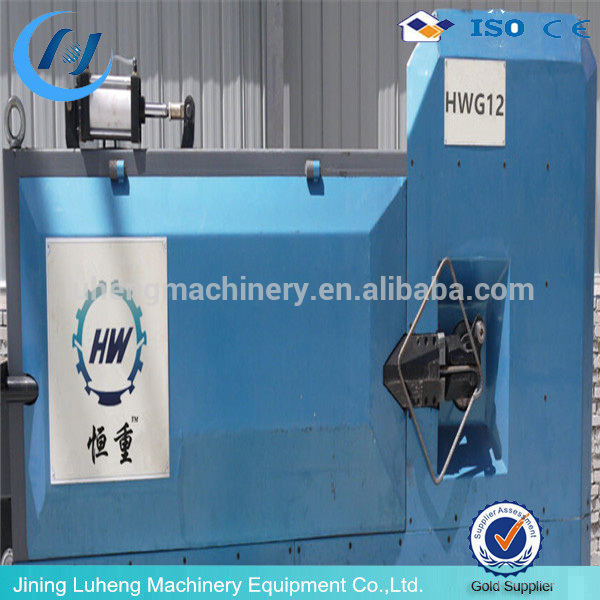

Hydraulic reinforced straightening cutting bending hoop machine

Click on the image to view the original image

Product：	views：11Hydraulic reinforced straightening cutting bending hoop machine
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:43

Product Details

Overview

Quick Details

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HW12

Machine Type:: Beading Machine

Raw Material:: Steel Bar

Material / Metal Processed:: Stainless Steel

Power:: CNC

Automation:: Automatic

Extra Services:: Welding / Brazing

Certification:: ISO 9001:2000

Name:: AUTOMATIC STIRRUP BENDER

diameters with single strand:: 6-12mm

diameters with double strands:: 6-10mm

max bending angle:: 180°

max pulling speed:: 90-110m/min

max bending speed:: 1100°/sec

length tolerance:: ±1mm

rated electric power:: 25.5KW

overall machine weight:: 4800kgs

Machine size:: 8500x2600x2580mm

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 10000 Set/Sets per Year

Packaging & Delivery

Packaging Details: EXPORT STANDARDPACKING

Port: Qingdao

Product Description

Product Application

1. Our Reinforcing bending hoop machine adopt servo controlling system;
Automatically accomplish the functions of rebar"s feeding, straighten, bending and cutting etc;
2. Max bending diameter of rebar is 12mm;
3. Continuously bend various stirrup of plane figure;
4. Widely used in construction industry and rebar manufacturing enterprise;
5. High efficiency and accurate processing precision.

SPECIFICATIONS
diameters with single strand	6-12mm
diameters with double strands	6-10mm
max bending angle	180°
Length scope of the stirrup side	80-1300mm
max pulling speed	90-110m/min
max bending speed	1100°/sec
length tolerance	±1mm
bending tolerance	±1°
rated electric power	25.5KW
overall machine weight	4800kgs
Machine size	8500x2600x2580mm
payoff	Coils storage,With brake system by compressed air
Main machine
Controll cabinet	Industry computer and two servomotors from GERMANY or JAPAN
Air compressor	be included
Spare parts and tools	FREELY

Main Features

1. This equipment adopt servo controlling system;
2. Fully automatically accomplish the functions of rebar"s feeding, straighten, bending and cutting etc; can be processed in various sizes square, rectangle, triangle, polygon, etc.
