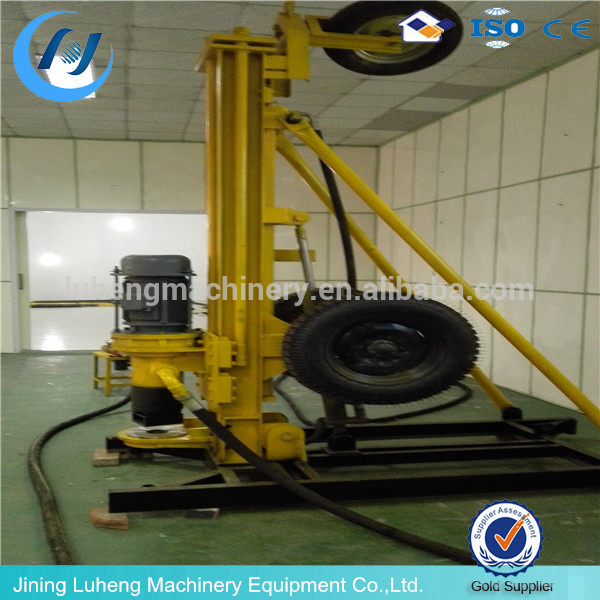

Down-the-hole hard rock electric drill machine/ pneumatic borehole drilling rig
Down-the-hole hard rock electric drill machine/ pneumatic borehole driling rig
Product Introduction
Features:
1.High drilling efficiency, power provided by energy saving motor
2.High efficiency, large rotary torque
3.Simple structure and easy to move
4.Adopt consummate design, long service life
5.Easy to operating
Introductions:
HQZ series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The rig can be Chuanzao work on different formations, drilling diameter up to 254mm. The rig adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
Technology Parameters
Parameter Value
Drilling diameter (mm) 100 ~ 254
Drilling depth (m) 200
Drilling direction (°) to the ground 45 to 90
Disposable drill propulsion Length (mm) 1500
Motor power 11KW ~ 15KW
Diesel Power (HP) 18.5
Swing speed drill 52
Air Pressure (Mpa) 1.45 ~ 2.5
Air consumption (L / min) 21
Total weight (KG) 1800

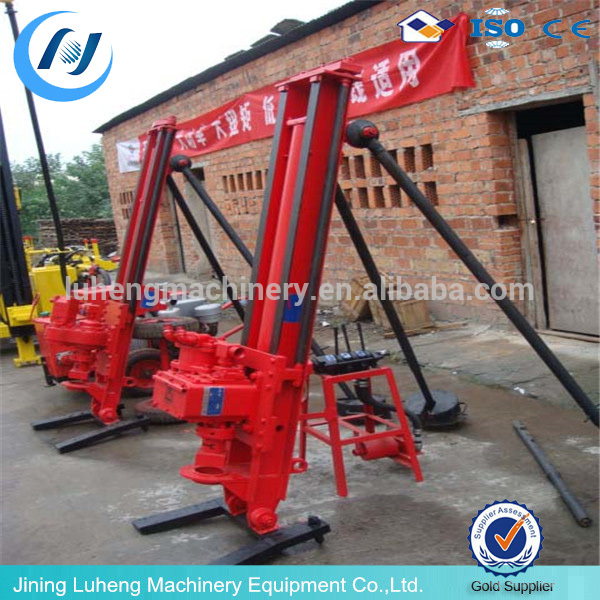

The real details photo
Good Cooperation
Transaction history
Quality Certificate
Transport and Shipping
