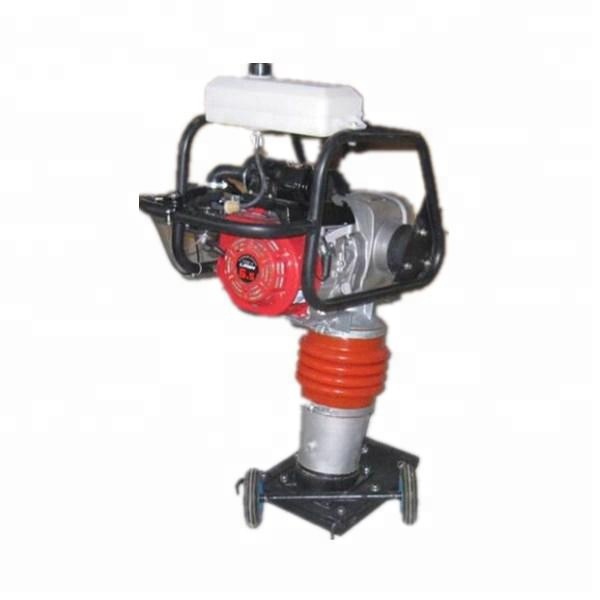

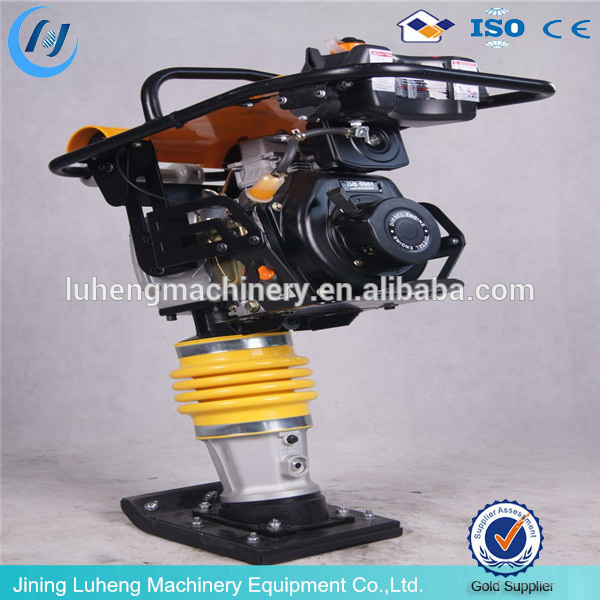

Gasoline honda power earth sand soil wacker jumping jack multiply compactor tamper vibrating tamping rammer

Click on the image to view the original image

Product：	views：9Gasoline honda power earth sand soil wacker jumping jack multiply compactor tamper vibrating tamping rammer
Branch：	LH
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:43

Product Details

Overview

Quick Details

Warranty:: 2year

Power(W):: 3KW

Weight:: 77KG

Certification:: ISO

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: LH

Voltage:: gasoline

Dimension(L*W*H):: 0.72m*0.42m*1.07m

name:: Tamping Rammer

Engine Type:: Robin EH12-2D

Power kw(hp):: 3.0(4.0)

Weight kg(lbs):: 77(169)

Fuel Tank L:: 2.8

Impact Number(number per minute):: 450-650

Package (cm):: 57*51*104

Walk Speed:: 17-20mm/s

usage:: construction

Optional Engine:: Chinese Loncin

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 10000 Piece/Pieces per Day

Packaging & Delivery

Packaging Details: wooden case

Port: qingdao

Gasoline honda power earth sand soil wacker jumping jack multiply compactor tamper vibrating tamping rammer

Gasoline honda power earth sand soil wacker jumping jack multiply compactor tamper vibrating tamping rammer skype:sunnylh3

Product Description

Features:

1- Aluminum alloy for lighter weight and better thermal diffusivity

2- 20CrMnTi alloy gears for higher intensity and higher wearing resistance

3- 65Mn steel springs for higher elasticity

4- PU bellow with higher intensity and longer durability

5- Powder metallurgy clutch for better transmissibility and higher wearing resistance

6- Forged alloy steel plate wraped with high intensity rubber for higher intensity and better shock

absorption

Technology Parameter

Model	Rammer LH60	Rammer LH70 (Mikasa style)
Engine	Honda GX160 5.5HP	ROBIN EH12 4HP or GX100 3HP
Bello	Polyurethane Dust-guard Bellow	Polyurethane Dust-guard Bellow
Take off high	40-65mm	85mm
Tamping Depth	55mm	65mm
Impact Frequency(/M)	420-650	680-710
Walk Speed	17-20mm/s	17-22mm/s
Plate Size	340mm*285mm	340mm*290mm
Optional Engine	Chinese Loncin	HONDA or Robin

Model	Rammer LH80	RammerLH100 (Wacker stye)
Engine	Honda GX160 5.5HP	Honda GX100 3HP
Bello	Polyurethane Dust-guard Bellow	Polyurethane Dust-guard Bellow
Take off high	40-65mm	65mm
Tamping Depth	55mm	55mm
Impact Frequency(/M)	420-650	600
Walk Speed	25mm/s	28mm/s
Plate Size	330mm*285mm	340mm*285mm
Optional Engine	Chinese Loncin	Null
