Click on the image to view the original image
- name:
- hydraulic punch driver
- weight:
- 8kg
- color:
- yellow
- Output:
- 35T
- Aperture:
- 3/8MM
- max thickness of sheet:
- 10mm
- Metal plate:
- 6-13MM
- depth of throat:
- 95-115MM
- Size:
- 35*25*11
- stock:
- be in stock
- Place of Origin:
- Shandong, China
- Type:
- split-unit hydraulic punch driver
- Brand Name:
- LH
- Model Number:
- CH
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 50X50X50 cm
- Single gross weight:
- 20.0 kg

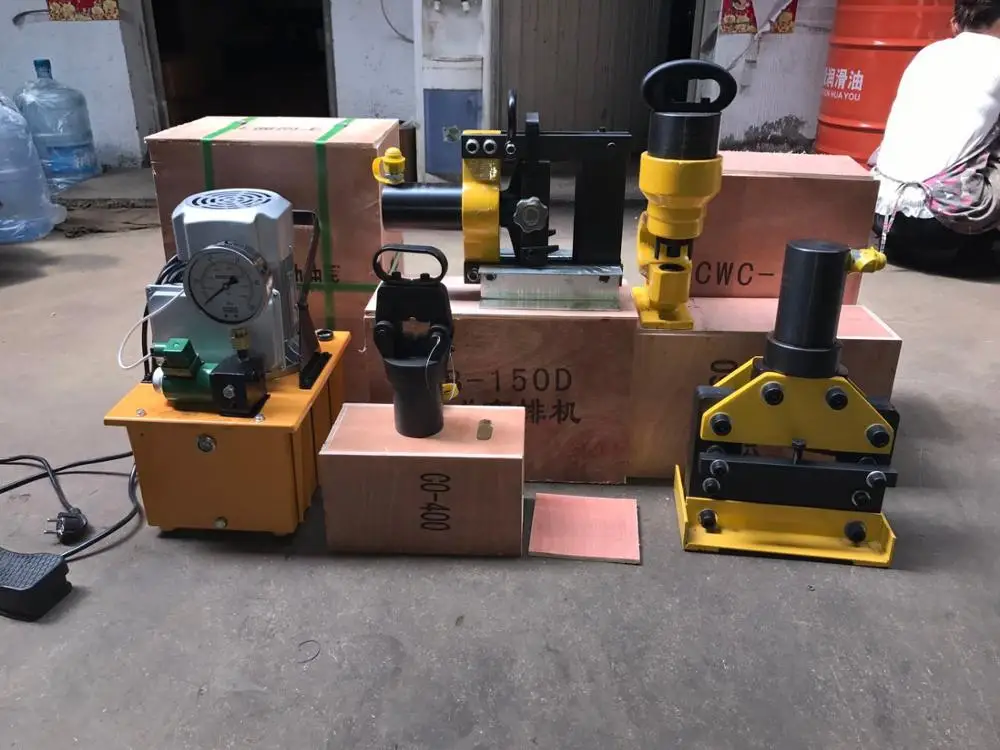

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 20 >20 Est. Time(days) 2 To be negotiated
Product Introduction
CH-60 hydraulic pressure hole puncher for angle iron
1 It is used for punching holes on Cu/AI bus bar.
2 Punching force: 35T
CH-60 Split-unit hydraulic puncher hole machine
CH-60 Punching the different kind of metal sheet up to 10mm
CH-60 Hydraulic punching tool for punching hole on 10mm below metal plate.
Max thickness of sheet: 10mm
Punching force:31KN
Depth of throat:95mm
Weight:approx.18kgs

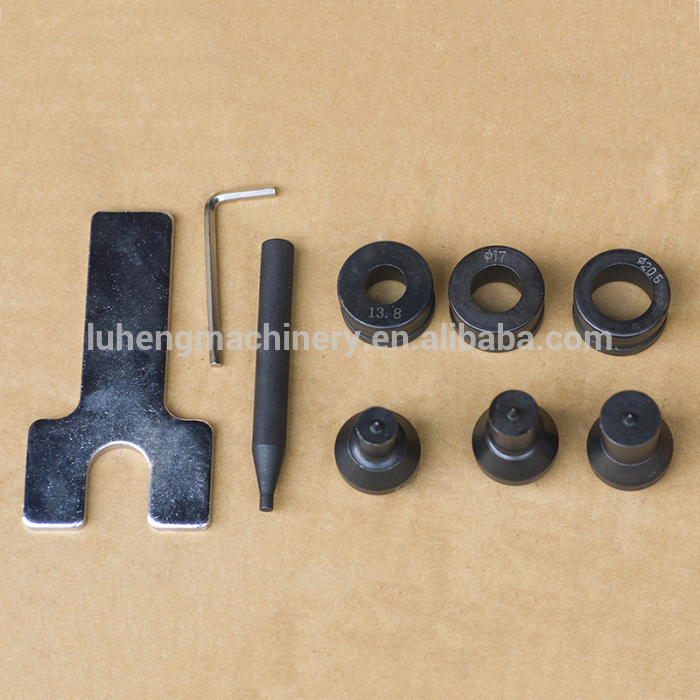

ACCESSORIES:
3/8"(ø10.5mm),1/2"(ø13.8mm),5/8"(ø17mm),3/4"(ø20.5mm)
Another type
FM-YP8
Punching force:30T
Hydraulic Power required: 63MPa, 0.52 L/min
Connecting with threaded connector PT3/8”-19
Throat depth: 95 mm
Punching capacity: 8 mm mild steel, 10 mm cupper and Alumiunm
Net Weight: 15KG
Standard Accessories: 4 sets of round hole punching die for Dia. 7.0mm, 9.0mm, 11.00mm and 13.00mm

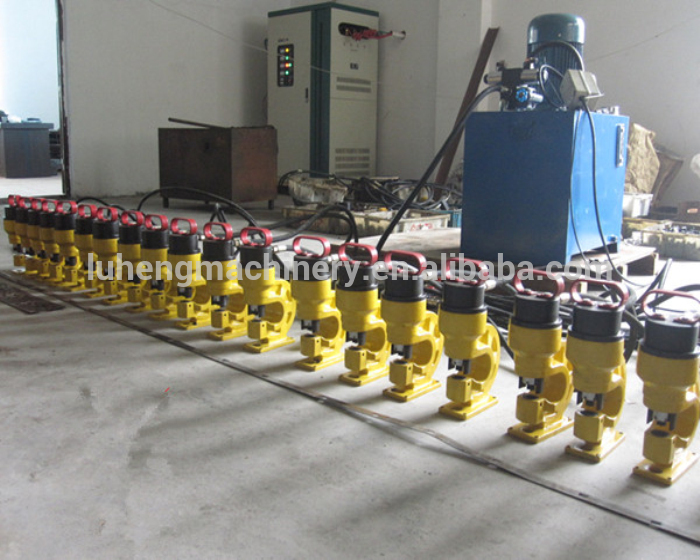

The real details photo
