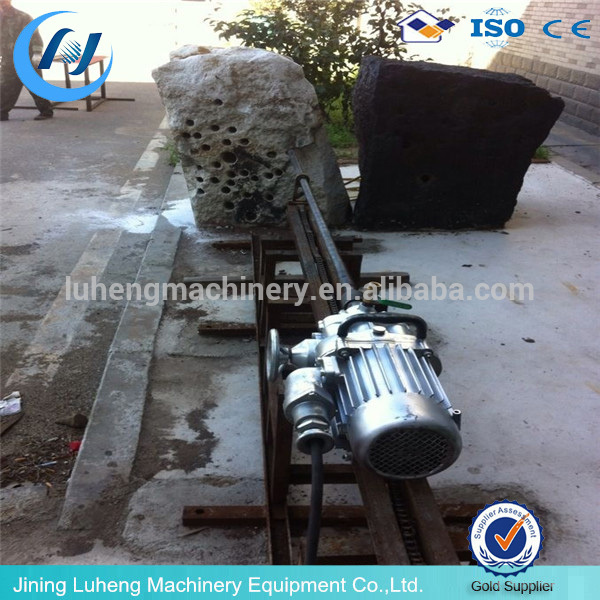

Mining horizontal directional drilling machine/electric rock drill

Click on the image to view the original image

Product：	views：10Mining horizontal directional drilling machine/electric rock drill
Branch：	LUHENG
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:43

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Electric

Place of Origin:: Shandong, China

Brand Name:: LUHENG

Model Number:: KHYD

Usage:: Coal

Voltage:: 380/660v

Power(W):: 2KW,3KW,5.5KW,7.5KW

Dimension(L*W*H):: 950x460x430mm

Weight:: 40kg, 40kg

Certification:: ISO

Model:: KHYD

Drilling dia for rock:: 42mm

Drilling dia for mine:: 45-60mm

Drilling depth for rock:: 5m

Drilling depth for mine:: 20-60m

Spindle speed:: 2814r/min

Brand:: LUHENG

Power:: 2KW

Color:: blue/silvery

Warranty:: one year

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 1000 Set/Sets per Year

Packaging & Delivery

Packaging Details: wooden box /packingaccording to customers' requirements

Port: QINGDAO/SHANGHAI

Mining horizontal directional drilling machine/electric rock drill

Product Introduction

1.Electric rock drill is used for drilling burst mine hole in rock.

2. It is widely used in the mine shaft excavation, road construction, water conservancy construction, metallurgy mining, rock engineering, quarry operation, basic engineering drilling reinforcement construction process.

3.The explosion-proof electric rock drill is used for drilling water injection hole, on coal seam, exploring water holes and discharging gas, also can be used for soft rock tunnel excavation.

4.they can do wet type and dry type work (equipped with twist drill rod). Drills holes horizontally forward or tilt up, only need to control the handwheel, the drill will track forward and backward automatically on the railway.

Technology Parameters

Model	Drilling dia. for rock	Drilling dia. for mine	Drilling depth for rock	Drilling depth for mine	Spindle speed	Power	weight
KHYD40	42mm	45-60mm	5m	20-60m	2814 r/min	2kw	40kg
KHYD75	42mm	45-80mm	10m	30-80m	1420 r/min	3kw	75kg
KHYD140	42-80mm	80-100mm	20m	30-80m	1440 r/min	5.5kw	140kg
KHYD150	42-80mm	80-120mm	25m	40-100m	1440 r/min	7.5kw	150kg
round dril rod / Twist drill rod alloy bit and slide
