Manual Pallet Stacker, manual pallet stacker
Features:
1. Manual hydraulic stacker/ small forklifts .
2. Excellent performance and highly reliable.
3. Smooth operation, compact structure and small turning radius
4. Widely common use in cargo stacking in factory, workshop, warehouse, station
Hydraulic Forklift Application :
The Manual hydraulic forklift is a non-powered, non-polluting equipment , It has elevating balanced, compact, transport flexibility, simple operation, small radius of rotation, which is widely used in factories, workshops, warehouses, railway stations, wharf cargo handling and stacking, etc., It is more applicable for those with fire, riot space requirements (such as printing plant, oil depots, docks, warehouses, etc.)
Hydraulic Forklift parameter :
Model |
| CTY-1T | CTY-1.5T | CTY-2T | CTY-3T | |
Load Capacity | kg | 1000 | 1500 | 2000 | 3000 | |
Lifting Speed | mm/time | 26 | 17 | 13.6 | 8 | |
Min. Fork Height | H1 mm | ≤85 | ≤85 | ≤85 | ≤85 | |
Max.Lift Height | H2 mm | 1500 | 1500 | 1500 | 1500 | |
Single Fork Width | W1 mm | 80 | 80 | 100 | 100 | |
Fork Length | L1 mm | 750 | 750 | 930 | 1000 | |
Adjustable Fork Width | W2 mm | 450 | 450 | 620 | 620 | |
Fork Wheel | mm | Ø80 | Ø80 | Ø80 | Ø80 | |
Steering Wheel | mm | Ø200 | Ø200 | Ø200 | Ø200 | |
Turning Radius | mm | 1190 | 1190 | 1252 | 1252 | |
Overall | Length | L mm | 1220 | 1220 | 1520 | 1620 |
Width | W mm | 625 | 625 | 830 | 850 | |
Height | H mm | 1935 | 1935 | 1940 | 1970 | |
Net Weight(kg) |
| 168 | 230 | 303 | 420 | |

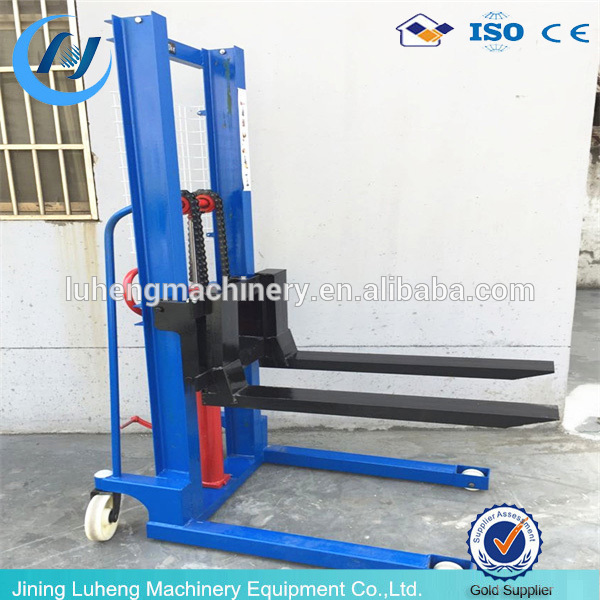

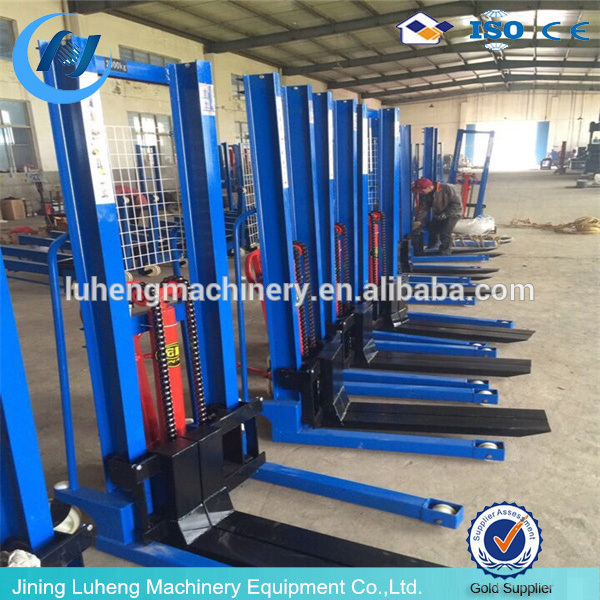

Hydraulic Forklift Pictures :
