- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- LH
- Type:
- Manual Pallet Truck
- Power Souce:
- DC Motor
- Max. Lifting Height:
- 1600mm
- Min. Lifting Height:
- ≤100mm
- Fork Length:
- 800mm/900mm
- Fork Width:
- 580mm/550mm
- Overall Dimensions:
- 1280*740*1980mm
- Certification:
- iso
- Warranty:
- 1 Year
- After-sales Service Provided:
- Online support
- Product Name:
- 3 ton manual hydraulic stacker price, manual pallet stacker
- Color:
- Customised
- Power type:
- Manual Hydraulic Lifting Pallet Truck
- Weight:
- 240kg
- Loading Capacity:
- 3ton
- wheel diameter:
- 80mm
- single Lifting height:
- 10mm
- Suggested that fork lift height:
- 2400mm
- Feature:
- Easy Operation Safety Convenience
- Application:
- Material Handing Equipment
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 128X74X198 cm
- Single gross weight:
- 240.0 kg
- Package Type:
- regular export packaging for 3 ton manual hydraulic stacker price, manual pallet stacker
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 10 >10 Est. Time(days) 15 To be negotiated

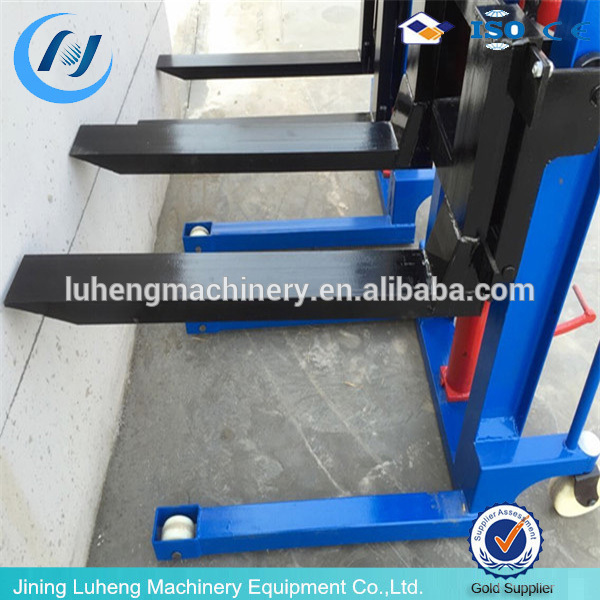

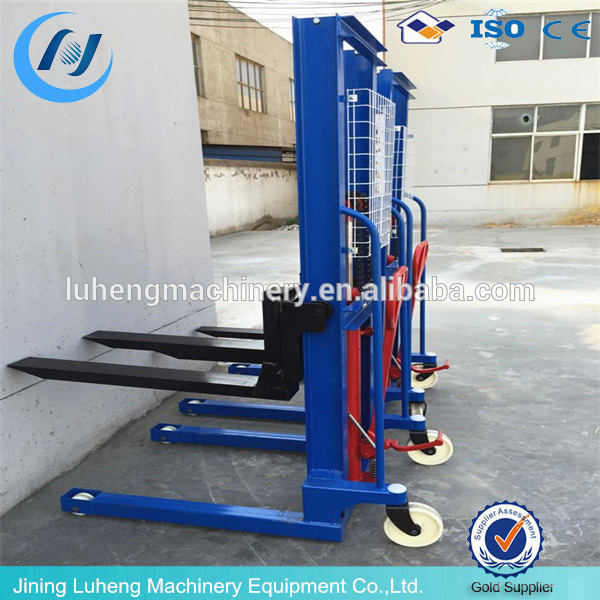

3 ton manual hydraulic stacker price, manual pallet stacker
The Manual hydraulic forklift is a non-powered, non-polluting equipment , It has elevating balanced, compact, transport flexibility, simple operation, small radius of rotation, which is widely used in factories, workshops, warehouses, railway stations, wharf cargo handling and stacking, etc., It is more applicable for those with fire, riot space requirements (such as printing plant, oil depots, docks, warehouses, etc.
Features of manual pallet stacker:
1. Manual hydraulic stacker/ small forklifts .
2. Excellent performance and highly reliable.
3. Smooth operation, compact structure and small turning radius
4. Widely common use in cargo stacking in factory, workshop, warehouse, station
Specification for manual pallet stacker | ||||
Model | LH-1T | LH-1.5T | LH-2T | LH-3T |
Load Capacity/kg | 1000 | 1500 | 2000 | 3000 |
Lifting Speed mm/time | 26 | 17 | 13.6 | 8 |
Min. Fork Height H1 mm | ≤85 | ≤85 | ≤85 | ≤85 |
Max.Lift Height H2 mm | 1500 | 1500 | 1500 | 1500 |
Single Fork Width W1 mm | 80 | 80 | 100 | 100 |
Fork Length L1 mm | 750 | 750 | 930 | 1000 |
AdjusAdjustable Fork Width W2 mmtable Fork Width W2 mm | 450 | 450 | 620 | 620 |
Fork Wheel mm | Ø80 | Ø80 | Ø80 | Ø80 |
Steering Wheel mm | Ø200 | Ø200 | Ø200 | Ø200 |
Turning Radius mm | 1190 | 1190 | 1252 | 1252 |
Overall Length L mm | 1220 | 1220 | 1520 | 1620 |
Width W mm | 625 | 625 | 830 | 850 |
Height H mm | 1935 | 1935 | 1940 | 1970 |
Net Weight(kg) | 168 | 230 | 303 | 420 |






Packing and delivery for manual pallet stacker:
1. Delivery by sea :After it was delivered to the seaport . We will tell you the shipping time and arrival time . Finally, we"ll send you all original documents by Express for free .
2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport . We will tell you the Express tracking number .
3.Deliver it to the warehouse which you have requested . We will tell you logistic or express tracking number .


Jining Luheng Machinery Equipment Co.,Ltd.
Jining Luheng Machinery Equipment Co.,Ltd. is the professional manufacturer of manual pallet stacker. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.


Why choose us?
Q1. Are you manufacturer or trader?
A: We are manufacturer of manual pallet stacker. Actually, we produce most of the parts in our own factory for better cost and quality control.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% against copy of B/L.
Q3. How about your delivery time?
A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. Sometimes we have some in stock.
Q4. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We"d like to cooperate with some local partner to sell more World machines in local market and supply better service.
Q5. What is your warranty policy?
A: We can supply one year warranty or 2000h for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We trust "win-win situation",we never said our product is best,and maybe our price is not cheapest,but we trust we are your right choice.Because we pay attention to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Contact us for more details about price,packing,shipping and discount.
