Excavator Mounted Hydraulic Vibro Hammer/Vibratory Sheet Pile Driver

Click on the image to view the original image

Product：	views：10Excavator Mounted Hydraulic Vibro Hammer/Vibratory Sheet Pile Driver
Branch：	HW
Size：	615X215X270 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:43

Product Details

Overview

Quick Details

Piling Speed(m/min):: 1-2m/min

Efficiency:: Day

After-sales Service Provided:: Video technical support

Warranty:: 1 Year

Applicable Industries:: Construction works

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Weight:: 7200kg

Dimension(L*W*H):: 4370*2010*4290

Certification:: ISO

UNIQUE SELLING POINT:: High load Moment

rated power:: 85kw

rated speed:: 2400r/min

starting voltage:: 24v

min ground interspace:: 380mm

Drilling diameter:: 130-800mm

max drill depth:: 3600mm

rod rotation speed:: 71r/min

climb angle:: 35

max travel speed:: 5km/h

main valve flow:: 100l/min

Packaging & Delivery

Selling Units:: Single item

Single package size:: 615X215X270 cm

Single gross weight:: 6500.0 kg

Package Type:: NO PACKAGE

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	10	To be negotiated

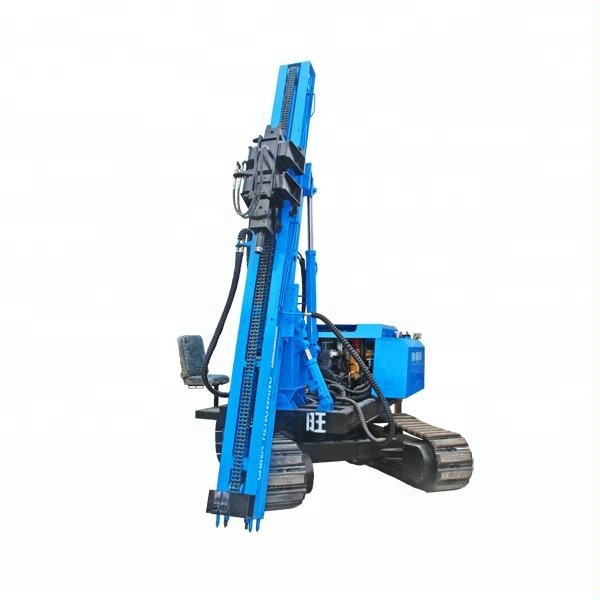

Excavator Mounted Hydraulic Vibro Hammer/Vibratory Sheet Pile Driver

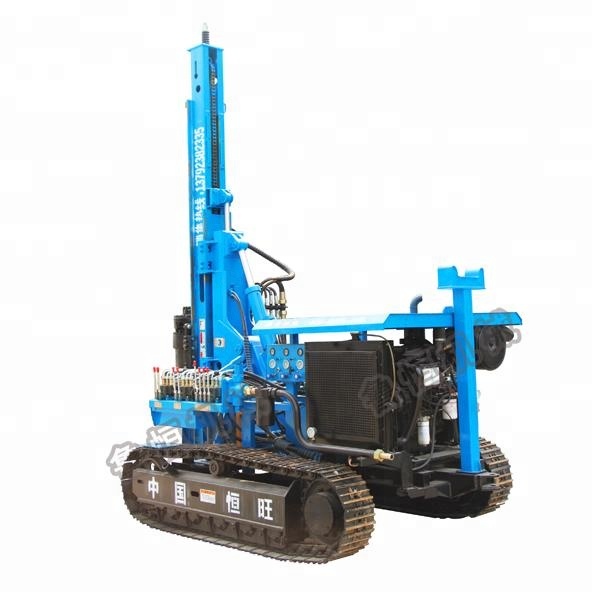

Excavator Mounted Hydraulic Vibro Hammer/Vibratory Sheet Pile Driver

Product Application

The hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling

Crawler walking,high walking and climbing ability .The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.

Main Features

1) Pile Driver is composed of the chassis, guide rail, hydraulic arm, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control systems, pile extracting equipment and pile drilling equipment. Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency .

2).Oil province,is a common driver uses around half of a year can be a driver left money for you.

3).Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.

4).Crawler walking,high walking and climbing ability

5).The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.

Technology Parameter

Excavator Mounted Hydraulic Vibro Hammer/Vibratory Sheet Pile Driver

Model	HWL300	HWL300R	HWL500R	HWL600R
Hammer Model	390	390	390	390
stroke m	3m	3m	5m	6m
Duplex gear pump pressure(mpa)	20	20	20	20
Rod Diameter /mm	0-400	0-400	0-400	0-400
Duplex gear pump displacement(ml/r)	40	40	40	40
Hydraulic system pressure(mpa)	20	20	20	20
Overall Machine weight /T	5.8	6.2	6.5	6.6
Rotation angle /°	NO	360	360	360
Diesel engine (kw)	80	80	80	80
Dimension(LXWXH)/mm	465021502700	465021502700	515021502700	615021502700
Track shoe (mm)	350	350	350	350
Walking motor total emissions(ml/n)	1575	1575	1575	1575
Walking motor rotation (r/min)	50	50	50	50

The photos

Excavator Mounted Hydraulic Vibro Hammer/Vibratory Sheet Pile Driver

Certifications

Excavator Mounted Hydraulic Vibro Hammer/Vibratory Sheet Pile Driver

Our Service

Excavator Mounted Hydraulic Vibro Hammer/Vibratory Sheet Pile Driver
