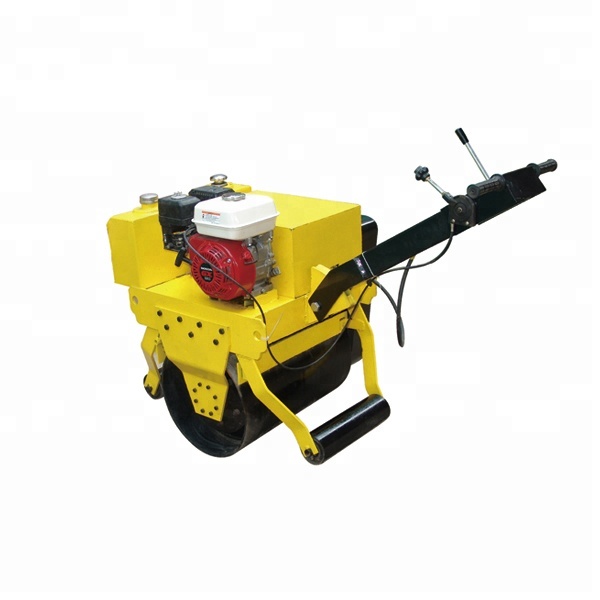

Mini Single Steel Wheel Road Rollers/Factory price ride on 1 ton compactor vibratory roller
Mini Single Steel Wheel Road Rollers/Factory price ride on 1 ton compactor vibratory roller skype:sunnylh3

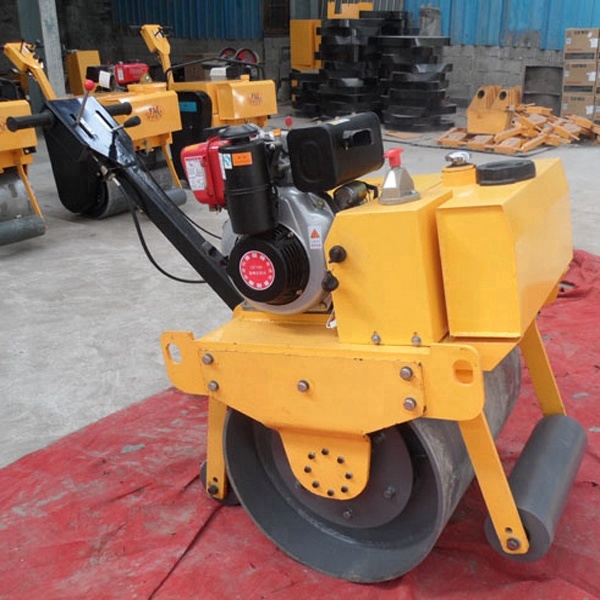

Single Drum Diesel Vibration Hand Roller
1).Operating radius is small, can work in a small area;
2).HONDA diesel international brands, brandname quality assurance,superior performance, easy start;
3).The use of international brandname SAUER hydraulic drive unit,variable speed
4).Handrails using plane gear adjusting mechanism, flexible, can adapt to different height workers to operate;
5). NSK Bearings by internationally renowned, MITSUBOSHI (Samsung) belt, to ensure that the work
performance of the machine;
6).Surface spray, beautiful appearance, rust corrosion;
7). This product has passed CE certification.
| Model | LHB | LHBC |
| Engine model | HONDA GX160 | Changchai |
| Engine type | Air-cooled,4-cycle,Gasoline engine | Diesel engine,air cooled, |
| 4stroke,OHV,vertical type,single cylinder | ||
| Max output (kw) | 5.5HP/3600rpm | 4.0HP/3600rpm |
| Fuel tank volume (L) | 3.6L | 2.5L |
| Fuel consumption (g/Kwh) | 313g/Kwh | 280.2g/Kwh |
| Water tank volume (L) | 15L | 15L |
| Vibration frequency(Hz) | 70Hz | 70Hz |
| Amplitude | 0.6mm | 0.6mm |
| Exciterd force (KN) | 13.5KN | 13.5KN |
| Speed (Km/h) | 0~2.8Km/h | 0~2.8Km/h |
| Climbing capacity | 30° | 30° |
| Width of steel wheel (mm) | 600mm | 600mm |
| Diameter of steel wheel (mm) | 450mm | 450mm |
| Total length (keep handrail level)/mm | 1420mm | 1420mm |
| Total width(mm) | 750mm | 750mm |
| Total height (keep handrail upright)/mm | 1100mm | 1100mm |
| Packing size (mm) | 1050x900x1200mm | 1050x900x1200mm |
| Drive system | Hydraulic pump and motor/Hydrostatic drive | Hydrostatic drive |
| Vibration system | Mechanical drive automatic centrifugal clutch | Mechanical drive automatic centrifugal clutch |
| Working weight (Kg) | 280Kg | 280Kg |
| Maximum working weight (Kg) | 295Kg | 295Kg |
