Home > Products > LHH ground hole Drilling Rig Drilling Bucket Bored Pile Earth Auger

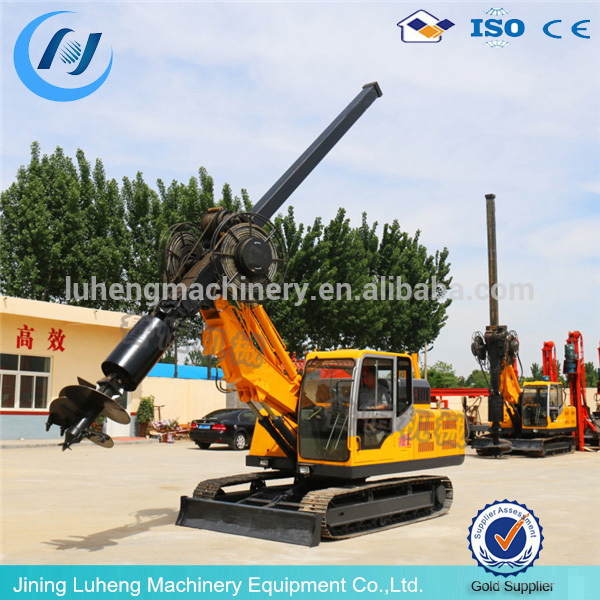

LHH ground hole Drilling Rig Drilling Bucket Bored Pile Earth Auger
Click on the image to view the original image
Product： views：8LHH ground hole Drilling Rig Drilling Bucket Bored Pile Earth Auger
Branch： HW
Size： 600X250X200 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:43
  Negotiated
Product Details
Overview
Quick Details
Piling Speed(m/min):
3m/min
Efficiency:
High Efficiency
After-sales Service Provided:
Video technical support
Warranty:
1 Year
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Weight:
19T
Dimension(L*W*H):
11400*2400*3300mm
Certification:
ISO
Engine power:
85KW/2200r/min
Maximum torque:
425N.M
Engine brand:
Changcai engine
Maximum pressure force:
90KN
Maximum lifting force:
100KN
Drilling diameter:
500-1200mm
Max drilling depth:
20m
Maximum travel speed:
3.6km/h
Working dimension:
5800*2400*1250mm
Transportation dimension:
11400*2400*3300mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
600X250X200 cm
Single gross weight:
6000.0 kg
Lead Time:
Quantity(Set)1 - 3>3
Est. Time(days)10To be negotiated
Product Description

Product Application

● Advanced mobile type, quick to transfer from transportation to working mode.
● High safety standard, satisfying dynamic and static stability requirements, ensuring safe working.
● Optimized luffing mechanism, working stable, easy to maintenance.
● Innovative drilling bucket depth measurement system, showing a higher accuracy than conventional pile driver.
● Bottoming protection and priority control function of main winch, making it easier to operate.
● Multi-stage of vibration-proof power head, ensuring it working more stable.
● Mast can adjust vertical property automatically, making it to drill more precise.
● Humanized cabin design, with large space.
● Secondary operating interface, more convenient using.
● Efficient energy-saving turbocharged water-cooled diesel engine.
● Excellent fuel system
● Advanced cooling system
● Intelligent Control System

SPECIFICATIONS FOR HAMMER PILE DRIVER





Engine
Rated Power
Kw
85KW/2200r/min
Maximum torque
N.M
425N.M
engine type
Turbocharged
Maximum lifting force
KN/m
100KN/m
Maximum lifting speed
m/min
45m/min
Inclination (left and right)
±4°
Inclination (Front and back)
5°





Hydraulic hammer Part
Drilling diameter
MM
500-1200
drilling depth
M
20
Maximum travel speed
3.6km/h
Maximum gradeability
30°
Maximum stroke
MM
2500mm
Transportation dimension
L*W*H
11400*2400*3300mm
Working dimension
Workshop Manufacture

              Welcome to visit our factory .


            You will get more from our factory.


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
5523 (L) * 2456 (W) * 1789 (D)
Weight
8T



Packaging Details


   The normal package is just like photos shown , if you have another requirement ,please tell me in advance ,we will packed as your need.
Packaging
Size
5523 (L) * 2456 (W) * 1789 (D)
Weight
8T



Packaging Details



The normal package is just like photos shown , if you have another requirement ,please tell me in advance ,we will packed as your need.
