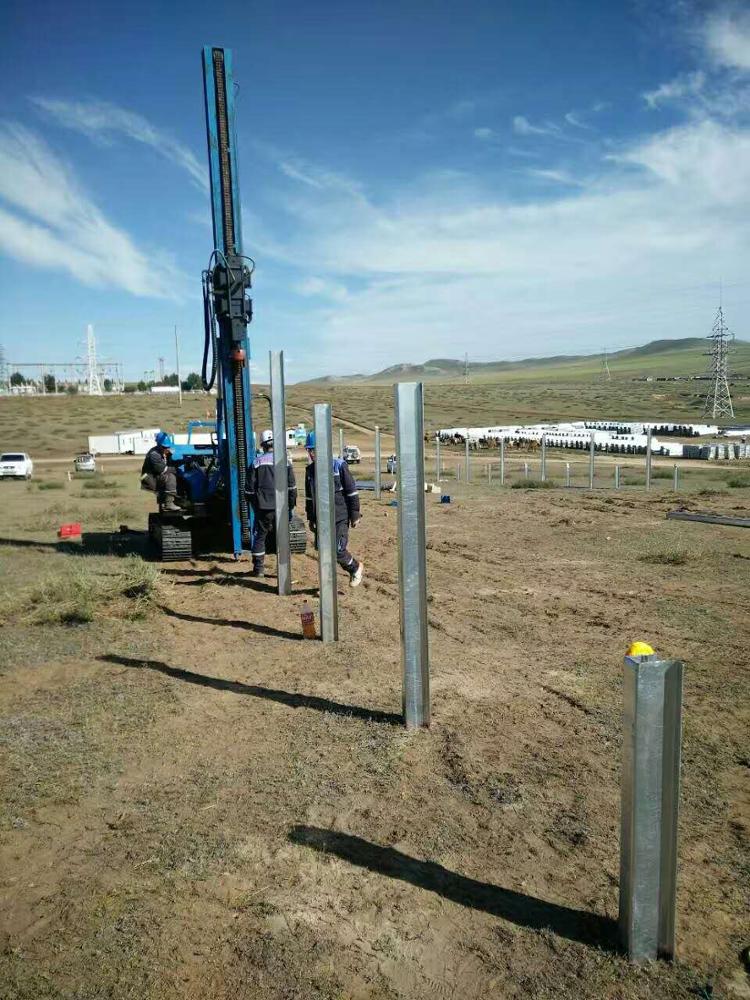

Engineer in Customer Working Site
1. we machine warranty is one year;
2. Free Spare Parts are available;
3. Engineers are available for site teaching and debugging;
4. Strong after-sales service, no worry about machine using and working;
Product Description
Product Application
1.HW crawler hydraulic drilling rig, using a new hydraulic technology, low consumption, large rotary torque,move the hole and shift the position is convenient.
2.The drilling rig structure is compact, it has a telescopic compensation function when promoting the slide carriage, the slide carriage supported on the ground when drilling, the drilling stability is very good.
3.The solar piling machine is mainly used for piling anchoring, well ,photovoltaic solar rotating pile and water conservancy, power plants, open-air mining, road construction and other stonework blast hole drilling and so on.
Advantages
1.the machine can 360 degree rotary , it is very convenient for working.
2.the working speed is fast, it only takes 90s can finish one pile.
3.our machine can work on the big gradient.
SPECIFICATIONS FOR HAMMER PILE DRIVER | ||||||
Model | HWLH600R | Remark | ||||
Hammer impact | 780J | Joule,we can make more powrful impact as your demand | ||||
Pile length | 0-6000 | mm | ||||
Duplex gear pump pressure | 20 | MPA | ||||
Duplex gear pump displacement | 40 | ml/r | ||||
Hydraulic system pressure | 20 | Mpa | ||||
Main valve flow | 120 | L/Min | ||||
Overall Machine weight | 6 | T | ||||
Diesel engine power | 84 | KW | ||||
Rated Speed | 2400 | R/min | ||||
Starting Voltage | 24 | V | ||||
Rotation angle | 360 | ° | ||||
Rotation semi diameter(rotating shaft to Pod distance) | 1925 | mm | ||||
Effective press pile stroke | 0-5000 | mm | ||||
Dimension(LXWXH) | 6200×2200×2850 | mm | ||||
Track shoe | 350 | mm | ||||
Walking motor total displacement | 1575 | ml/m | ||||
Walking motor rated pressure | 18 | Mpa | ||||
Walking motor output torque | 4300 | N.M | ||||
Walking motor rotate speed | 50 | r/min | ||||
Press Pile Diameter | 0-600 | mm | ||||
Drilling Depth | 0-6000 | mm | ||||
Operating Speed (m/min) | 1.5 | 90s/per pile | ||||
Number of impacts / strokes per 1 minute | 900 | times/min | ||||
Maximum lengh of Piles to be rammed | 6 | m | ||||
Walking speed | 5-10 | Km/hr | ||||
Gradeability | 0-35 | ° | ||||
Oil tank capacity | 200 | L | ||||
Hydraulic tank capacity (L) | 500 | L | ||||

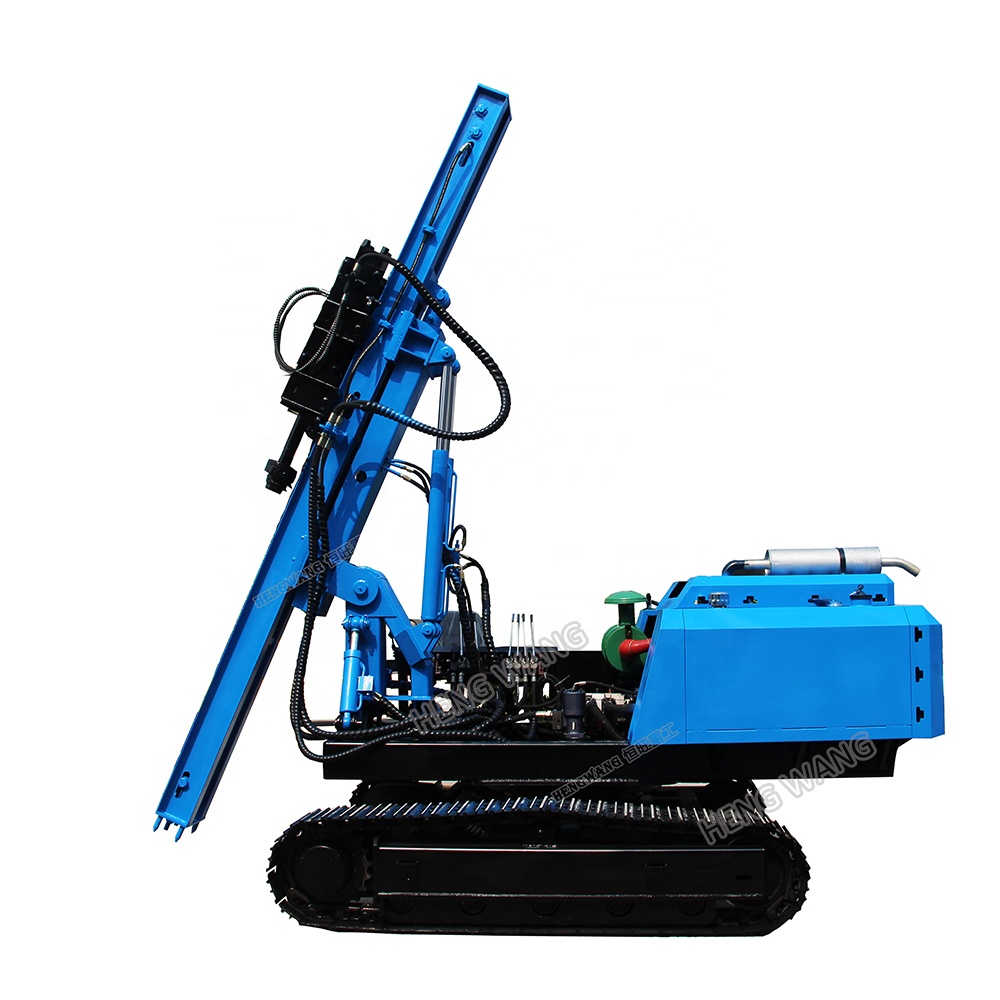

Detailed Images
Visiting
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 6200 (L) * 2200 (W) * 2850 (H) | |
Weight | 5.8T | |
Packaging Details | The normal package is just like photos shown , if you have another requirement ,please tell me in advance ,we will packed as your need. | |
Our Company
Working case
PILE DRIVER IN VIETNAM PILE DRIVER IN AUSTRALIA
Pile Driver Working in MyanmarSolar Ramming Project In Mountains
PILE DRIVER IN INDONESIA PILE DRIVER IN MONGOLIA
