D9 Pneumatic Tamper tamping rammer/sand rammer/air rammer/whatsapp:+8613678678206
Product Introduction
1. Air/Pneumatic rammer hammer tamper Appliance :
It is widely used in road construction, concrete and other hard objects demolition. It is featured by durable parts, good performance and easier operation, which is a classic products among breaking tools.
Tamping machine is a compressed air as the driving force of mechanized hand tools. Tamping suitable for medium sized castings, sand, and can also be used for operations such as concrete and brick.
The pneumatic tamper can be applied to tamping for small size sand-cast, and to the tamping of concrete adobe and bricks.
2. Air/Pneumatic rammer hammer
tamper Feature:
1. Applied to tamp sand mould
2. High quality and reasonable price
3. MOQ: 1set
Technology Parameters
Type | D3 | D4 | D6 | D9 |
weight | 2.5kg | 3.6kg | 6kg | 9kg |
operation pressure | 0.63 mpa | 0.63mpa | 0.63mpa | 0.63mpa |
air consumption | 0.25 l/s | 0.35l/s | 0.45l/s | 0.65l/s |
Diameter of piston | 17mm | 20mm | 25mm | 32mm |
Structure of travel
| 92mm | 128mm | 155mm | 207mm |
Diameter of hammer | 32mm | 36mm | 42mm | 54mm |
internal diameter of air pipe | 13mm | 13mm | 13mm | 13mm |
length | 410mm | 480mm | 975mm | 1180mm |

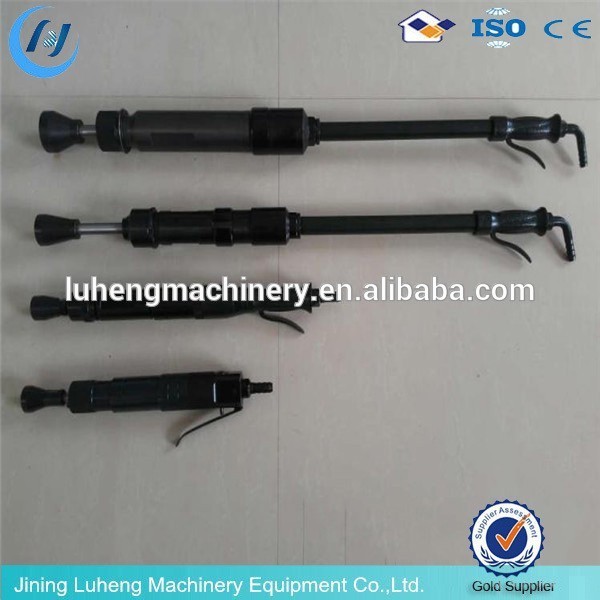

The real details photo
