Product Introduction
Introduction:
Mixing concrete pump is the newest products patented by our company, it is combined by the traditional concrete pump and the mixer together, it is the most suitable for use in four to six floor buildings,especially in the group buildings, bridges, and the spread of small construction sits where need the concrete mixer at the scene.
Technical features
Mixing and pumping into one, simple to operate, easy to move, flexible, and stable performance. The pump construction operation system used in all automated, all material mixing, high pressure pumping as one; Double cylinder hydraulic pumping system, hydraulic system greatly enhance the the stirring Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions.
Technology Parameters
| Item | Unit | Parameter | |
| Pump performance | Theoretical maximum flow rate | m³/h | 30 |
| max. theory delivery pressure | Mpa | 9 | |
| max. theory conveying height | m | 50 | |
| max. theory conveying distance | m | 140 | |
| Distribution valve | S valve | ||
| Transporting cylinder specification | mm | Φ180×1000 | |
| Main oil cylinder specification | mm | Φ100/Φ70×1000 | |
| Bucket capacity | L | 450 | |
| Discharging diameter | mm | Φ150 | |
| Inner diameter | mm | Φ125 | |
| Motor power | Kw | 37 | |
| Rated voltage | V | 380 | |
| Max. stirring speed | r/min | 24 | |
| Max. grain diameter | mm | 30 | |
| Mixer parameters | Mixing volume | m³/time | 0.5 |
| Stirring power | Kw | 5.5 Kw | |
| Lifting Motor Power | Kw | 5.5 Kw | |
| Voltage | V | 380 | |
| Size | mm | 4270×2350×2980 | |
| Weight | Kg | 3300 | |

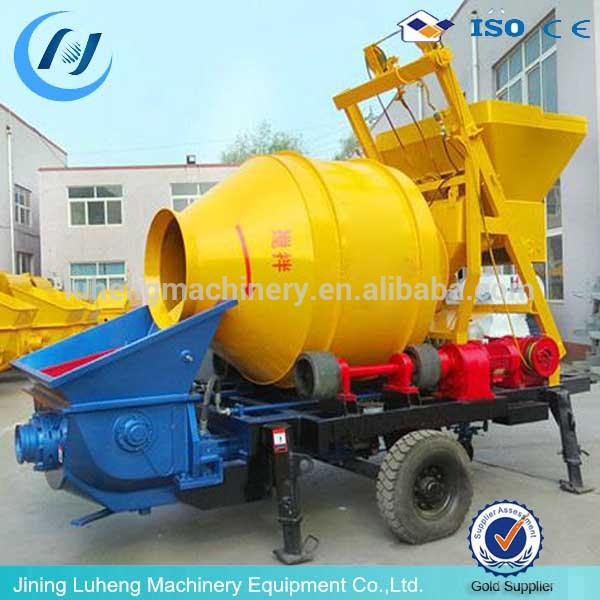

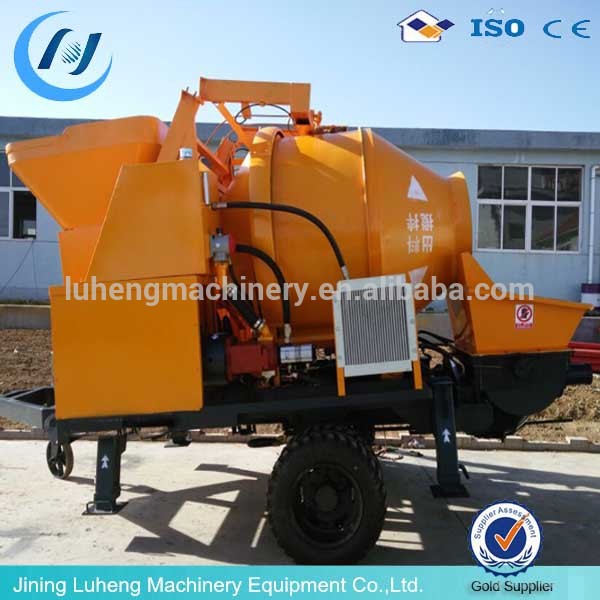

The real details photo
