30m depth Backpack Core Sample Drilling Rig for geological sampling
30m depth Backpack Core Sample Drilling Rig for geological sampling
Product Instruction e
Exploration---Geochemical exploration to shallow sampling probe veins
Geoscience Research
Geotechnical Enginerring
Engineering Investigation and Detection
Exploration of Oil Field
Others
Easy tacking
Complete sets of drilling rigs and other accessories loaded pack board, however, a portable drilling rig is equipped with a set of standards and its annex to the full weight of not more than 40 pounds (about 18kg).
Complete Equipment
All tools for drilling and collecting a variety of rock samples can be mounted on the pack board, and a normal male or female, can easier carry. In addition, the backpack still has adequate space to place the alternate fuel, drinking water and personal items.
Flexible Operation
Just rotating and sliding simply, without the additional tools. ,to connect or extend the entire devices .Both of dismantling and installation are easy. With the using of coring device, the core and chips can be taken out quickly and thoroughly.
Fast Drilling
The efficiency of drill through the rock level is unique, sharp incision of the special formula of diamond drill bit, saves time and effort, and to ensure the adequate service life.
Technology Parameters
| Max Drilling diameter(mm): | 100 | Max Drilling depth(m): | 30(Φ40mm) |
| Speed (r/min): | 400 | Power(kw): | 5.78(7.75hp) |
| Discharge Capacity(cc): | 173 | Cylinder Diameter(mm): | 70 |
| Stroke(mm): | 45 | Oil Consumption(L/h): | 0.39 |
| Max Torque(7ft.lbs): | 66.5 | Lubrication Capacity(L): | 0.6-0.65 |
| Main Engine Weight(kg): | 22 | Drill Pipe Weight(kg): | 1.1 |
| Water consumption(L/hr) : | 14.4 | Power Type: | Gasoline |

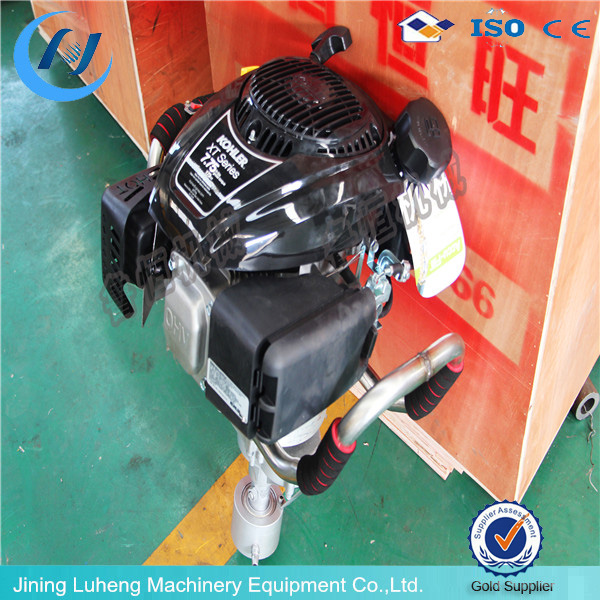

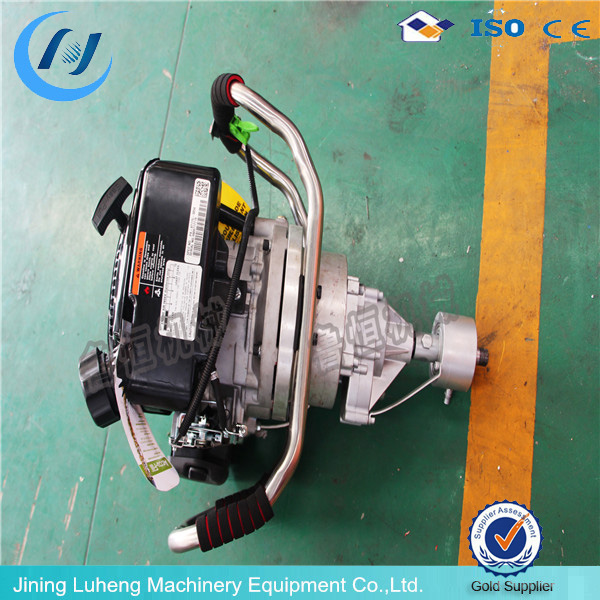

The real details photo
Good Cooperation
Transaction history
Quality Certificate
Transport and Shipping
welcome to visit our company webiste, Any question,pls contact Cici Yang
Skype : LH.Cici
QQ: 2908844178
Mobile:+8615965109869
Tel : 0086-0537-2582838
Jining Luheng Machinery Equipment Co., Ltd
