Home > Products > Gasoline compact vibrator plate /construction vibratory plate ram

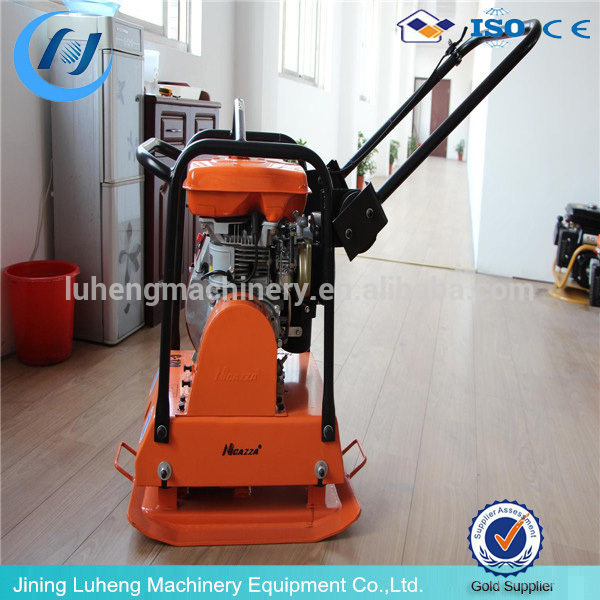

Gasoline compact vibrator plate /construction vibratory plate ram

Click on the image to view the original image

Product：	views：9Gasoline compact vibrator plate /construction vibratory plate ram
Branch：	LUHENG
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:44

Product Details

Overview

Quick Details

Power(W):: gasoline

Weight:: 65KG

Certification:: CE

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: LUHENG

Model Number:: LH

Voltage:: gasoline

Dimension(L*W*H):: 780*450*1265MM

Power Type::: Gasoline

Dimension(L*W*H)::: 780*450*1265MM

Weight::: 355KG

Max. speed (rpm)::: 3600

Speed (m/min)::: 20-23

Plate size (mm)::: L630 X W520

Centrifugal force (kn):: 50

Fuel tank (liter):: 5.5

Speed (m/min):: 22

Engine:: Air-cooled, 4-cycle, Gasoline

After-sales Service Provided:: Engineers available to service machinery overseas

Warranty:: 2 years

Supply Ability

Supply Ability:: 10000 Set/Sets per Year

Packaging & Delivery

Packaging Details: wooden case

Port: QINGDAO/Shanghai

Gasoline compact vibrator plate /construction vibratory plate ram

Product Introduction

Gasoline Reversible Vibrating Plate Ram Appliance :

² The unique design of electric start-up, even in the severe conditions remain strong and durable

² Diesel power system, more powerful force, better compaction effect

² The best choice for compaction of sand oil, back fill and asphalt

² Low vibration combined with high compaction performance

² Lifting hook ensure easy to delivery in different job site

² Handle hydraulic system for forward & reverse

Technology Parameters

Reversible Concrete Plate Compactor
Model	DRP-500	HRP-160
Weight (kg)	355	180
Dimension (mm)	L965 X W600 X H1370	L1000X W500 X H1200
Plate size (mm)	L600 X W890	L600 X W500
Centrifugal force (kn)	50	30
Working diameter rpm(hz)	4100 (69)	5500 (92)
Speed (m/min)	22	20-23
Engine	Air-cooled, 4-cycle, Gasoline	Air-cooled, 4-cycle, Gasoline
Type	Honda GX390 / Kipor KM186	Honda GX270 / Robin EX27
Max. output kw(hp)	9.6 (13) / 6.2 (8.5)	7.0 (9.0) / 6.6 (9.0)
Max. speed (rpm)	3600	3600
Fuel tank (liter)	5.5	6.1

Irreversible Concrete Plate Compactor
Model	DPC-120	DPC-90	DPC-80	DPC-70	DPC-60
Weight (kg)	115	96	93	89	65
Dimension (mm)	L1100X W520 X H950	L1100X W500 X H950	L1100X W500 X H950	L1100X W400 X H950	L1070X W350 X H880
Plate size (mm)	L630 X W520	L590 X W500	L590 X W500	L590 X W400	L535 X W350
Centrifugal force (kn)	20	20	15	10	10
Working diameter rpm(hz)	5500 (92)	5500 (92)	5500 (92)	5500 (92)	5800 (97)
Speed (m/min)	20-23
Engine	Air-cooled, 4-cycle, Gasoline
Type	Honda GX160 / Robin EX17
Max. output kw(hp)	4.0 (5.5) / 4.2 (5.7)
Max. speed (rpm)	3600
Fuel tank (liter)	3.6
