- Power(W):
- ,Gasoline Engine
- Travel Speed:
- 4000m/h
- Static Linear Pressure:
- 3.97KG/cm
- Condition:
- New
- Type:
- Double Drum Roller
- Grade Ability:
- 30%
- Place of Origin:
- Shandong, China
- Brand Name:
- LH
- Dimension(L*W*H):
- 2450*780*1100
- Weight:
- 530KG
- Certification:
- ISO
- name:
- two wheel road roller
- Vibration frequency:
- 75HZ
- Climbing Capacity:
- 30%
- Walk Speed:
- 4000m/h
- Exciting force:
- 30KN
- road roller:
- 450*600mm
- Fuel consumption:
- 313g/kwh
- Water tank:
- 30L
- Engine Model:
- HONDA or Chinese engine
- Power:
- 9HP(GX270)
- After-sales Service Provided:
- Engineers available to service machinery overseas
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 135X90X132 cm
- Single gross weight:
- 560.0 kg

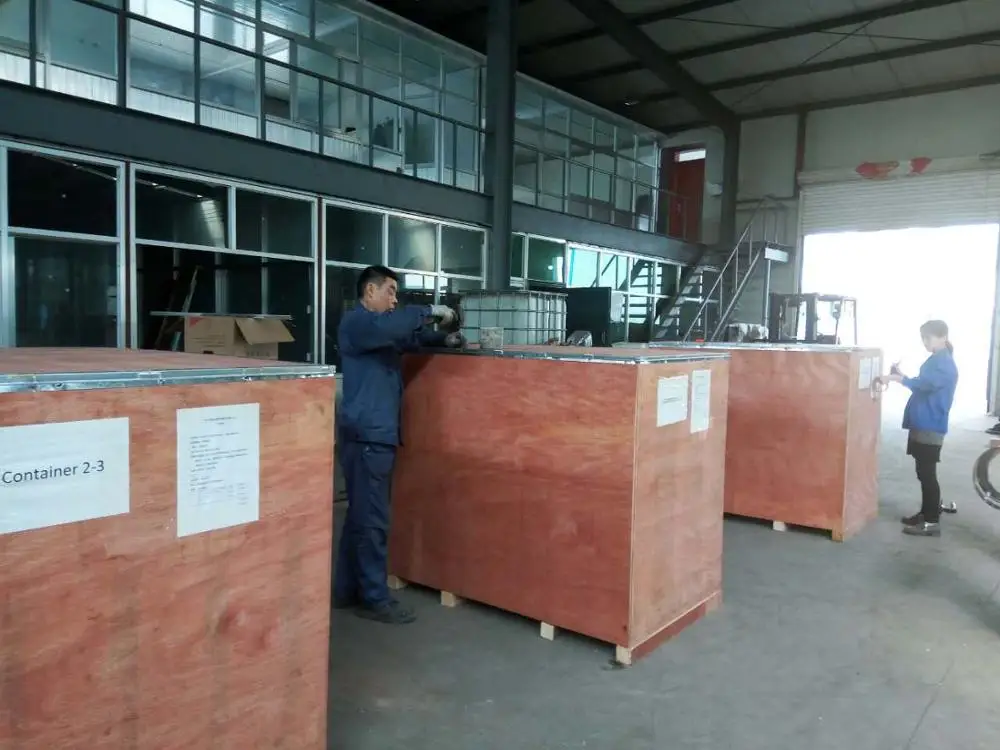

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 20 >20 Est. Time(days) 5 To be negotiated
Product Introduction

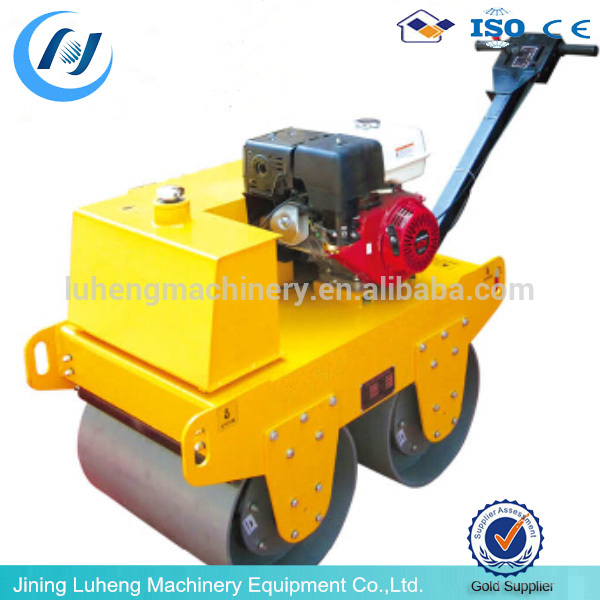

Walk Behind Double Drum Vibratory Road Roller
Walk Behind Double Drum Vibratory Road Roller
1).Operating radius is small, can work in a small area;
2).HONDA Petrol engine or famous diesel engine,international brands,quality assurance,superior performance, easy start;
3)The transmission mechanism of famous hydraulic drive system,and infinitely variable Vibratory speed,reversing is convenient,service life long.
4)Deisel power with electric startup,light and flexible.
5)Dual vibration mode and Dual drive, ensure whole compaction and climbing ability.
Technology Parameters
Model | HWLH-S600 | HWLH-S600B | HWLH-S635 | HWLH-S700A |
Power | 9HP(GX270) | 4.0KW(CF178F) | 5.0KW(CF180F) | 6HP (CF178F) |
Vibration Frequency | 75 HZ | 75 HZ | 75 HZ | 75 HZ |
Driving Mode | hydraulic Station | |||
No. of Roller/Size | 2-Φ450×600mm | 2-Φ450×600mm | 2-Φ350×635 | 2-Φ450×700 |
Excitation Force | 20 KN | 20 KN | 20 KN | 20KN |
Dimension | 2450x780x1100 | 2450x780x1050 | 2450x680x1800 | 1460X910X1230 |
Grade ability | 25% | 25% | 40% | 30% |
Weight | 520Kgs | 530Kgs | 780kgs | 760kgs |
The real details photo show
Quality Certificate
