Overview
Quick Details
- Design:
- Double/single/four cylinder
- Type:
- Double/single/four cylinder
- Certification:
- CE
- Lifting Capacity:
- 3.0T
- Place of Origin:
- Shandong, China
- Brand Name:
- LH
- Model Number:
- LH
- Warranty:
- 2 Years
- Runway length:
- 1580-1900mm
- Lifting Time:
- <60s
- Product name:
- Car Elevator
- Motor Power:
- 2.2KW
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 120X132X160 cm
- Single gross weight:
- 300.0 kg
- Lead Time:
Quantity(Set) 1 - 10 >10 Est. Time(days) 5 To be negotiated
Factory

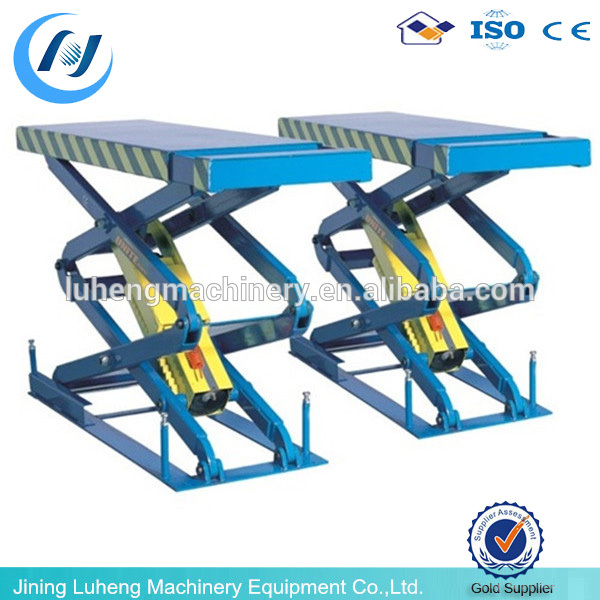

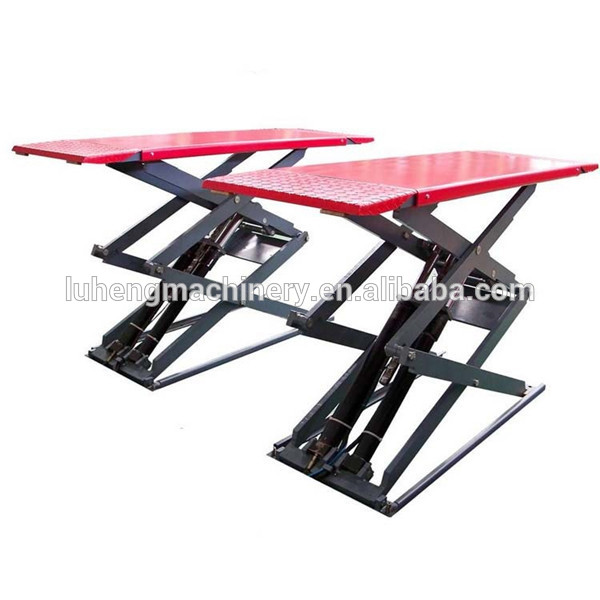

Product Description
Product Application
1. Rigid connection between two platform ensures synchronization.
2. Surface mounted only 115mm to ground when installed.
3. All the motor pumps and seal kits of cylinder are import from Italy.
4. All the hydraulic cylinders are import from TaiWan.
5. Inside of cylinder assy has the special treatment and make sure that is doesn’t leak oil.
6. 24v control system and limited switch.
7. While switch addeddary, it is controlled long distantly.
Item | LH-3.5 | LH-3.0 |
Capacity | 3.5T | 3.0T |
Max lifting height | 1850mm | 2130mm |
Runway length | 4200mm | 1750mm |
Runway width | 620mm | 570mm |
Minumum height | 330mm | 330mm |
Power | 380V/2.5KW | 380V/2.2KW |





Our Service


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
