- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Model Number:
- HW18
- Power Source:
- eletric
- Drill Type:
- drill bit, Core Drill
- Voltage:
- 220v
- Dimensions:
- 80*90*80
- Weight:
- 25kg
- Rated Voltage:
- 110V/220V/240V
- Frequency:
- 50-60Hz
- No-Load Speed:
- 0-700r/min
- Max. Drilling Diameter:
- 150mm
- warranty:
- 1 year
- Color:
- As the Picture
- Packing:
- carton box
- Rotated speed:
- 200 - 1000r/min
- Name:
- Diamond Core Drill Machine
- Supply Ability:
- 1000 Set/Sets per Month Diamond Core Drill Machine
- Packaging Details
- Wooden case Diamond Core Drill Machine
- Port
- Qingdao
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 3 To be negotiated

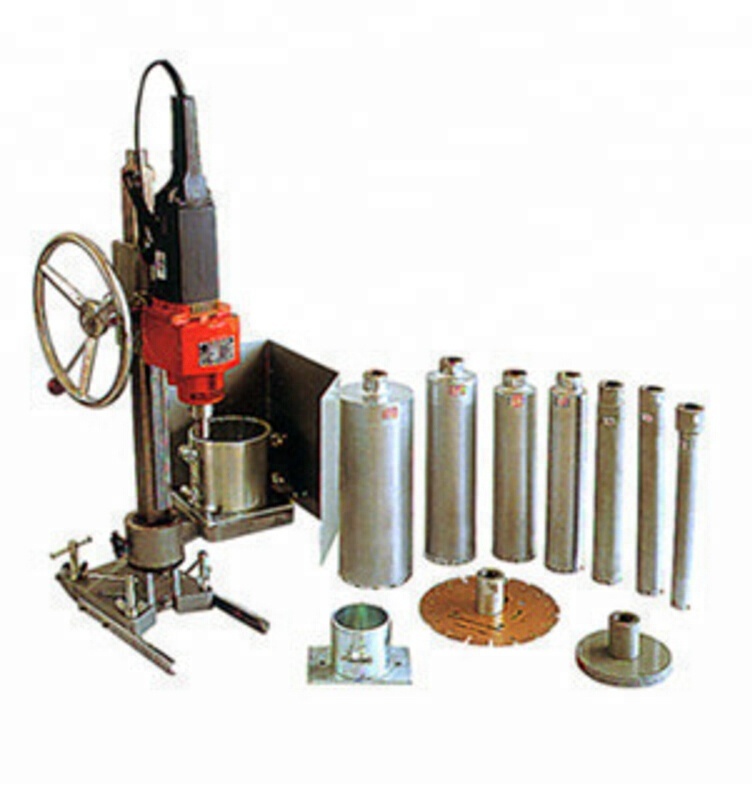

professional portable reinforcement concrete wall diamond core drill machine/core cutting machine
Product Introduction
Diamonc core drills for reinforced concrete wall, floor, cement. We have different sizes, from dia 5mm to 505mm and different stands, vertical steel stand, angle adjustable steel stand, angle adjustable aluminum stand, angle adjustable aluminum vacuum base stand.
Magnetic drills for take hole or twist or tapping on steel sheet.
Concrete wall cutter/saw for cut reinforced concrete wall and floor, slab and beam, roadway, etc.
Technology Parameters
Features
1) For core drilling in walls, floors, roofs and road surface, up to 300mm.
2) Suitable for various materials such as reinforced concrete. Brick and other construction materials.
3) For deep hole drilling, plumbing, electrical installation etc
4) Different drilling speed version for appropriate situations.
5) Electric leakage protection.
6) Low noise, vibration, power consumption.
7) Available for dry bit drilling.
8) Replaceable stand options can provide further functions, such as angle and stitch drilling
Specifications
| Model No | LH300 |
| Max drilling diameter | 300mm (concrete) |
| Rated input power | 2450w |
| Rated voltage | 110v/220v/230v/240v |
| Rated frequency | 50Hz/60Hz |
| No-load speed | 480rpm/900rpm |
| Accessory | 1pcs water loop 1pcs 32-36 spanner 1pcs 22-24 spanner 1pcs PRCD(portable residual current protective device) |

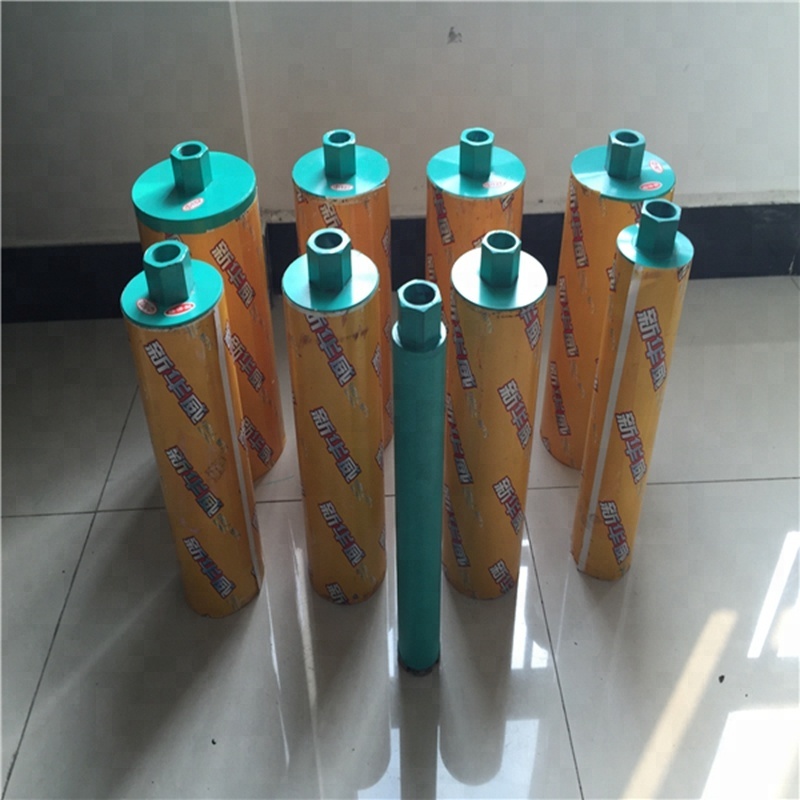

The real details photo
