Home > Products > mini cement mortar spraying/plaster paint machine plaster machine

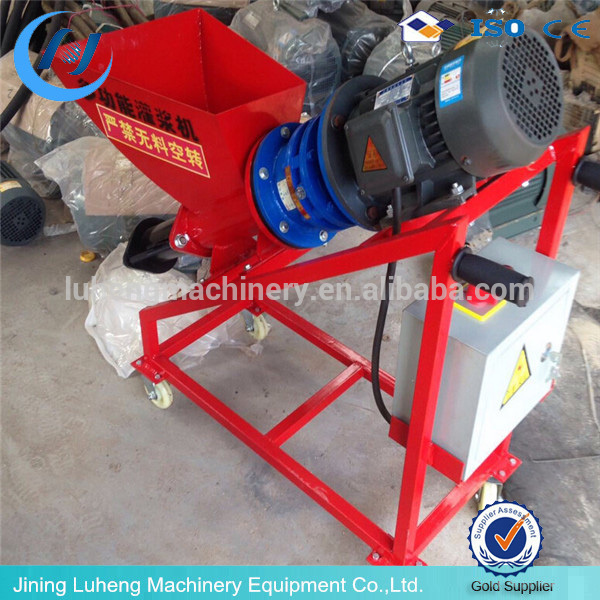

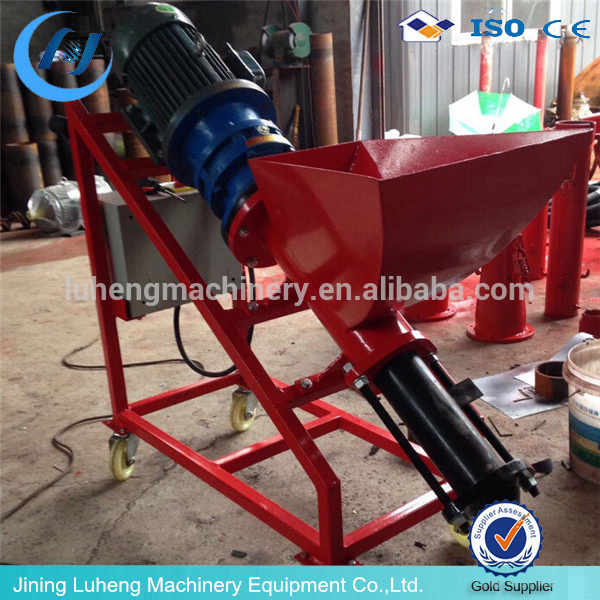

mini cement mortar spraying/plaster paint machine plaster machine
Click on the image to view the original image
Product: views:9mini cement mortar spraying/plaster paint machine plaster machine
Branch: HW
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 19:44
  Negotiated
Product Details
Overview
Quick Details
Weight:
60kg
Dimension(L*W*H):
115*57*112 cm
Condition:
New
Application:
Plastering
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW760
Certification:
ISO9001
Name:
mortar spraying machine
Power:
1.KW*220V / 1.5KW*380V
Frequency:
50HZ
Electricity Phase:
Single Phase/ Three Phas
Flux:
6 L/Min
Length of Standard Equipped Hose:
15m
Spraying Thickness:
1mm-3mm
Vertical Spraying:
5-15m
Horizontal Spraying:
20m
Meas:
115*57*112 cm
After-sales Service Provided:
Overseas third-party support available
Warranty:
12 Months
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden case
Port
Qingdao/Shanghai
Product Description

mini cement mortar spraying/plaster paint machine plaster machine

Product Application

cement grouting machine combined with rich experience in the field of cement grouting, in the R - screw pump core WRT patent coating technology, increased the stable performance of single-phase electric power unit, its superior mechanical performance, reliability, better value, higher construction efficiency, grouting is more efficient
Scope of application:
1, concrete buildings, railway tunnel, road Bridges, culverts, urban subway, hydropower station, the dam slope harbour engineering such as crack, construction joint, expansion joint grouting waterproof and anchor grouting, the grouting solidarity, backfill grouting and curtain grouting, soft rock reinforcement, honeycomb structure, soil cement grouting or composite grouting engineering, etc.
2, building metope waterproof coating, cement mortar spraying, dry mortar coating, putty powder coating, coating, really stone paint spraying, rockery, sculpture handicraft can engineering and so on.

The construction technology:
Please debug the machine before construction, can be Rubor professional lubricants, R - 11 and the ratio of water: "mix into the hopper, and then start the equipment keep running for 1 minute, in order to achieve the result of debugging and wet pipe, then smooth water dry, grouting can be achieved

SPECIFICATIONS
Power
Frequency1.KW*220V / 1.5KW*380V
Frequency
50HZ
Electricity Phase
Single Phase/ Three Phase
Net Weight
60KGS
RPM
600 R/Min
Flux
6 L/Min
Equipped Standard Nozzle Diameter
4mm, 6mm, 8mm
Applied Max Nozzle Diameter
8mm
Aggregate Size
≥80 Mesh (dia. less than 1MM )
Resistance Strength of High-Pressure Hose
≥800 bar
Length of Standard Equipped Hose
15M
Spraying Thickness
1mm-3mm
Vertical Spraying*
5-15M
Horizontal Spraying*
20M
Tank Capacity
25L
Productivity
800-1500 sqm/day
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
