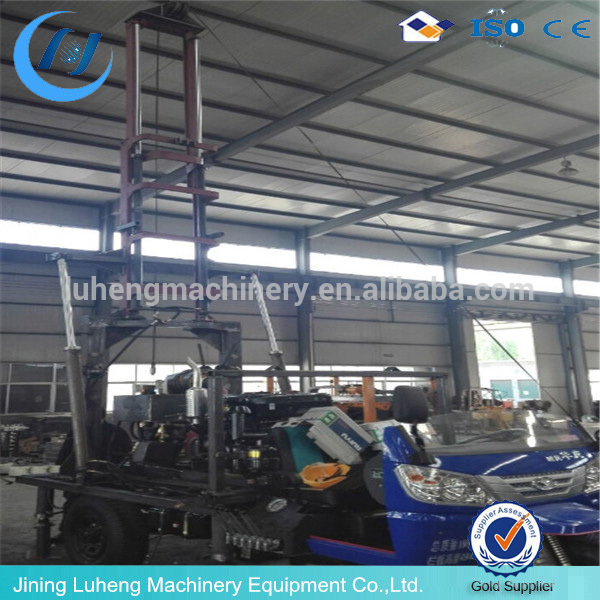

High efficiency water well drilling rig used in farmland

Click on the image to view the original image

Product：	views：8High efficiency water well drilling rig used in farmland
Branch：	Luheng
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:44

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: Luheng

Model Number:: HW200

Usage:: Water Well

Voltage:: 220V/380V

Power(W):: 22kw

Dimension(L*W*H):: 2750*950*1600mm

Weight:: 1600Kg

Certification:: ISO9001

Name:: tricycle drilling rig

Drilling depth:: 10-200m

Maximum borehole caliber:: 400mm

End hole caliber:: 75mm

Diameter of drill rod:: 50mm

Drilling angle:: 90~75

Diesel engine:: 22HP, 2200r/min

Weight(not include power):: 810kg

Dimension:: 2750*950*1600mm

Mud pump:: BW160

Warranty:: 12 Months

After-sales Service Provided:: Overseas third-party support available

Supply Ability

Supply Ability:: 1000 Set/Sets per Year

Packaging & Delivery

Packaging Details: as your requirment

Port: Qingdao/Shanghai

Product Description

Product Application

HW-200 Self Movable Water Drilling Rig Machine Price Cheap is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc. It saves time to install and dismantle drill tower, solving the problem of high failure rate of integrated drill tower, etc, achieving excellent feedback from customers.

Fetures:

1. Electric start diesel engine 22HP, electric motor is optional.
2. BW-160 mud pump
3. Full hydraulic drill tower, four hydraulic standing legs
4. Diamond drilling, suitable for soil, sand, gravel, rock, etc.

SPECIFICATIONS
Drilling depth		200m
Maximum open hole caliber		400mm
End hole caliber		75mm
Diameter of drill rod		50mm
Drilling angle		90~75
Weight(not include power)		810kg
Dimension		27509501600mm
2. Vertical shaft
Rotating speed		71,142, ,310,,620r/min
Feeding stroke		450mm
3.Hoist
Max. single line hoisting capacity		1600Kg
Diameter of wire rope		12mm
4.Mud pump
Type		Horizontal single urn twin-action
Rate of flow		160L/min
MAX. pressure		1.5MPa
Working pressure		0.75MPa
Diameter ofwater inlet tube		50mm
Diameter ofwater outlet tube		45mm
5.Power
Diesel engine		22HP, 2200r/min
