Jining Luheng Machinery Equipment Co., Ltd.

Model

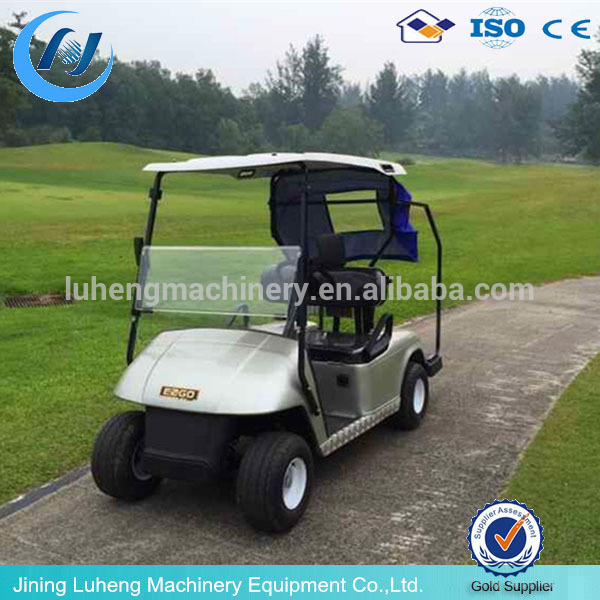

LH Golf Car

Motor

48 volt DC high efficiency separated model, brazed armature, solid copper windings. 3kw

Battery

Six, 8 volt heavy-duty, deep cycle (145Ah)

Controller

400 Amp capacity CURTIS 1244--5451 solid-state speed controller:

Charger

Fully automatic high efficiency pulse, 25 Amp DC output at 48 volts; input AC 220 volts, 50HZ

Chassis

Welded tubular steel with rust-proof powder coat paint

Body

High impact fibre glass body

Rear axle

American DANA rear axle ,12.44:1 ratio

Brakes

Dual rear wheel mechanical self-adjusting drum brakes.  Automatic park brake release with self-compensating system

Suspension

Independent front wheel suspension, with two coil spring/shock absorber

Steering

Single reduction rack and pinion

Dash panel

With On/Off switch, Battery capacity indicator, Forward/Reserve switch

Max. speed (km/h)

24 km/h

Max Continuous Mileage

70km

Braking Distance

≤3.5 m

Climbing capacity

30%

The Loudest noise

50 dB

Overall weight

570 kg(with batteries)

L*W*H (mm)

2830×1220×1900 mm

Axle Distance

1620 mm

Front wheel distance

870mm

Rear wheel distance

980mm

Turning Radius

3.5m

Load capacity

320kg

Standard Accessories

Windshield, Sun canopy, Clothes basket, Double golf bag holder, Footboard and armrest for caddie, F/R crash pad

Optional Accessories

All-weather enclosure, Rear view mirrors, headlights, Rain shelter for ball sleeve, horn, Sand rake and fixer, Foldable windshield
