Overview
Quick Details
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- air leg
- Place of Origin:
- Shandong, China
- Brand Name:
- LH
- Usage:
- air leg rock drill
- Voltage:
- air
- Dimension(L*W*H):
- 659*248*205mm
- Weight:
- 29KG for net weight
- Certification:
- ISO
- Warranty:
- 2 year
- After-sales Service Provided:
- Video technical support
- name:

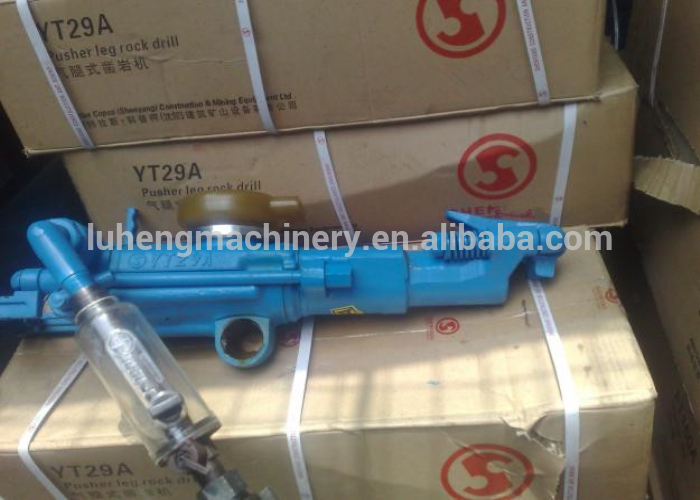

- yt29a air leg pneumatic rock drill
- Physical size:
- 659*248*205mm
- Cylinder Diameter:
- 82mm
- Piston Structure Stroke:
- 60mm
- Working Pressure0.63:
- 0.63MPA
- Impact Energy:
- 78J
- Rock drill depth:
- 5m
- Shank size:
- H22*108±1mm
- Air pipe inner dia:
- 25mm
- Water pipe inner dia:
- 13mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 70X20X30 cm
- Single gross weight:
- 50.0 kg
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 100 >100 Est. Time(days) 10 To be negotiated
