1000 feet depth optional ground water well drilling rigs and water well drilling machine - LUHENG

Click on the image to view the original image

Product：	views：71000 feet depth optional ground water well drilling rigs and water well drilling machine - LUHENG
Branch：	LUHENG
Type：	hydraulic drilling rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:44

Product Details

Overview

Quick Details

Condition:: New

Type:: hydraulic drilling rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: LUHENG

Model Number:: LH

Usage:: Water Well

Voltage:: 220V/380V

Power(W):: 160KW

Dimension(L*W*H):: 2500-900*1800 mm

Weight:: 1600 kg

Certification:: CE ISO SGS

drilling depth:: 600 m

maximum open hole caliber:: 300 mm

end hole caliber:: 75 mm

drill rod caliber:: 60 mm

spindle speed:: forward 30-1050 r/min,reverse 29-137 r/min

spindle stroke:: 600 mm

max.single line lifting capacity:: 4000 kg

wirerope caliber:: 12.5 mm

wirerope lenght:: 50 m

reel diameter:: 300 mm

Warranty:: 1 year

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 1000 Set/Sets per Week water well drilling rig

Packaging & Delivery

Packaging Details: wooden case

Port: QINGDAO

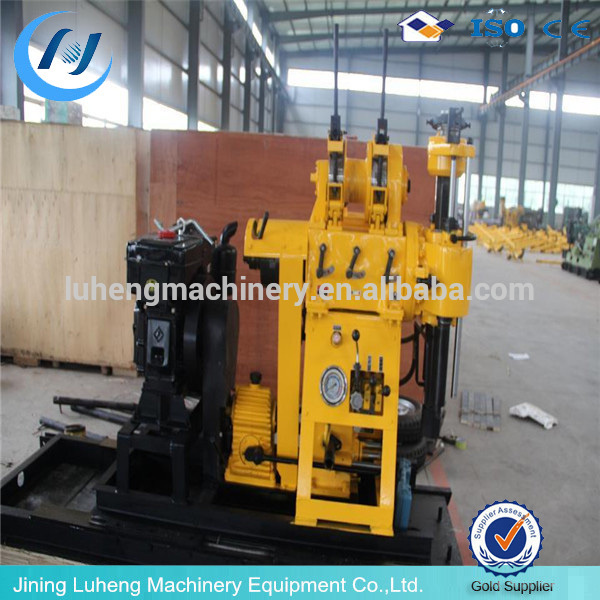

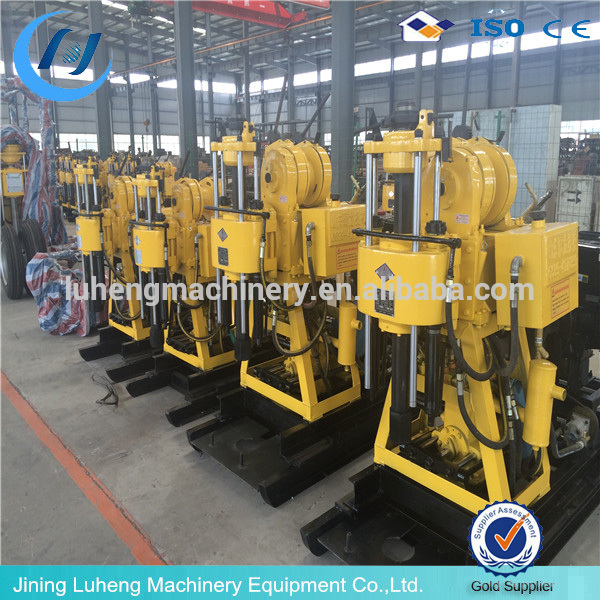

1000 feet depth optional ground water well drilling rigs and water well drilling machine

1000 feet depth optional ground water well drilling rigs and water well drilling machine - LUHENG1000 feet depth optional ground water well drilling rigs and water well drilling machine - LUHENG

Product Features

1.XY-3 drilling rig adopts CG140 model auto tranmission,has 10 rotation speeds and reasonable speed range,with eight forward rotation gears and two reverse rotation gears,high speed,strong stroke and wide scope of application.

2.Large engine power and two reverse rotation gears,can easily solve the drilling work accident.
3.The Operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.
4.Equipped with normally closed hydraulic chuck,operation is flexible and reliable
5.Spindle and hoist can be operated separately.
6.Spindle has big inner diameter,able to use big hexagonal drilling rod.

Technology Parameters

Model	XY-3
Drilling depth	600m
Maximum open hole caliber	300mm
End hole caliber	75mm
Drill rod caliber	60mm
Drilling angle	90~65°
Drilling rig weight (without power)	1600kg
Unity machine dimensions	2.50.91.8m
Spindle
Spindle speed	Forward 30-1050 r/min
Spindle speed	Reverse 29-137r/min
Spindle stroke	600mm
Spindle iinner diameter	96mm
Lifting capacity	6000kg
Hoist
Max. Lifting capacity with single rope	4000kg
Lifting speed with single rope	0.5-1.9m/s
Wirerope caliber	12.5mm
Wirerope cubic measure	50mm
Reel diameter	300mm
Hug folldgate belt width	90mm
Mud pump
Type	BW-250
Displacement (with diesel engine/electric motor)	250L/min
Work pressure	80KG/CM3
Water inlet pipe diameter	75mm
Water outlet pipe diameter	50mm
Power
Diesle engine	4105 76HP
Electric motor	Y180L-4 59KW
